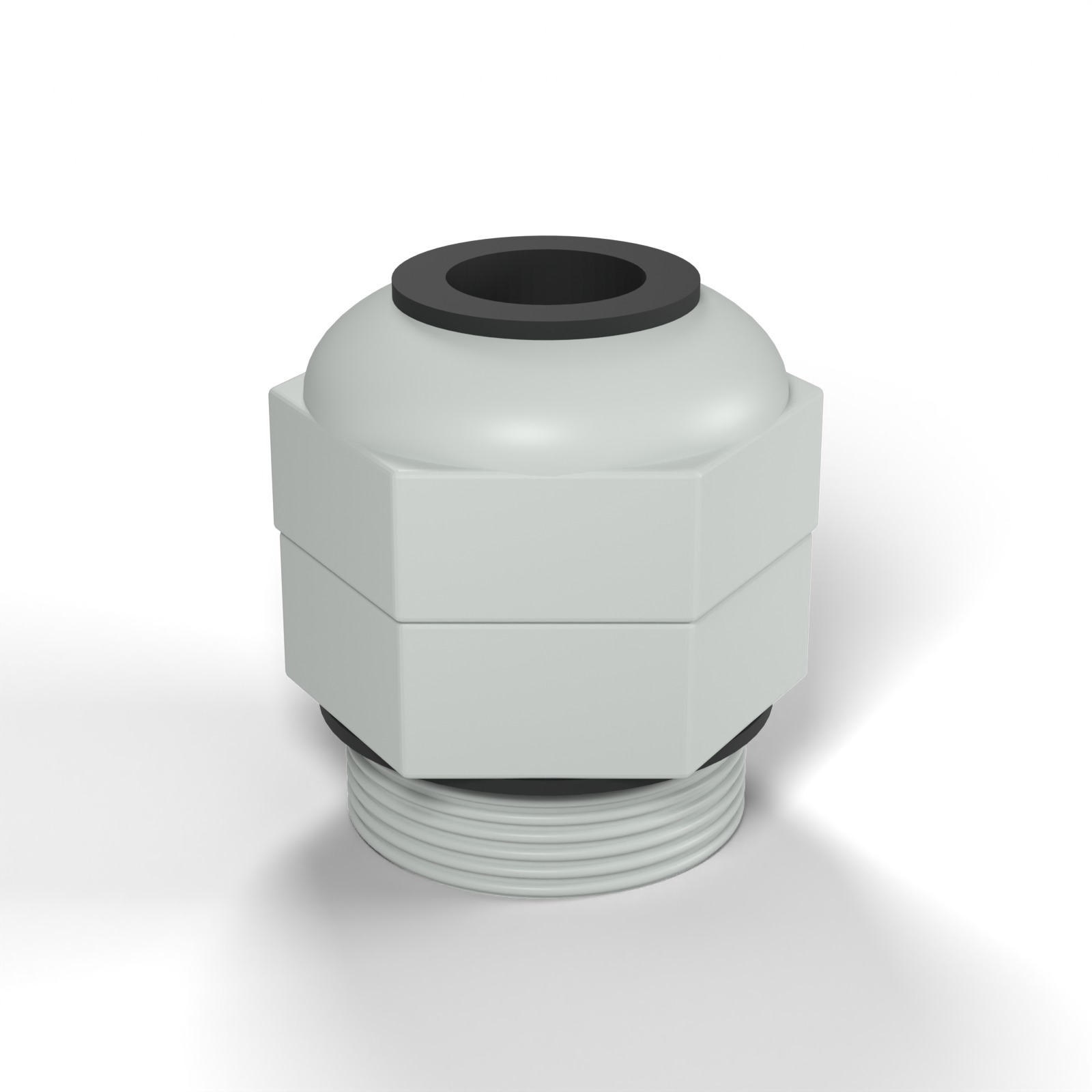

Illustration - our own render; see the datasheet for exact details.
Rittal 2411.641 Polyamide Cable Gland M32 x 1.5, 15-21 mm Cable, for AX Enclosures, Pack of 15
- Brand:
- Rittal
- Part number:
- 2411.641
- EAN:
- 4028177809963
Polyamide cable gland with an M32 x 1.5 thread for cables 15 to 21 mm in diameter, rated IP 68 and supplied in a pack of 15. Rittal part number 2411.641.
- M32 x 1.5 thread, 10 mm long
- For cable diameters 15-21 mm
- IP 68 (5 bar, 30 min)
- Polyamide 6 with CR/NBR seal, RAL 7035
- Pack of 15
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP68 |
|---|
Dimensions
| Weight | 0.48 kg |
|---|---|
| Thread size | M32 |
| Cable diameter | 12-20 mm, 20-30 mm |
| Min cable diameter | 15 mm |
| Max cable diameter | 21 mm |
Construction
| Colour | RAL 7035 |
|---|---|
| Material | Plastic |
Fit
| Fits enclosure family | Rittal AX sheet steel, Rittal AX stainless steel, Rittal AX GRP |
|---|
What's supplied
| Pack quantity | Pack of 15 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2411.641 |
| EAN | 4028177809963 |
| Range | Rittal AX |
| Type | Cable gland |
More technical data
| Thread | M32 x 1.5, 10 mm long |
|---|---|
| Cable diameter | 15 to 21 mm |
| Width across flats | 36 mm |
| Torque | 12 Nm |
| Material | polyamide 6, seal CR/NBR |
| Operating temperature | -30 °C to +100 °C |
Product details
The Rittal 2411.641 is a polyamide cable gland with an M32 x 1.5 thread for cables 15 to 21 mm in diameter, supplied in a pack of 15. It seals the cable where it passes through an enclosure wall or gland plate.
Key features
- M32 x 1.5 thread, 10 mm long
- For cable diameters 15 to 21 mm
- Polyamide 6 with CR/NBR seal, RAL 7035
- IP 68 (5 bar, 30 min)
Typical applications
The M32 size suits power feeds and larger multicore cables. Polyamide is a light, non-metallic choice for sheet steel, stainless steel and GRP enclosures alike. For a metal gland, or temperatures down to -40 °C, choose the nickel-plated brass version with the same thread, Rittal 2411.841.
Compliance
IP 68 to IEC 60529 (5 bar, 30 min) and UL 50E Type 1, 4, 4X, 12 and 13. Ratings assume a cable within the stated diameter range and correct installation.
What it fits: Rittal lists it as an accessory for 73 AX compact enclosures: 39 sheet steel, 20 stainless steel and 14 GRP. It needs an M32 x 1.5 entry, such as an M32 knockout in an AX gland plate; check the 10 mm thread length against the wall or plate thickness.
Add a pack to your cart, or ask us about project quantities.
