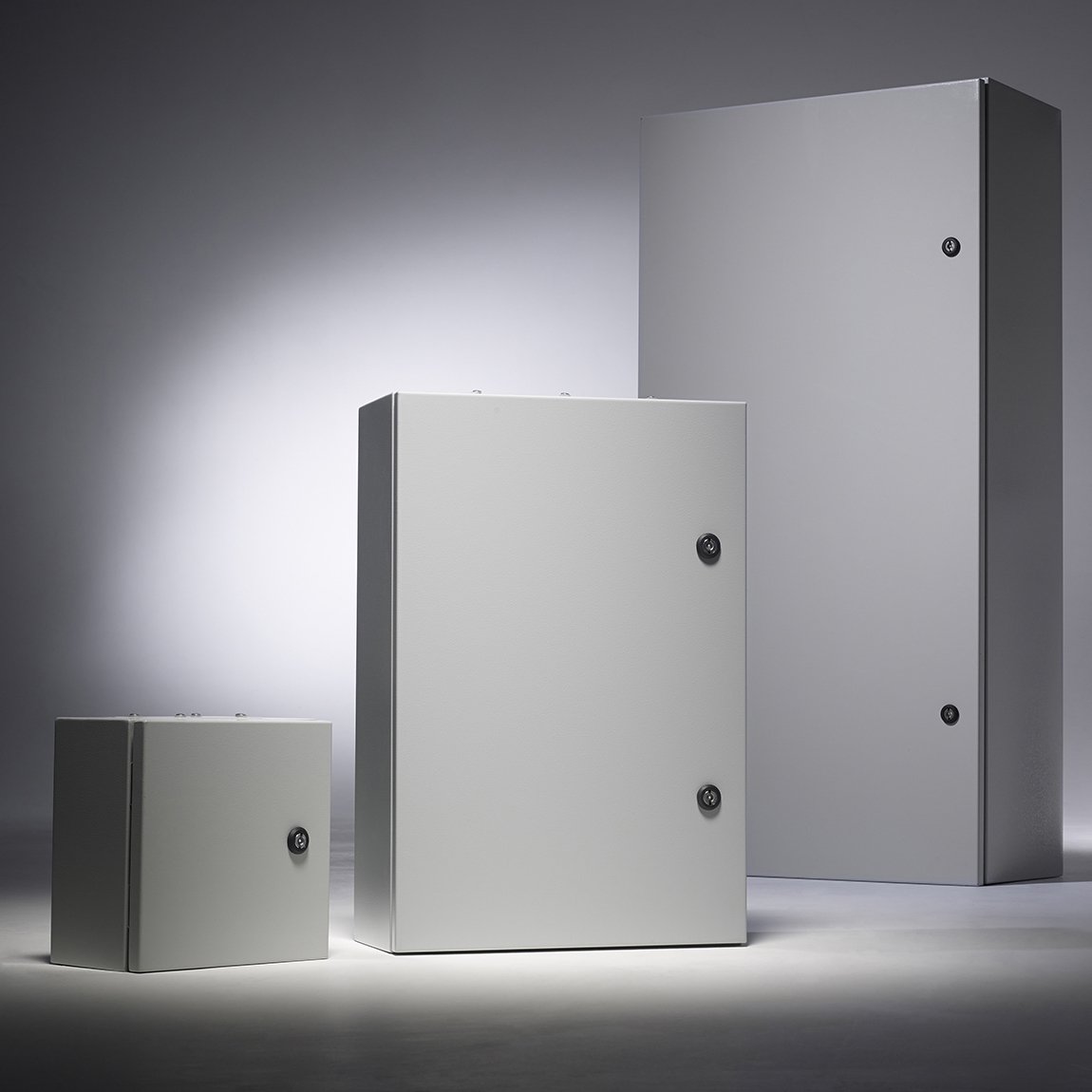

Illustration - our own render; see the datasheet for exact details.
Rittal AX 1077.000 Sheet Steel Compact Enclosure 760 x 760 x 210 mm, IP66
- Brand:
- Rittal
- Part number:
- 1077.000
- EAN:
- 4028177813359
Square IP66 sheet steel wall enclosure, 760 x 760 x 210 mm, with a 705 x 735 mm mounting plate, two gland plates and two cam locks. Rittal part number 1077.000.
- 760 x 760 x 210 mm sheet steel, RAL 7035
- IP66, IK10, UL 50E Type 4
- 705 x 735 mm zinc-plated mounting plate
- Single door, 2 cam locks
- 2 gland plates in base, size 2
6 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|---|
| Impact rating (IK) | IK10 |
| NEMA rating | NEMA 4 |
Dimensions
| Size (W x H x D) | W 760 x H 760 x D 210 mm |
|---|---|
| Mounting plate (W x H) | 705 x 735 mm |
| Weight | 35 kg |
| Rittal gland plate size | Size 2 |
Construction
| Enclosure material | Sheet steel |
|---|---|
| Door / lid | Plain door |
| Doors | Single door |
| Colour | RAL 7035 |
| Lock | Cam lock with 3 mm double-bit insert |
| Number of locks | 2 |
| Hinge can be swapped | Yes |
| Material thickness | 1.5 mm |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|---|
| Gland plates supplied | 2 |
Identification
| Brand | Rittal |
|---|---|
| Part number | 1077.000 |
| EAN | 4028177813359 |
| Range | Rittal AX |
More technical data
| Mounting plate (W x H) | 705 x 735 mm, 2.5 mm, zinc-plated |
|---|---|
| Material | sheet steel; enclosure 1.5 mm, door 2 mm |
| Finish | dipcoat primed, powder-coated outside, textured, RAL 7035 |
| Doors | 1; interchangeable door hinge |
| Locks | 2 x cam, 3 mm double-bit insert |
| Gland plates | 2 x size 2, in enclosure base |
| Protection | IP66, IK10 |
| Weight | 36.7 kg |
| Supply includes | door, mounting plate, gland plates in base, perforated door strip, locks with 3 mm double-bit inserts |
Product details
The Rittal AX 1077.000 is a square 760 x 760 x 210 mm (W x H x D) IP66 sheet steel compact enclosure with a 705 x 735 mm mounting plate, a single door on two cam locks and two gland plates in the base.
Key features
- Single door closing on two cam locks with 3 mm double-bit inserts; interchangeable hinge lets the door open from either side
- 705 x 735 mm zinc-plated mounting plate (2.5 mm), roughly 0.52 m² of build area
- Cable entry through two size 2 gland plates in the enclosure base
- 1.5 mm steel body, 2 mm door with an all-round foamed-in PU door seal; IP66 and IK10
- Large square plate in a slim 210 mm depth
Typical applications
Distribution boards and control panels with long rows of DIN-rail equipment, lighting control and building management panels, and marshalling where many cables enter from below. Allow room in front for the single door to swing open. For deeper equipment, 1073.000 is the same face at 300 mm deep. For washdown, coastal or chemical sites, step up to AX stainless steel or GRP.
Compliance
IP66 to IEC 60529: dust-tight and protected against powerful water jets. UL 50E Type 1, 3R, 4 and 12 (NEMA 1, 3R, 4, 12). Use glands rated at least as high to keep the rating.
