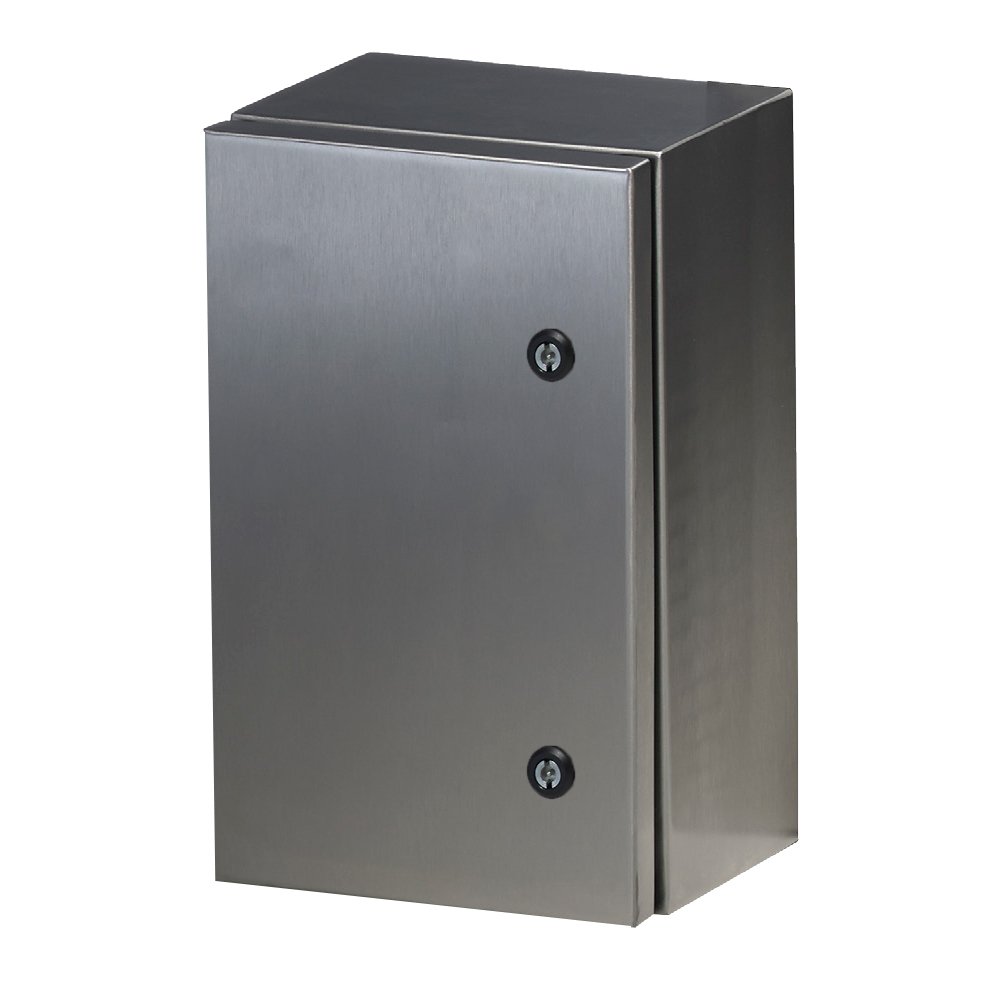

Illustration - our own render; see the datasheet for exact details.
Rittal AX 1302.000 Stainless Steel 316L Compact Enclosure 300 x 380 x 210 mm, IP66
- Brand:
- Rittal
- Part number:
- 1302.000
- EAN:
- 4028177815070
Compact enclosure in brushed 1.4404 (AISI 316L) stainless steel, 300 x 380 x 210 mm, IP66 and IK10, with a 316L cam lock and a 250 x 355 mm mounting plate. Rittal part number 1302.000.
- Brushed 1.4404 (AISI 316L) stainless steel
- 300 x 380 x 210 mm, IP66, IK10
- 316L stainless cam lock
- 250 x 355 mm mounting plate supplied
- Same size in 304: 1005.000
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|---|
| Impact rating (IK) | IK10 |
| NEMA rating | NEMA 4X |
Dimensions
| Size (W x H x D) | W 300 x H 380 x D 210 mm |
|---|---|
| Mounting plate (W x H) | 250 x 355 mm |
| Weight | 6 kg |
Construction
| Enclosure material | Stainless steel |
|---|---|
| Stainless grade | Grade 316L |
| Door / lid | Plain door |
| Doors | Single door |
| Colour | Stainless (brushed) |
| Lock | Cam lock with 3 mm double-bit insert |
| Number of locks | 1 |
| Material thickness | 1.5 mm |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 1302.000 |
| EAN | 4028177815070 |
| Range | Rittal AX |
More technical data
| Enclosure and door | stainless steel 1.4404 (AISI 316L), brushed, grain size 400 |
|---|---|
| Material thickness | enclosure 1.5 mm, door 1.5 mm |
| Door | 1, opening angle 130°, foamed-in PU seal |
| Lock | 1 x cam lock, 3 mm double-bit insert, stainless steel 1.4404 (AISI 316L) |
| Mounting plate (W x H) | 250 x 355 mm, 2 mm zinc-plated sheet steel |
Product details
The Rittal AX 1302.000 is a 300 x 380 x 210 mm compact enclosure in brushed 1.4404 (AISI 316L) stainless steel, rated IP66 and IK10. Grade 316L contains molybdenum, which gives it better resistance to chloride pitting than 304, so this is the small enclosure to specify where salt air, chlorinated water or chemical splash will reach it.
Key features
- 1.4404 (AISI 316L) stainless body and door, both 1.5 mm, brushed to grain size 400
- Cam lock also in 1.4404 (AISI 316L) stainless, with 3 mm double-bit insert
- 250 x 355 mm mounting plate, 2 mm zinc-plated sheet steel
- IP66 with UL 50E Type 4X and NEMA 4X; IK10
- Foamed-in PU door seal; the door opens to 130°
Typical applications
Junction and terminal boxes at coastal and harbour installations, instrument connection boxes in water and wastewater treatment, and local isolator or control boxes near chemical storage, dosing points or road-salt spray. Where chlorides are not a concern, the same size in 1.4301 (AISI 304) is Rittal 1005.000.
Compliance
Protection category IP66 to IEC 60529: dust-tight and protected against powerful water jets. Type rated to UL 50E Type 1, 3R, 4, 4X and 12, and NEMA 1, 3R, 4, 4X and 12. Impact protection IK10, the highest IK code (20 joules).
Genuine Rittal product. Add it to your cart, or ask us about project quantities.
