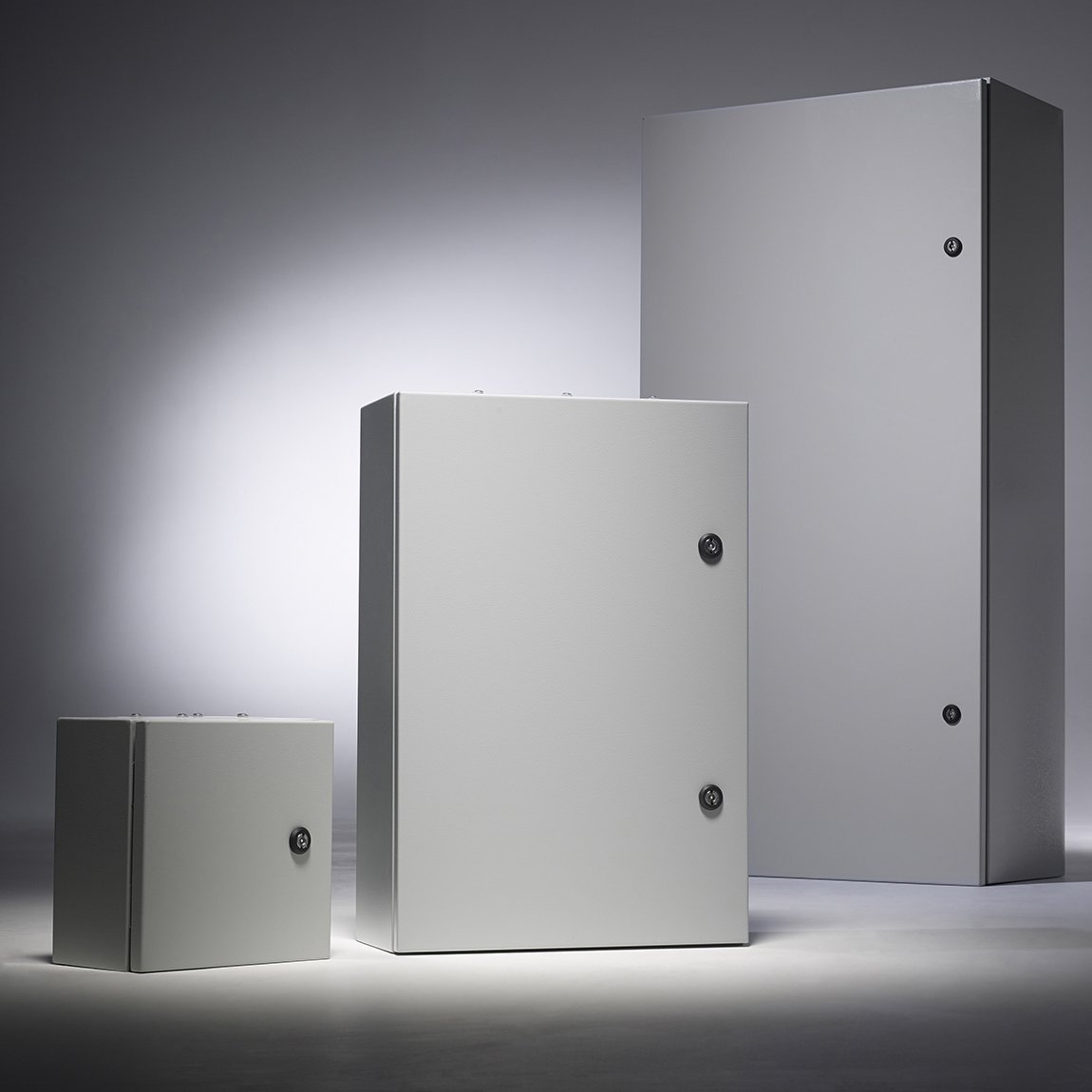

Illustration - our own render; see the datasheet for exact details.
Rittal AX 1057.000 Sheet Steel Compact Enclosure 500 x 700 x 250 mm, IP66
- Brand:
- Rittal
- Part number:
- 1057.000
- EAN:
- 4028177813335
Portrait IP66 sheet steel wall enclosure, 500 x 700 x 250 mm, with a 450 x 675 mm mounting plate, gland plate and two cam locks. Rittal part number 1057.000.
- 500 x 700 x 250 mm sheet steel, RAL 7035
- IP66, IK10, UL 50E Type 4
- 450 x 675 mm zinc-plated mounting plate
- Single door, 2 cam locks
- Gland plate in base, size 3
14 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|---|
| Impact rating (IK) | IK10 |
| NEMA rating | NEMA 4 |
Dimensions
| Size (W x H x D) | W 500 x H 700 x D 250 mm |
|---|---|
| Mounting plate (W x H) | 450 x 675 mm |
| Weight | 24.75 kg |
| Rittal gland plate size | Size 3 |
Construction
| Enclosure material | Sheet steel |
|---|---|
| Door / lid | Plain door |
| Doors | Single door |
| Colour | RAL 7035 |
| Lock | Cam lock with 3 mm double-bit insert |
| Number of locks | 2 |
| Hinge can be swapped | Yes |
| Material thickness | 1.5 mm |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|---|
| Gland plates supplied | 1 |
Identification
| Brand | Rittal |
|---|---|
| Part number | 1057.000 |
| EAN | 4028177813335 |
| Range | Rittal AX |
More technical data
| Mounting plate (W x H) | 450 x 675 mm, 2.5 mm, zinc-plated |
|---|---|
| Material | sheet steel; enclosure 1.5 mm, door 2 mm |
| Finish | dipcoat primed, powder-coated outside, textured, RAL 7035 |
| Doors | 1; interchangeable door hinge |
| Locks | 2 x cam, 3 mm double-bit insert |
| Gland plates | 1 x size 3, in enclosure base |
| Protection | IP66, IK10 |
| Weight | 25 kg |
| Supply includes | door, mounting plate, gland plate in base, perforated door strip, locks with 3 mm double-bit inserts |
Product details
The Rittal AX 1057.000 is a 500 x 700 x 250 mm (W x H x D) IP66 sheet steel compact enclosure: a portrait case with a tall 450 x 675 mm mounting plate and a 2 mm door on two cam locks.
Key features
- Two cam locks with 3 mm double-bit inserts hold the single door; the hinge side can be swapped
- Zinc-plated mounting plate of 450 x 675 mm, 2.5 mm thick: about 0.30 m² for equipment
- Cable entry through a size 3 gland plate fitted in the base
- 1.5 mm steel body, 2 mm door with an all-round foamed-in PU door seal; IP66 and IK10
- Tall plate for several rows of equipment in a 500 mm width
Typical applications
Control panels laid out in horizontal rows, HVAC and building-services controls, and pump or fan panels in plant rooms where wall width is limited. For a wider plate at the same 250 mm depth, see 1058.000 (600 x 800 x 250 mm). For washdown, coastal or chemical sites, step up to AX stainless steel or GRP.
Compliance
Rated IP66 to IEC 60529 (dust-tight, protected against powerful water jets) and UL 50E Type 1, 3R, 4 and 12, with matching NEMA ratings; Types 3R and 4 cover outdoor use.
Compatible AX accessories are available separately. Add it to your cart, or contact us about project quantities.
