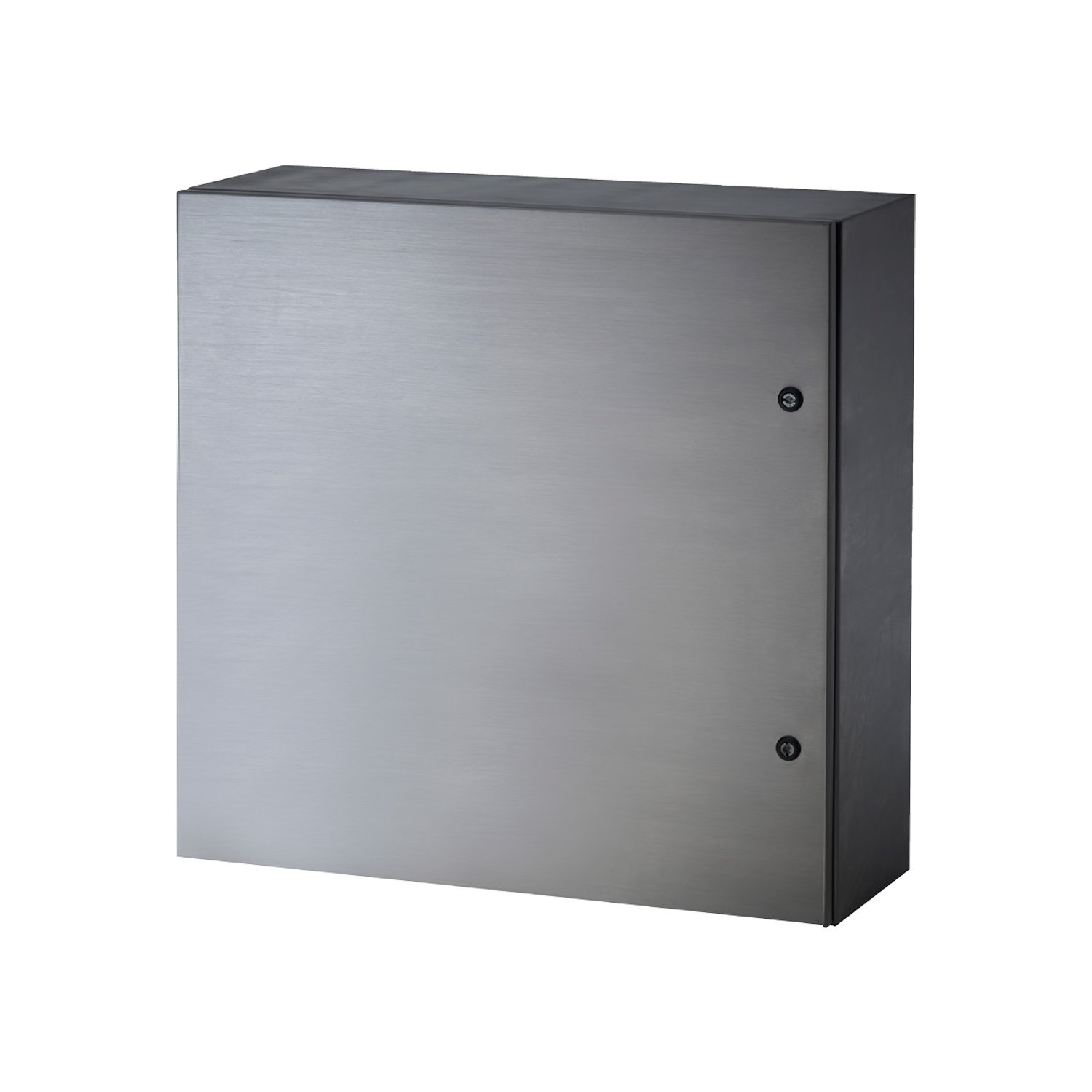

Illustration - our own render; see the datasheet for exact details.
Rittal AX 1304.000 Stainless Steel 316L Compact Enclosure 600 x 600 x 210 mm, IP66
- Brand:
- Rittal
- Part number:
- 1304.000
- EAN:
- 4028177815094
Square 600 x 600 x 210 mm compact enclosure in brushed 1.4404 (AISI 316L) stainless steel, IP66 and IK10, with two 316L cam locks and a 550 x 575 mm mounting plate. Rittal part number 1304.000.
- Square 600 x 600 x 210 mm
- Brushed 1.4404 (AISI 316L) stainless
- Two 316L stainless cam locks
- IP66, NEMA 4X, IK10
- Same size in 304: 1010.000
2 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|---|
| Impact rating (IK) | IK10 |
| NEMA rating | NEMA 4X |
Dimensions
| Size (W x H x D) | W 600 x H 600 x D 210 mm |
|---|---|
| Mounting plate (W x H) | 550 x 575 mm |
| Weight | 21 kg |
Construction
| Enclosure material | Stainless steel |
|---|---|
| Stainless grade | Grade 316L |
| Door / lid | Plain door |
| Doors | Single door |
| Colour | Stainless (brushed) |
| Lock | Cam lock with 3 mm double-bit insert |
| Number of locks | 2 |
| Material thickness | 1.5 mm |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 1304.000 |
| EAN | 4028177815094 |
| Range | Rittal AX |
More technical data
| Enclosure and door | stainless steel 1.4404 (AISI 316L), brushed, grain size 400 |
|---|---|
| Material thickness | enclosure 1.5 mm, door 1.5 mm |
| Door | 1, opening angle 130°, foamed-in PU seal |
| Locks | 2 x cam lock, 3 mm double-bit insert, stainless steel 1.4404 (AISI 316L) |
| Mounting plate (W x H) | 550 x 575 mm, 2.5 mm zinc-plated sheet steel |
Product details
The Rittal AX 1304.000 is a 600 x 600 x 210 mm compact enclosure in brushed 1.4404 (AISI 316L) stainless steel, rated IP66, IK10 and UL 50E Type 4X. It brings the chloride resistance of 316L to a control-panel size, with a 550 x 575 mm, 2.5 mm mounting plate and two cam locks that are themselves 1.4404 (AISI 316L) stainless.
Key features
- 1.4404 (AISI 316L) stainless, 1.5 mm body and 1.5 mm door, brushed to grain size 400
- Two 316L stainless cam locks with 3 mm double-bit inserts
- 550 x 575 mm mounting plate, 2.5 mm zinc-plated sheet steel
- IP66, UL 50E Type 4X and NEMA 4X; IK10
- Foamed-in PU door seal and 130° door opening
Typical applications
Pump and process control panels at water and wastewater treatment works, control enclosures at coastal and port installations exposed to salt spray, and panels in chemical and pharmaceutical plants. Where chlorides are not a concern, the same size in 1.4301 (AISI 304) is Rittal 1010.000.
Compliance
Protection category IP66 to IEC 60529: dust-tight and protected against powerful water jets. Type rated to UL 50E Type 1, 3R, 4, 4X and 12, and NEMA 1, 3R, 4, 4X and 12. Impact protection IK10, the highest IK code (20 joules).
Genuine Rittal product. Compatible locks, cable entry parts, earthing and interior fittings are also in our range. Add it to your cart, or ask us about project quantities.
