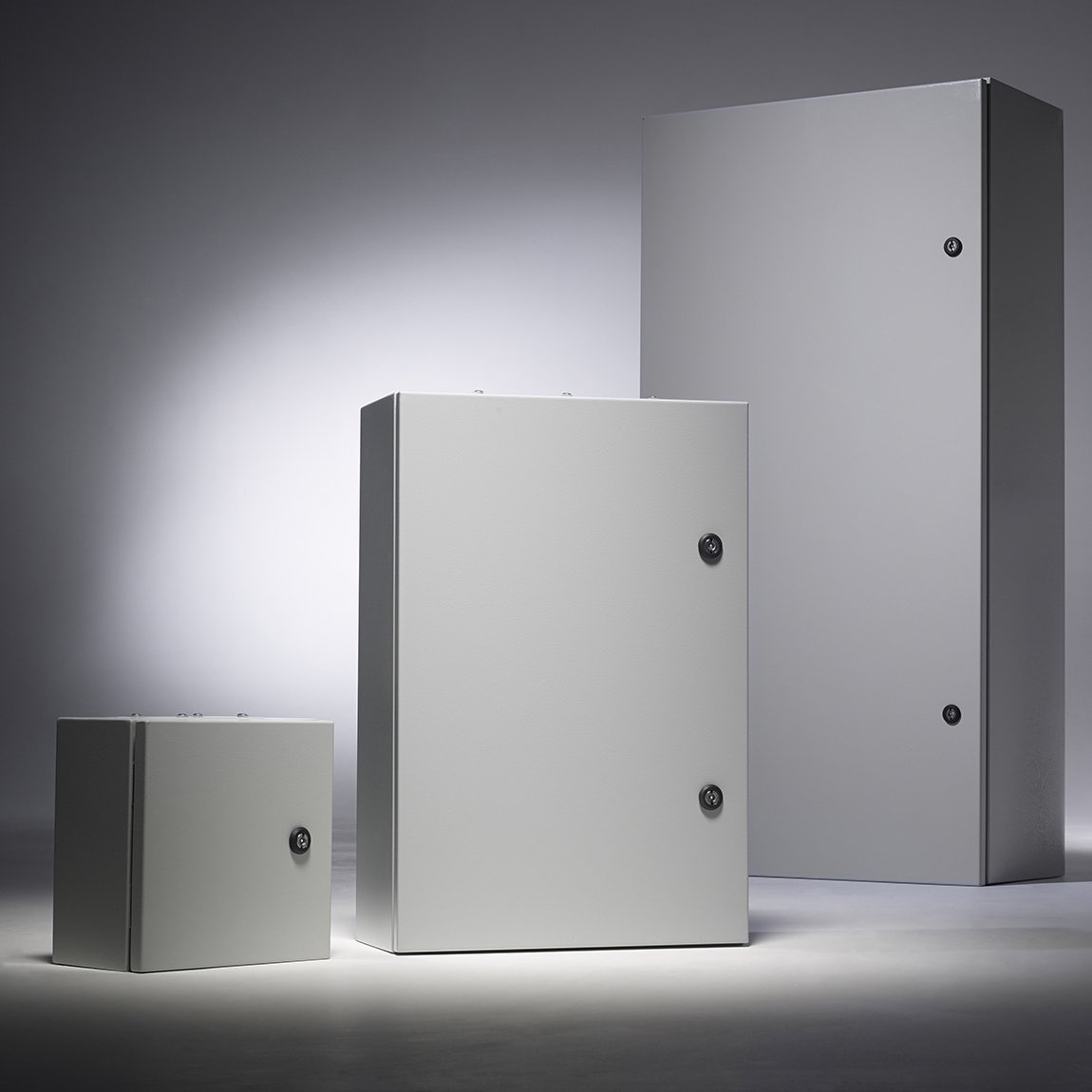

Illustration - our own render; see the datasheet for exact details.
Rittal AX 1037.000 Sheet Steel Compact Enclosure 400 x 800 x 300 mm, IP66
- Brand:
- Rittal
- Part number:
- 1037.000
- EAN:
- 4028177813298
Tall, narrow IP66 sheet steel wall enclosure, 400 x 800 x 300 mm, with a 345 x 775 mm mounting plate, gland plate and two cam locks. Rittal part number 1037.000.
- 400 x 800 x 300 mm sheet steel, RAL 7035
- IP66, IK10, UL 50E Type 4
- 345 x 775 mm zinc-plated mounting plate
- Single door, 2 cam locks
- Gland plate in base, size 5
18 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|---|
| Impact rating (IK) | IK10 |
| NEMA rating | NEMA 4 |
Dimensions
| Size (W x H x D) | W 400 x H 800 x D 300 mm |
|---|---|
| Mounting plate (W x H) | 345 x 775 mm |
| Weight | 24.271 kg |
| Rittal gland plate size | Size 5 |
Construction
| Enclosure material | Sheet steel |
|---|---|
| Door / lid | Plain door |
| Doors | Single door |
| Colour | RAL 7035 |
| Lock | Cam lock with 3 mm double-bit insert |
| Number of locks | 2 |
| Hinge can be swapped | Yes |
| Material thickness | 1.5 mm |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|---|
| Gland plates supplied | 1 |
Identification
| Brand | Rittal |
|---|---|
| Part number | 1037.000 |
| EAN | 4028177813298 |
| Range | Rittal AX |
More technical data
| Mounting plate (W x H) | 345 x 775 mm, 2.5 mm, zinc-plated |
|---|---|
| Material | sheet steel; enclosure 1.5 mm, door 2 mm |
| Finish | dipcoat primed, powder-coated outside, textured, RAL 7035 |
| Doors | 1; interchangeable door hinge |
| Locks | 2 x cam, 3 mm double-bit insert |
| Gland plates | 1 x size 5, in enclosure base |
| Protection | IP66, IK10 |
| Weight | 24.9 kg |
| Supply includes | door, mounting plate, gland plate in base, perforated door strip, locks with 3 mm double-bit inserts |
Product details
The Rittal AX 1037.000 is a tall, narrow IP66 sheet steel compact enclosure of 400 x 800 x 300 mm (W x H x D), with a 345 x 775 mm mounting plate and 300 mm of depth.
Key features
- Single door closing on two cam locks with 3 mm double-bit inserts; interchangeable hinge lets the door open from either side
- Zinc-plated mounting plate of 345 x 775 mm, 2.5 mm thick: about 0.27 m² for equipment
- One size 5 gland plate in the enclosure base for cable entry
- All-round foamed-in PU door seal and textured RAL 7035 powder coat; IP66, IK10
- Narrow 400 mm width with 300 mm depth for deeper devices
Typical applications
Vertical control layouts on columns or narrow walls, lighting and building-services panels, and control for a single machine or pump set with deeper components. For a wider plate at the same height, see 1058.000 (600 x 800 x 250 mm) or 1059.000 (600 x 800 x 400 mm). If the site is corrosive or washed down often, look at AX stainless steel or GRP instead.
Compliance
Rated IP66 to IEC 60529 (dust-tight, protected against powerful water jets) and UL 50E Type 1, 3R, 4 and 12, with matching NEMA ratings; Types 3R and 4 cover outdoor use.
Genuine Rittal product. Add it to your cart, or ask us about quantities for a project.
