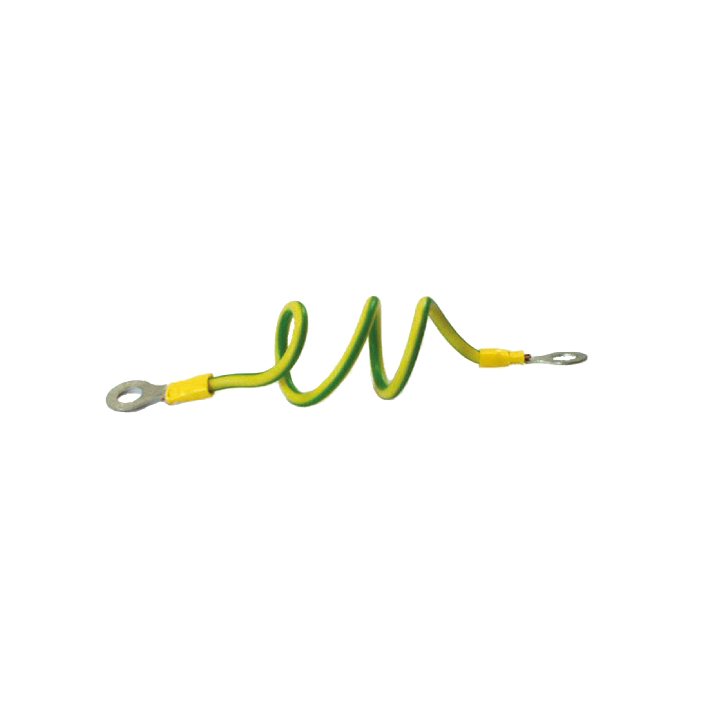

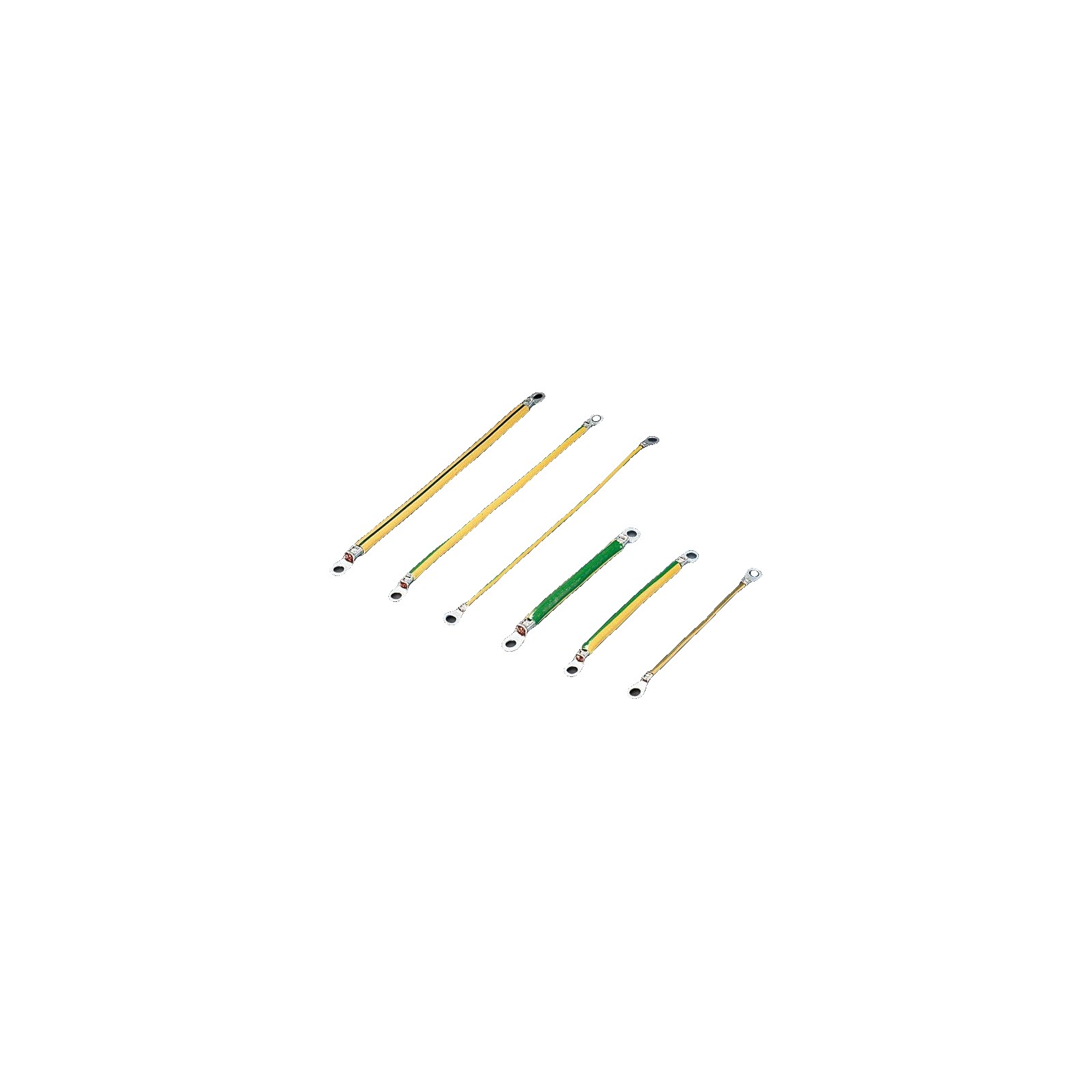

Illustration - our own render; see the datasheet for exact details.
Rittal 2568.000 Earth Strap 16 mm², 300 mm, M8 to M8, for AX and VX Enclosures, Pack of 5
- Brand:
- Rittal
- Part number:
- 2568.000
- EAN:
- 4028177027954
Pack of five earth straps, 16 mm² cross-section and 300 mm long, with M8 connections at both ends for bonding doors, covers and mounting plates on Rittal AX and VX enclosures. Rittal part number 2568.000.
- 16 mm² cross-section
- 300 mm long, M8 to M8
- Bonds AX doors, covers and mounting plates
- Pack of 5
8 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Conductor cross-section | 16 mm² |
|---|
Dimensions
| Weight | 0.27 kg |
|---|---|
| Thread size | M8 |
| Length | 300 mm |
Fit
| Fits enclosure family | Rittal AX sheet steel, Rittal AX stainless steel, Rittal AX operating housing, Rittal AX IT |
|---|
What's supplied
| Pack quantity | Pack of 5 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2568.000 |
| EAN | 4028177027954 |
| Range | Rittal AX |
| Type | Earth strap |
More technical data
| Product type | earth strap |
|---|---|
| Cross-section | 16 mm² |
| Connection | M8 to M8 |
| Pack weight | 0.27 kg |
Product details
The Rittal 2568.000 is a pack of five earth straps, each 300 mm long with a 16 mm² cross-section and an M8 connection at both ends. They are used to bond the door or cover and the mounting plate of an enclosure into its protective earthing.
Key features
- 16 mm² cross-section, 300 mm long
- M8 connection at both ends
- AX connection options: door or cover, enclosure and mounting plate, all M8
- VX connection options: door or cover, enclosure, mounting plate, side panel and gland plate, all M8
- Pack of 5
Typical applications
Doors, covers and mounting plates are bonded to the enclosure body with earth straps so that they are included in the protective earthing. On AX enclosures Rittal gives the connection options as the door or cover, the enclosure and the mounting plate; on VX enclosures the side panels and gland plates can be connected as well, all with M8 connections. Choose the length to span the distance between the two connection points and the cross-section to suit the protective conductor sizing of your installation; other lengths and cross-sections are listed separately. Rittal asks that its assembly instructions or PE conductor brochure for the relevant enclosure or case system are followed.

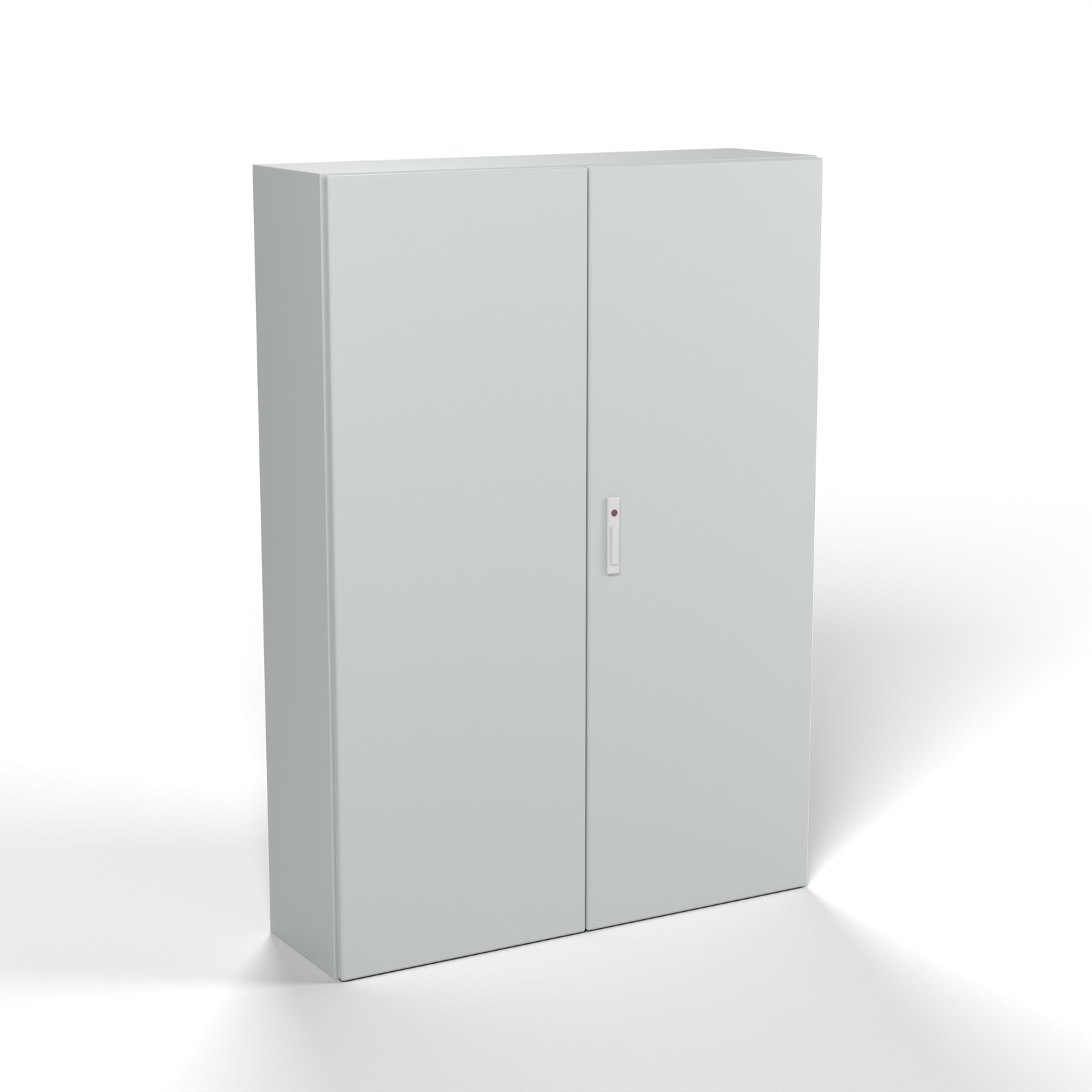

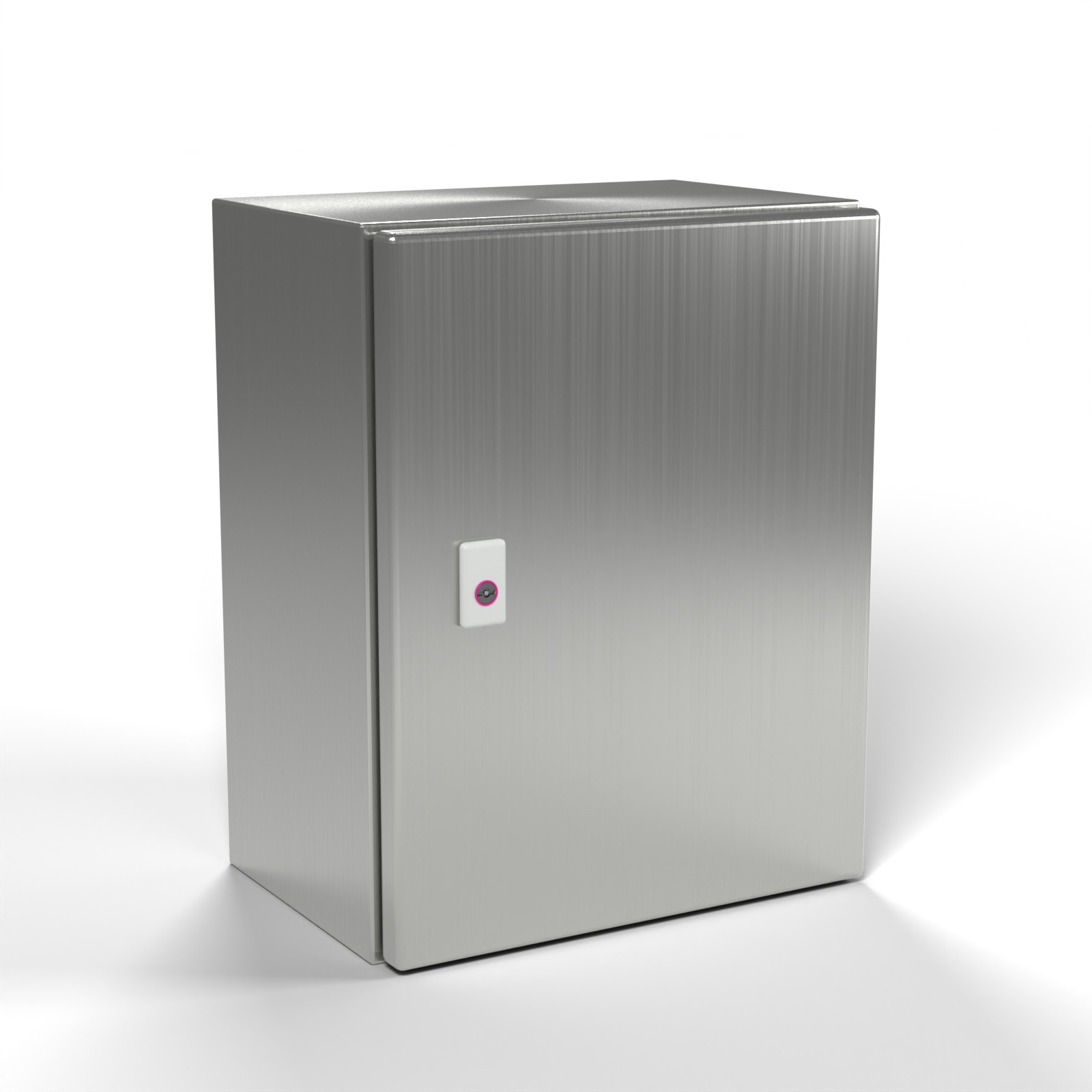

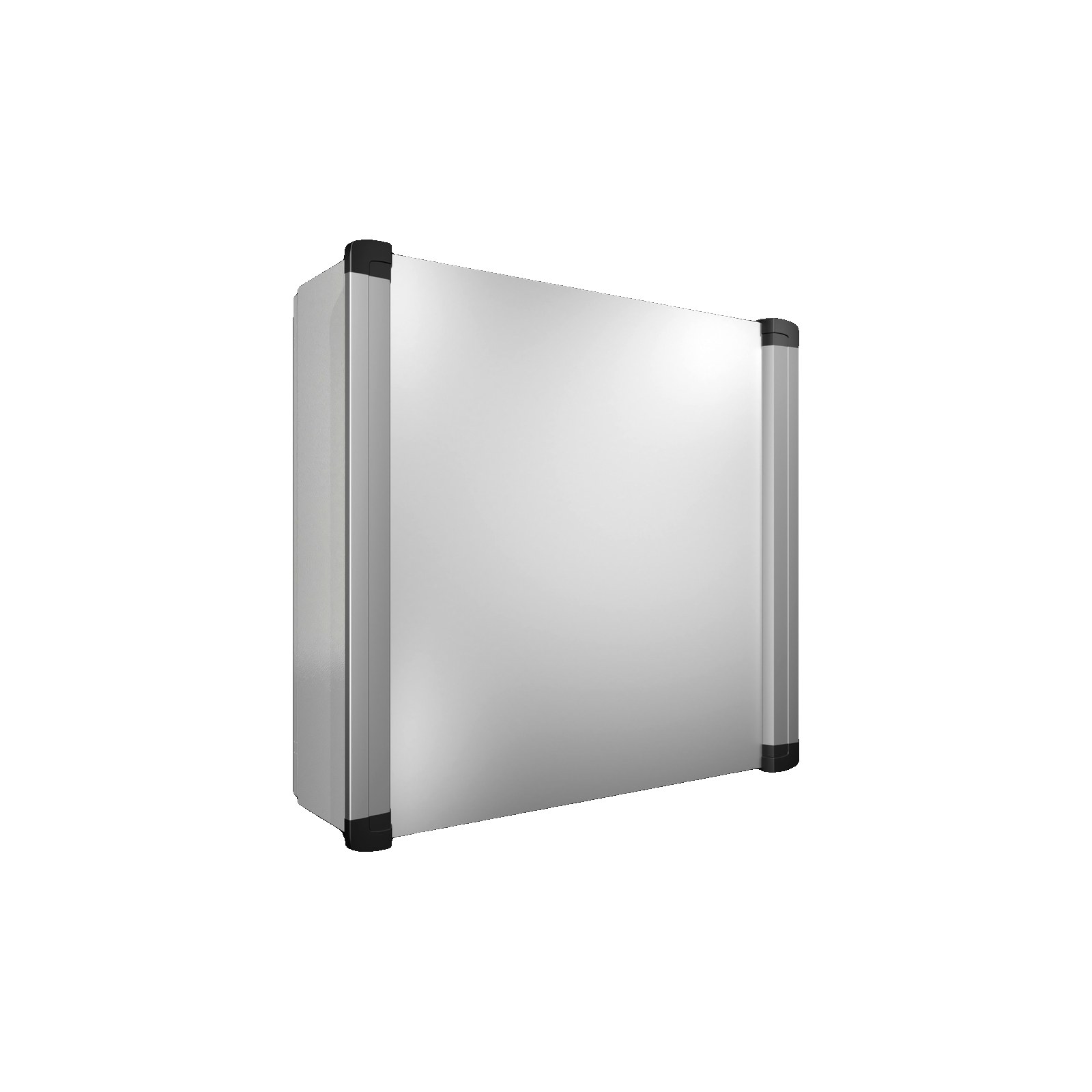

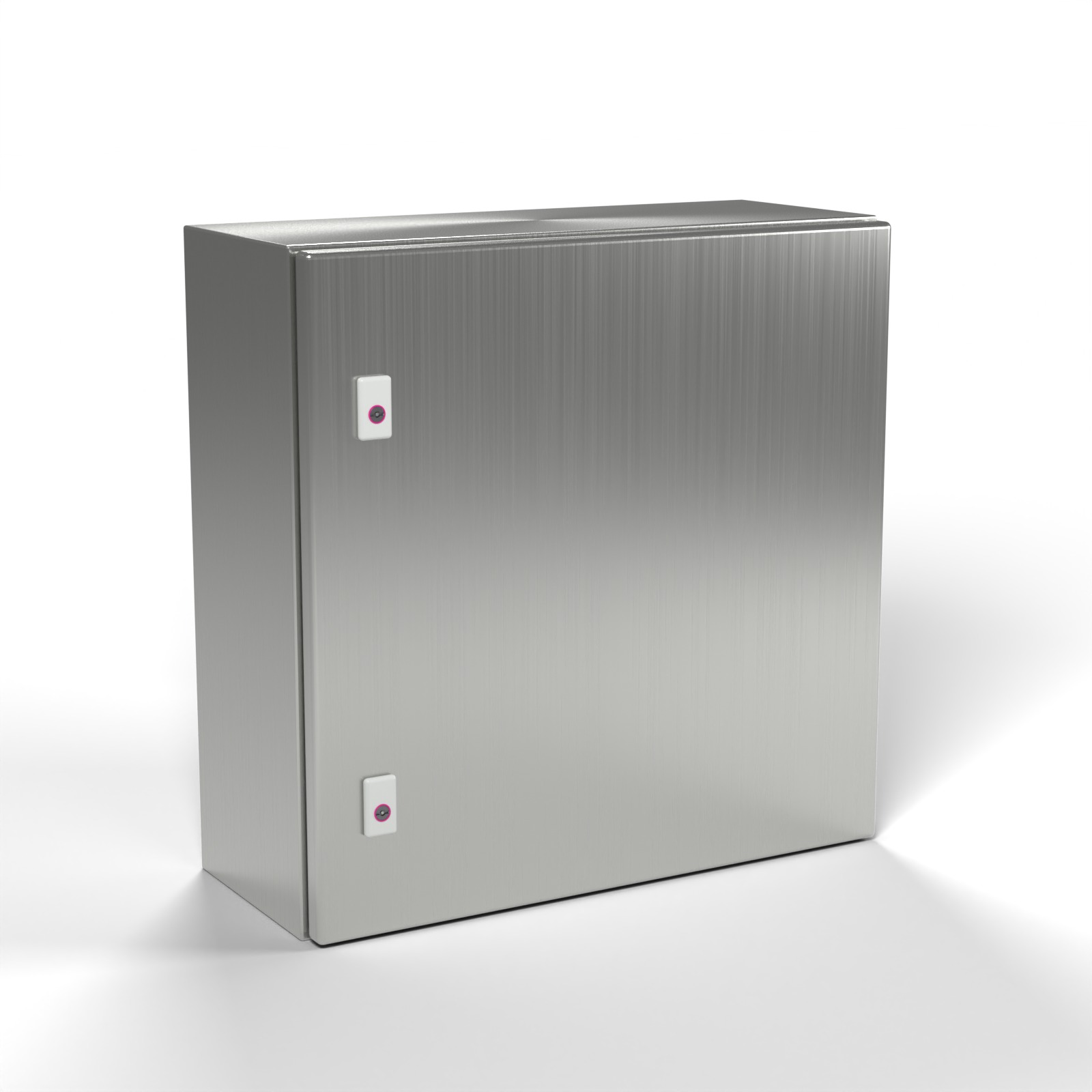

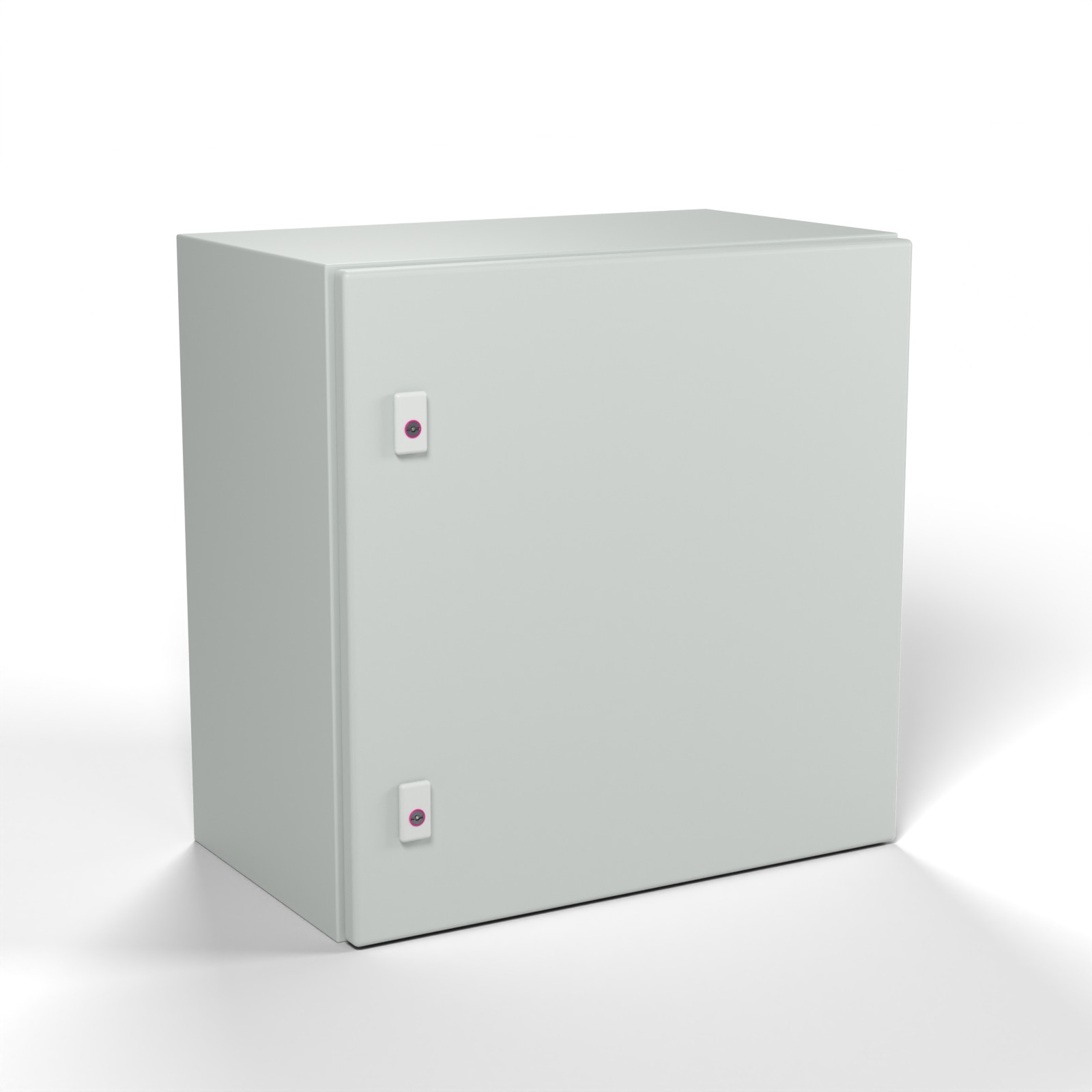

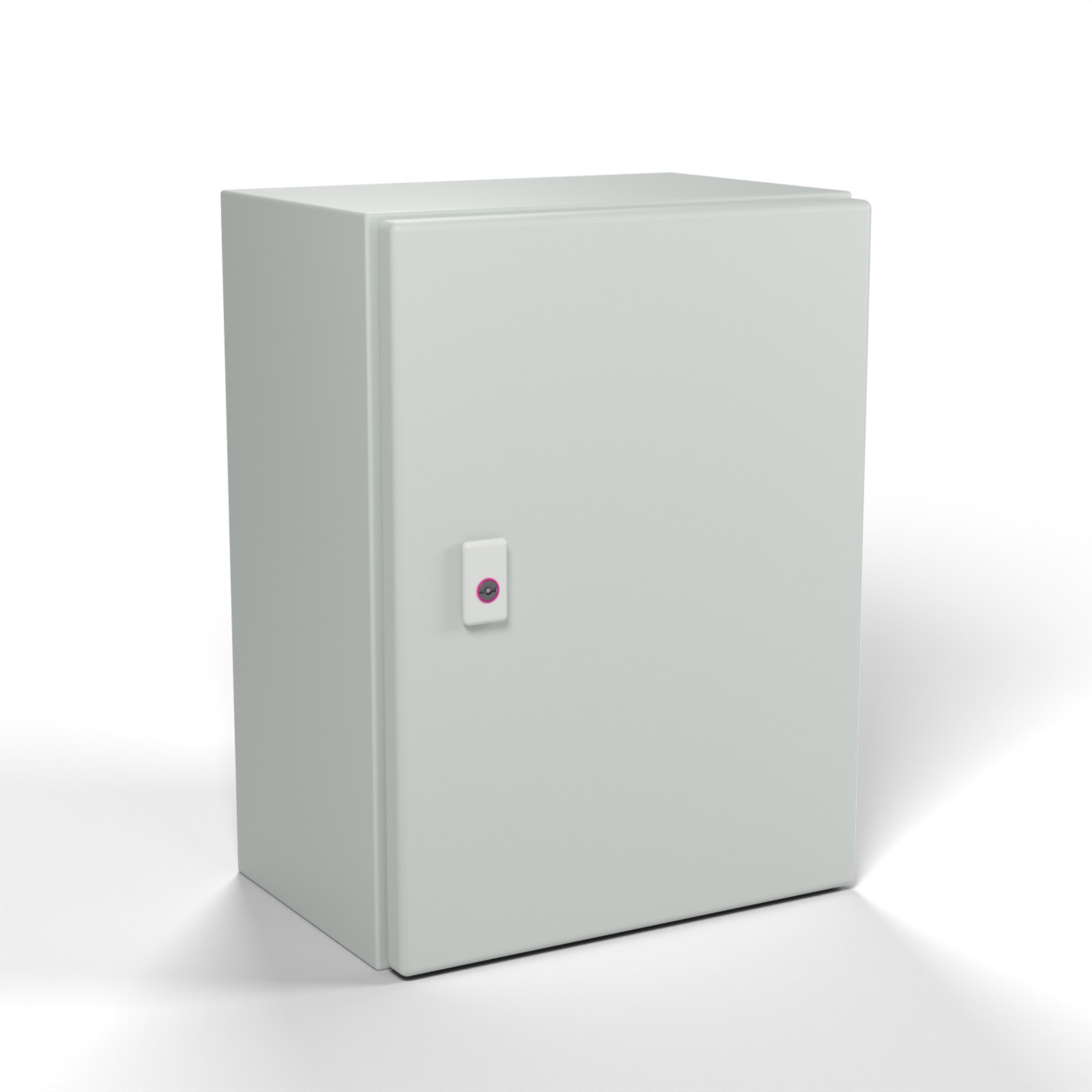

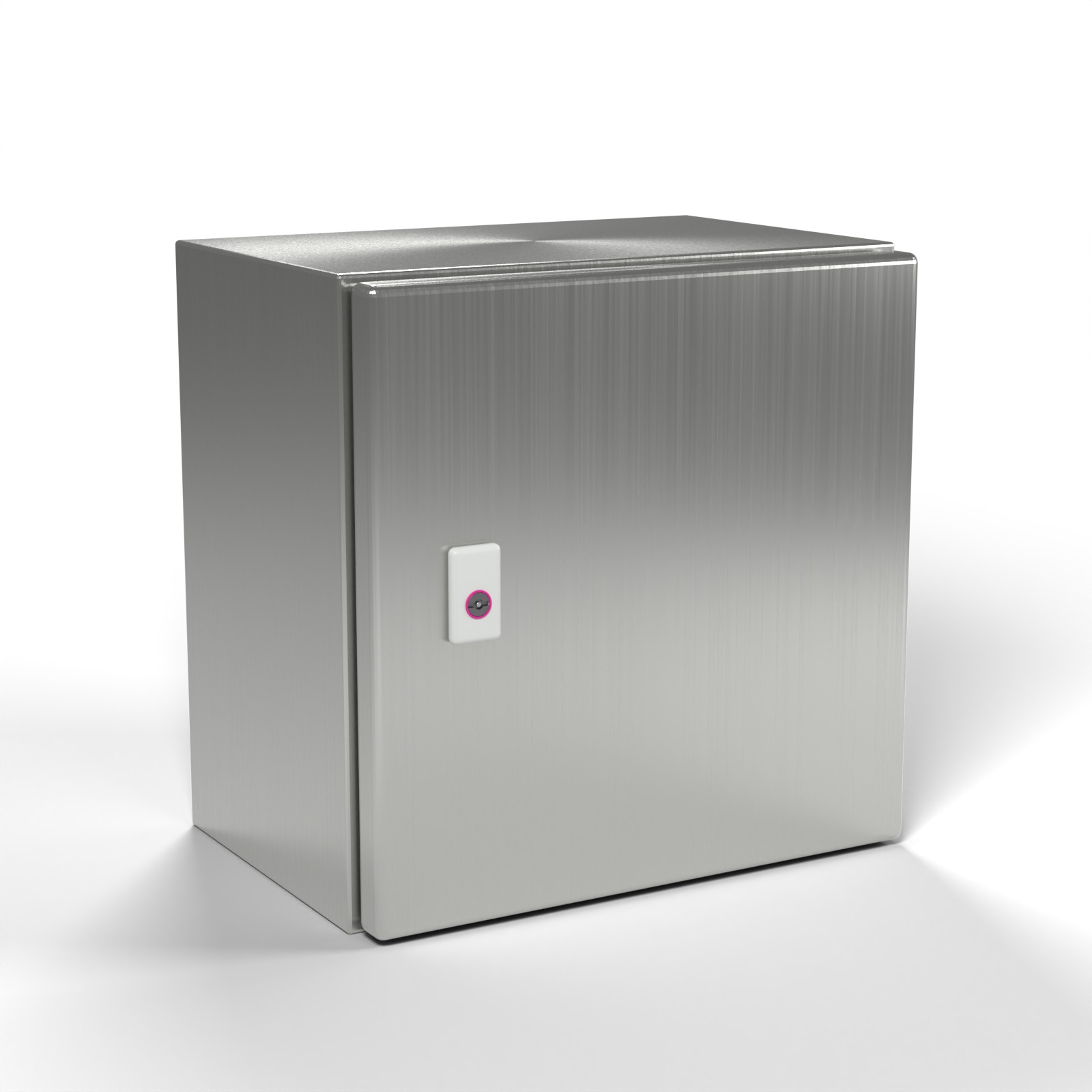

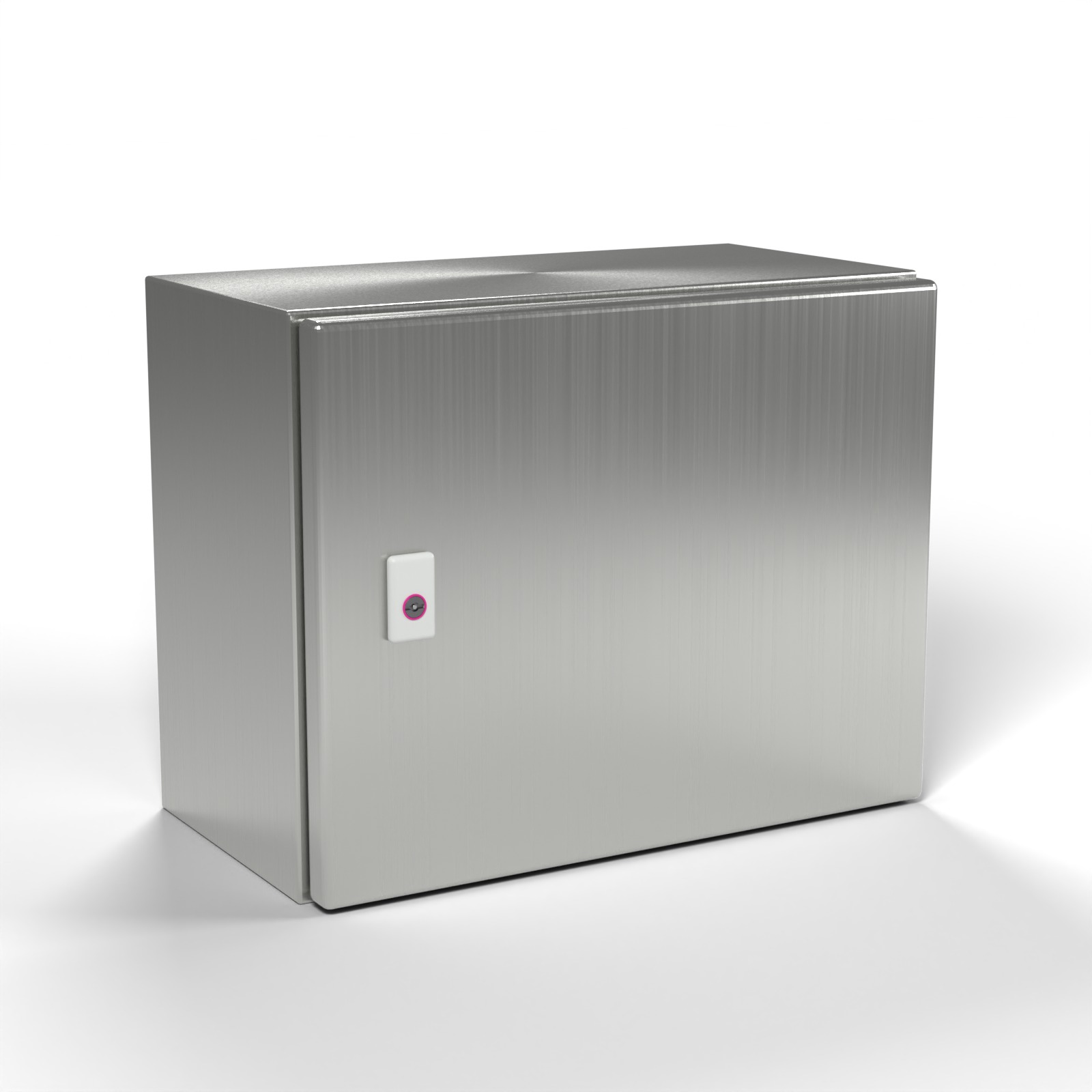

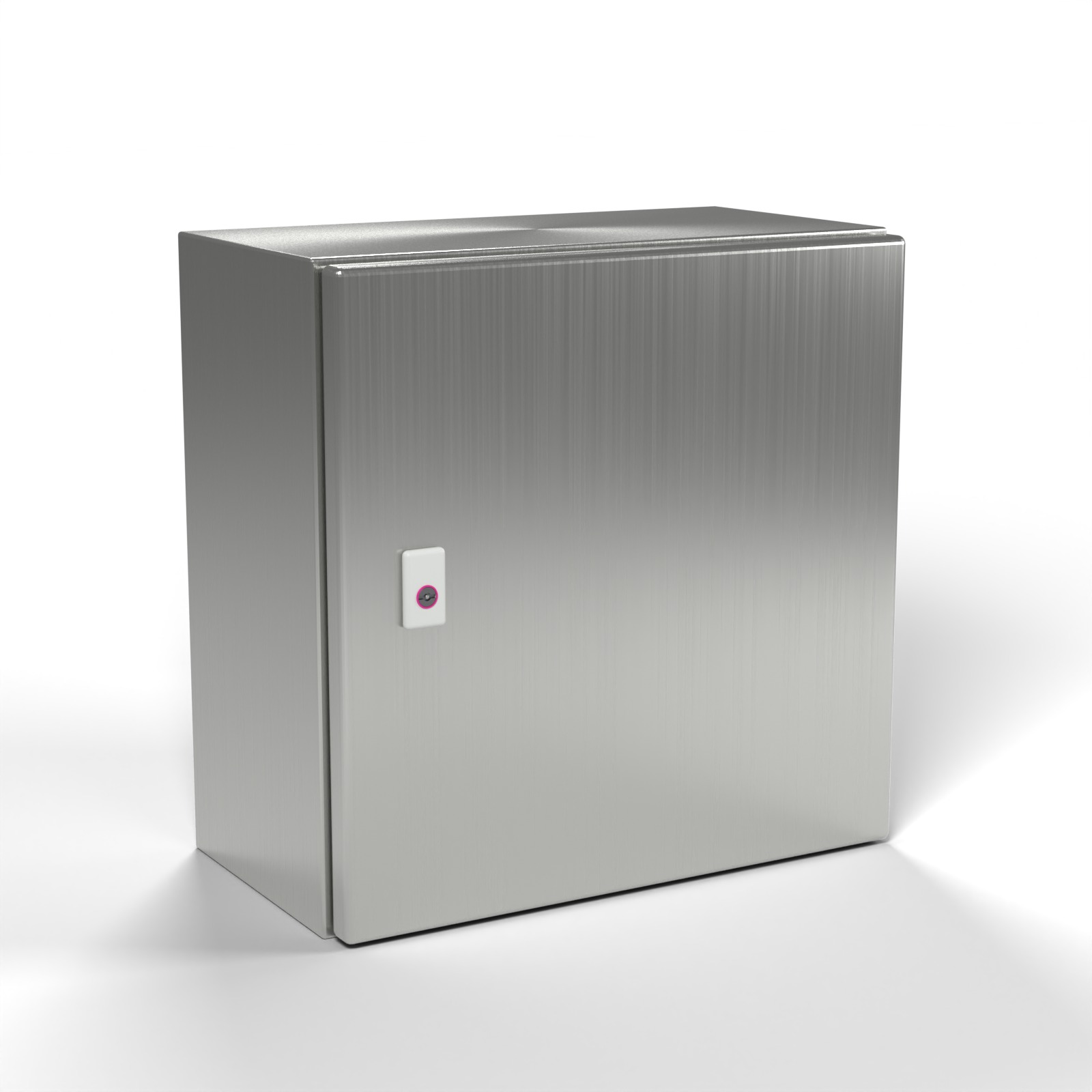

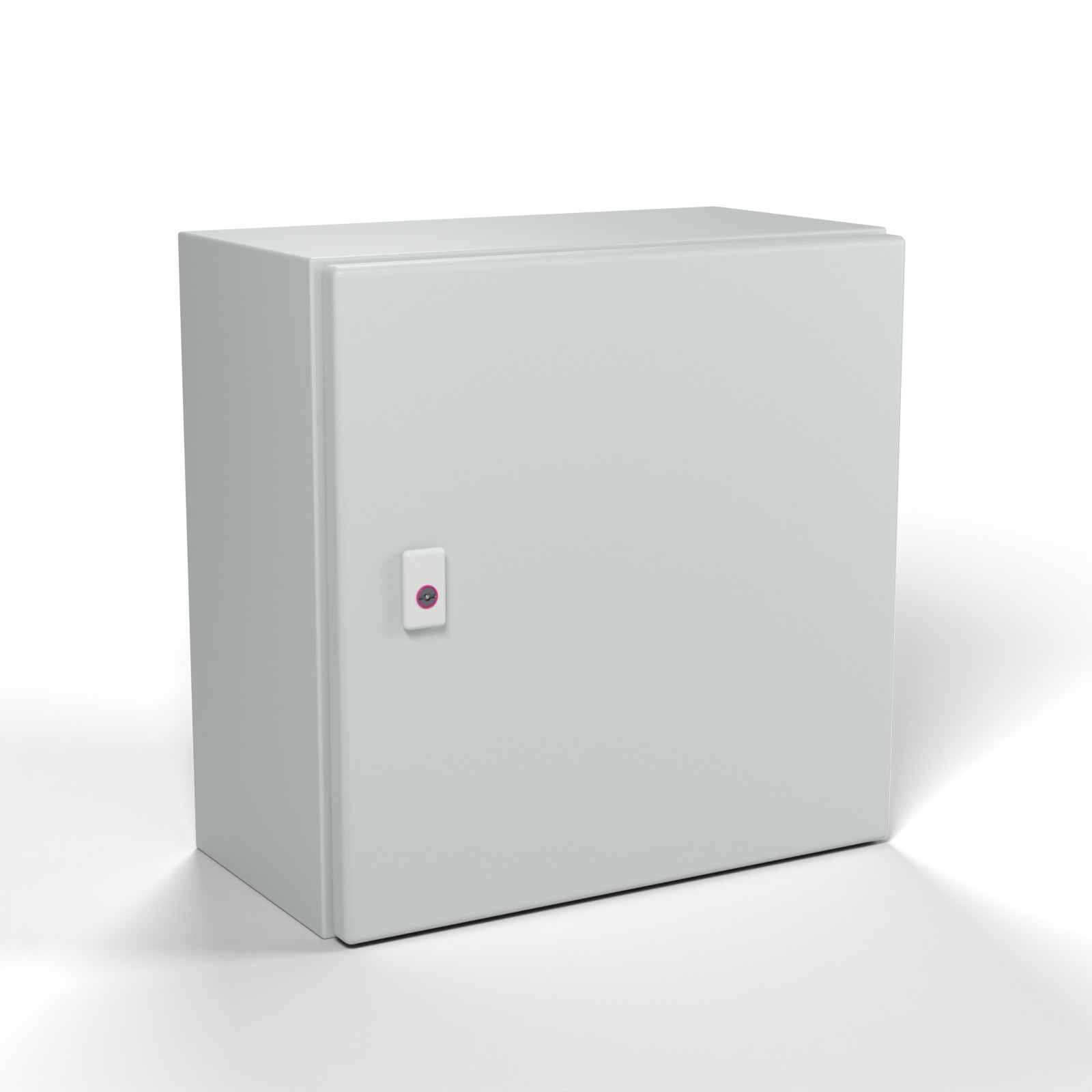

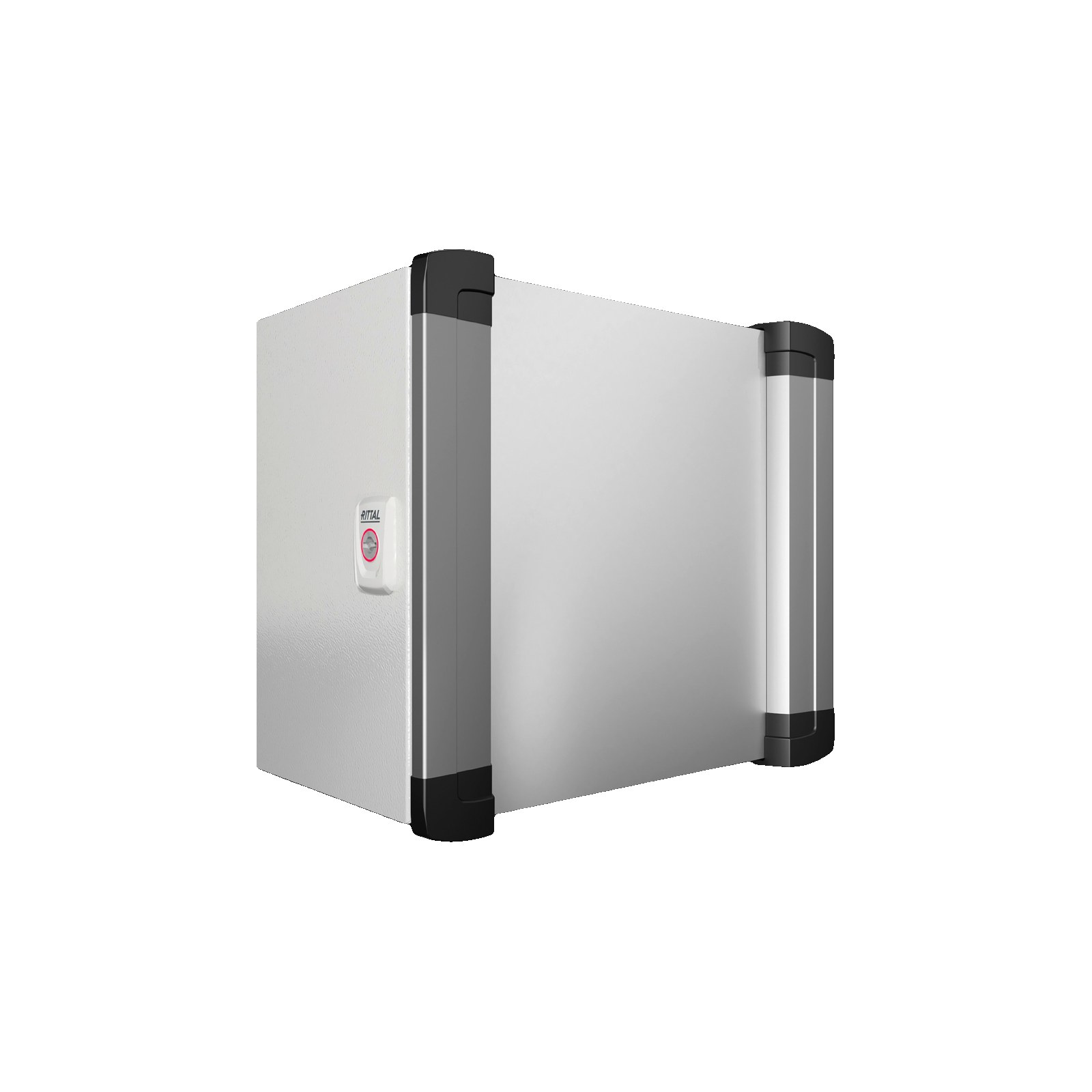

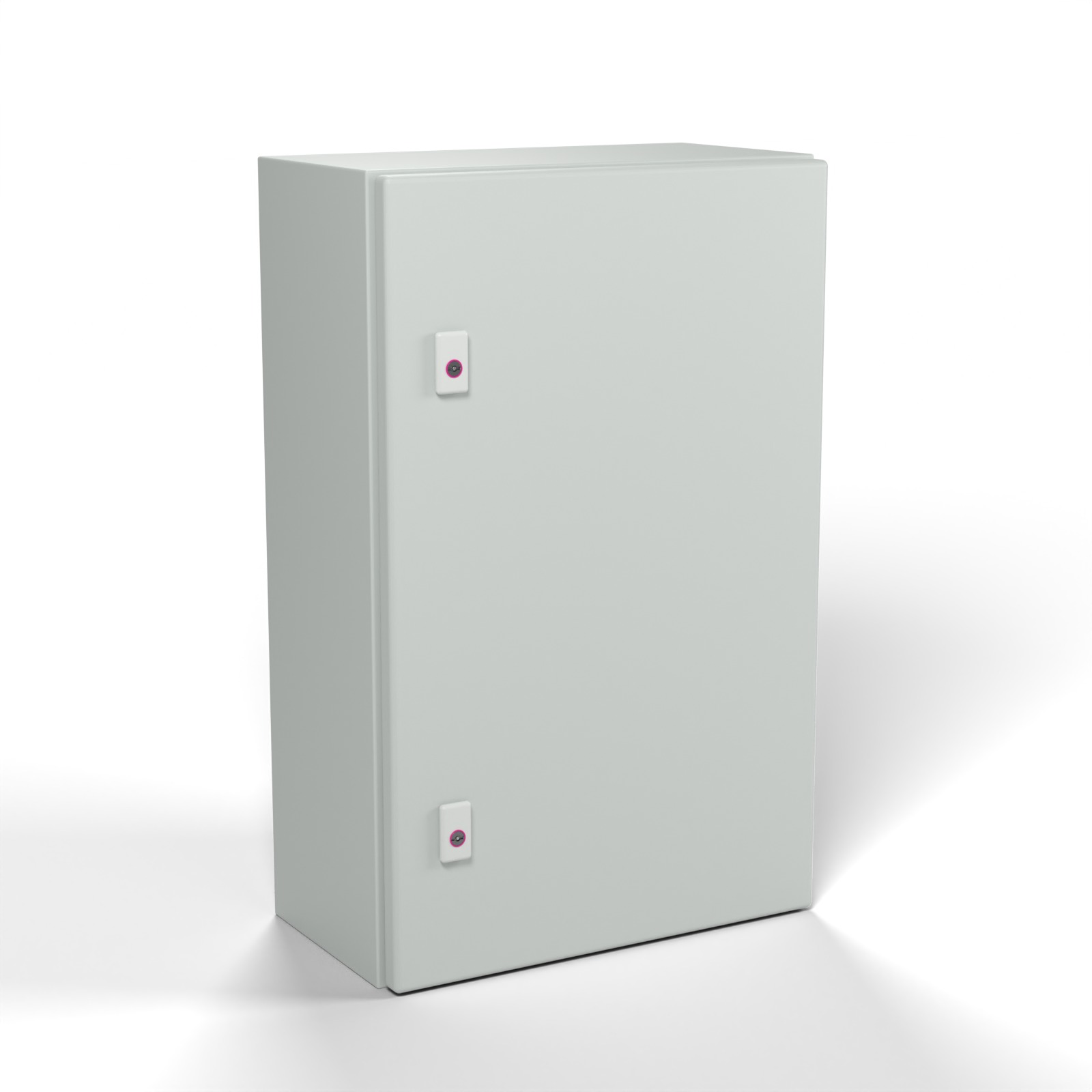

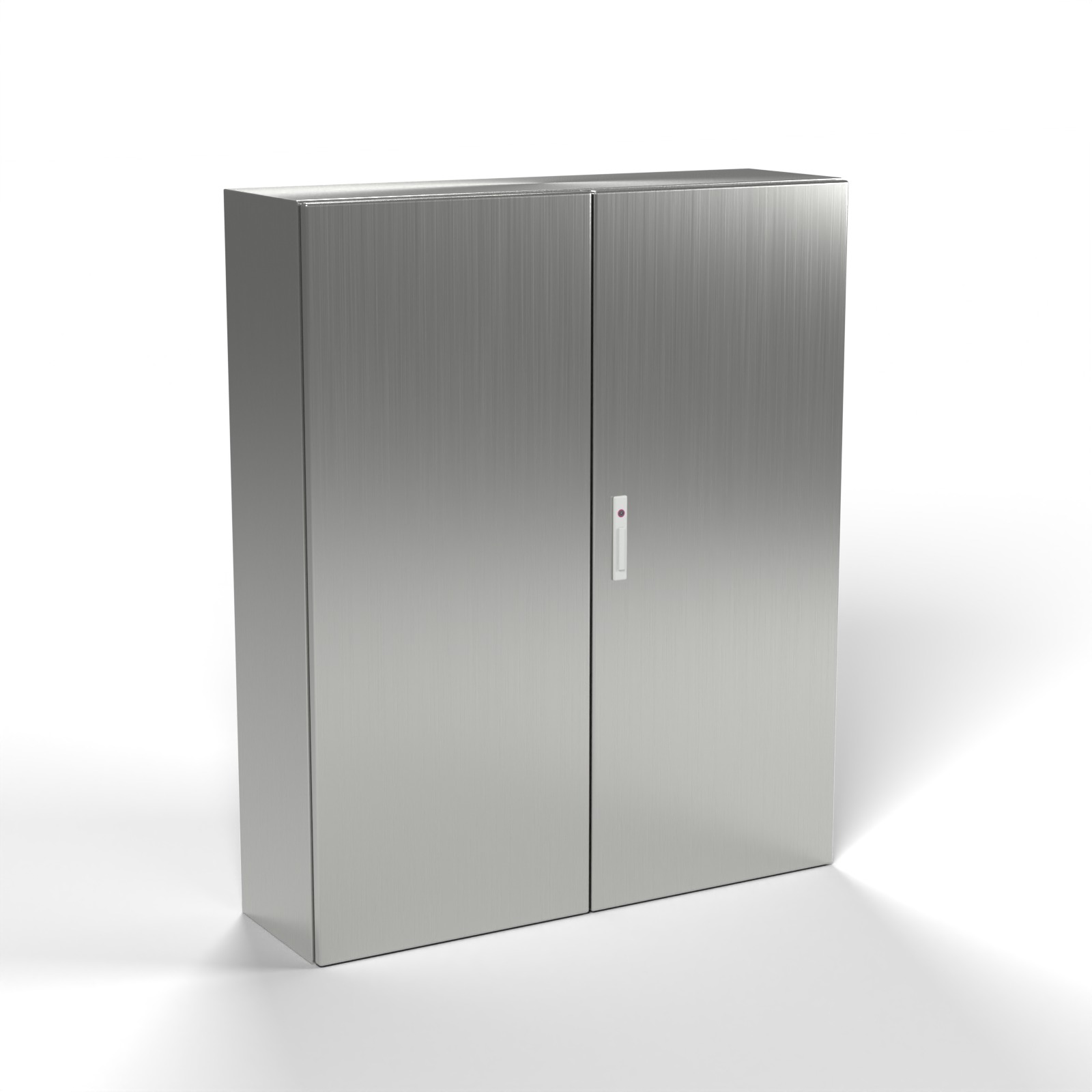

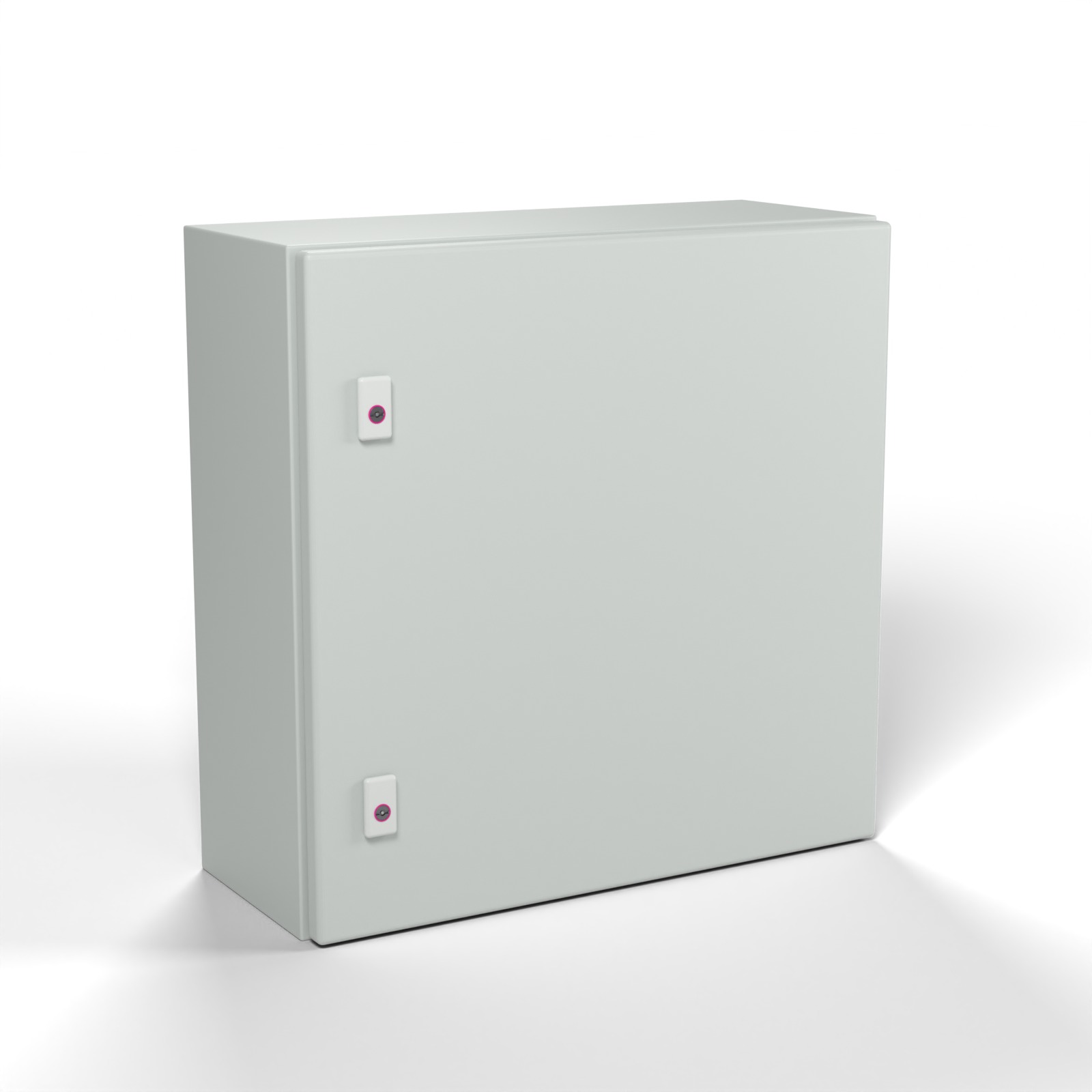

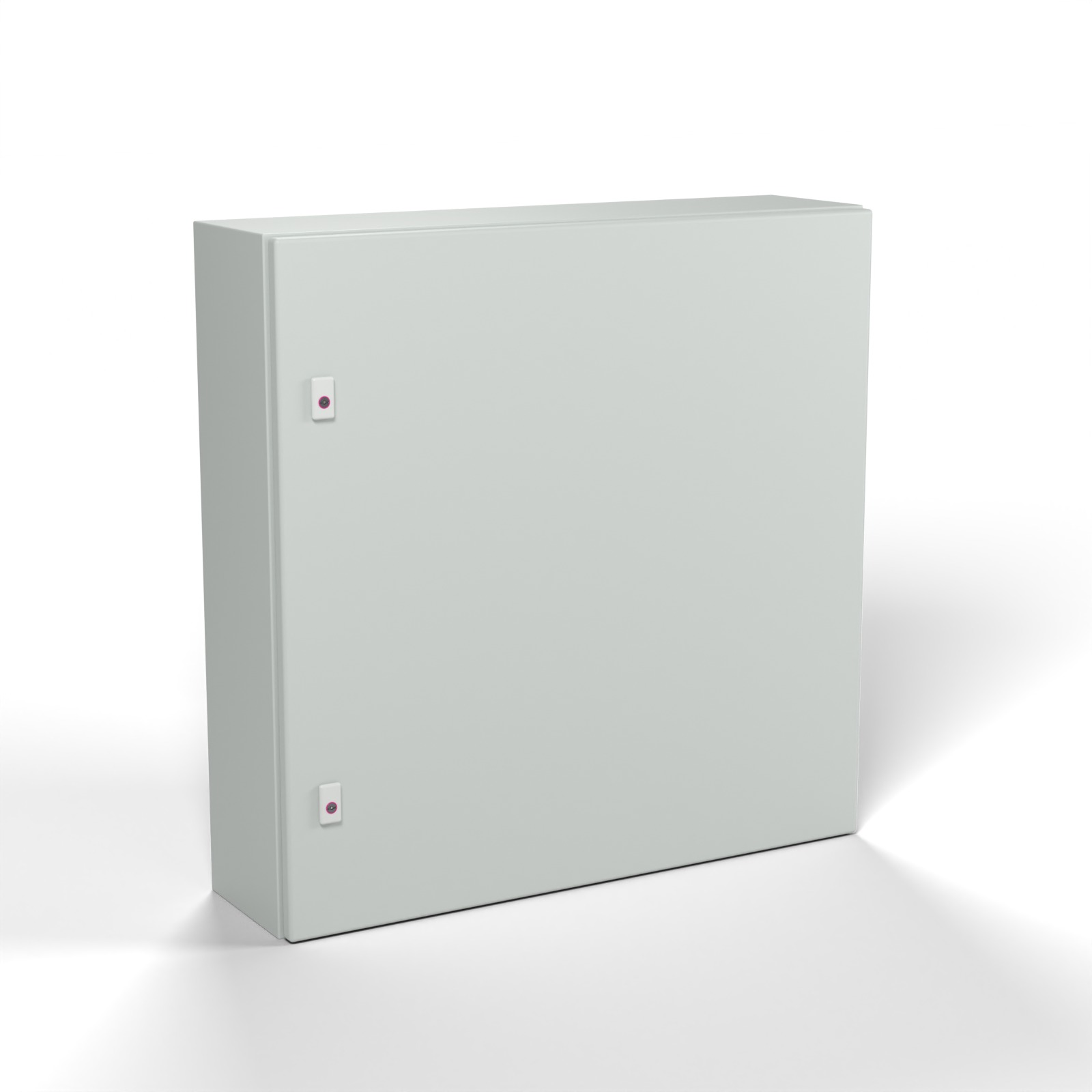

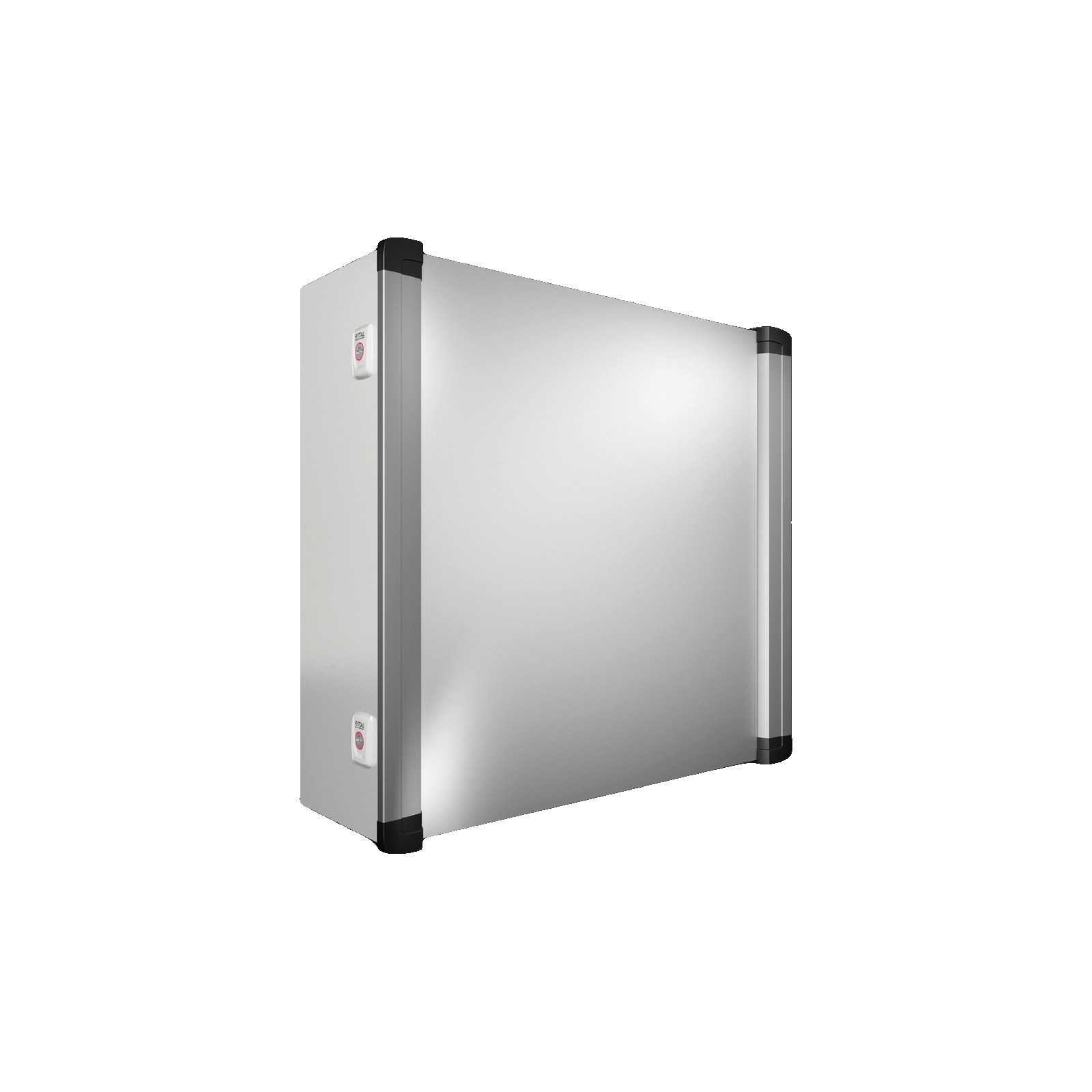

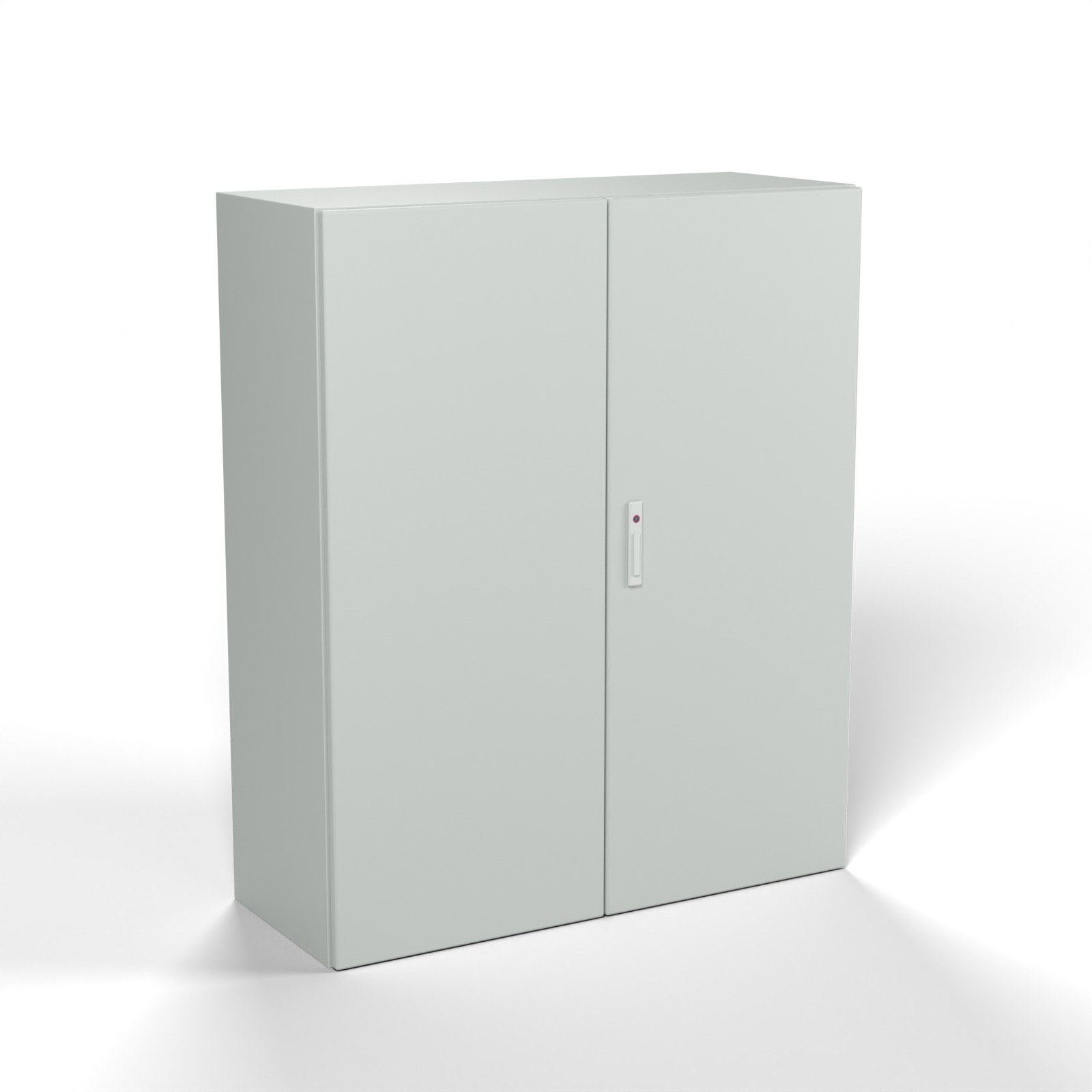

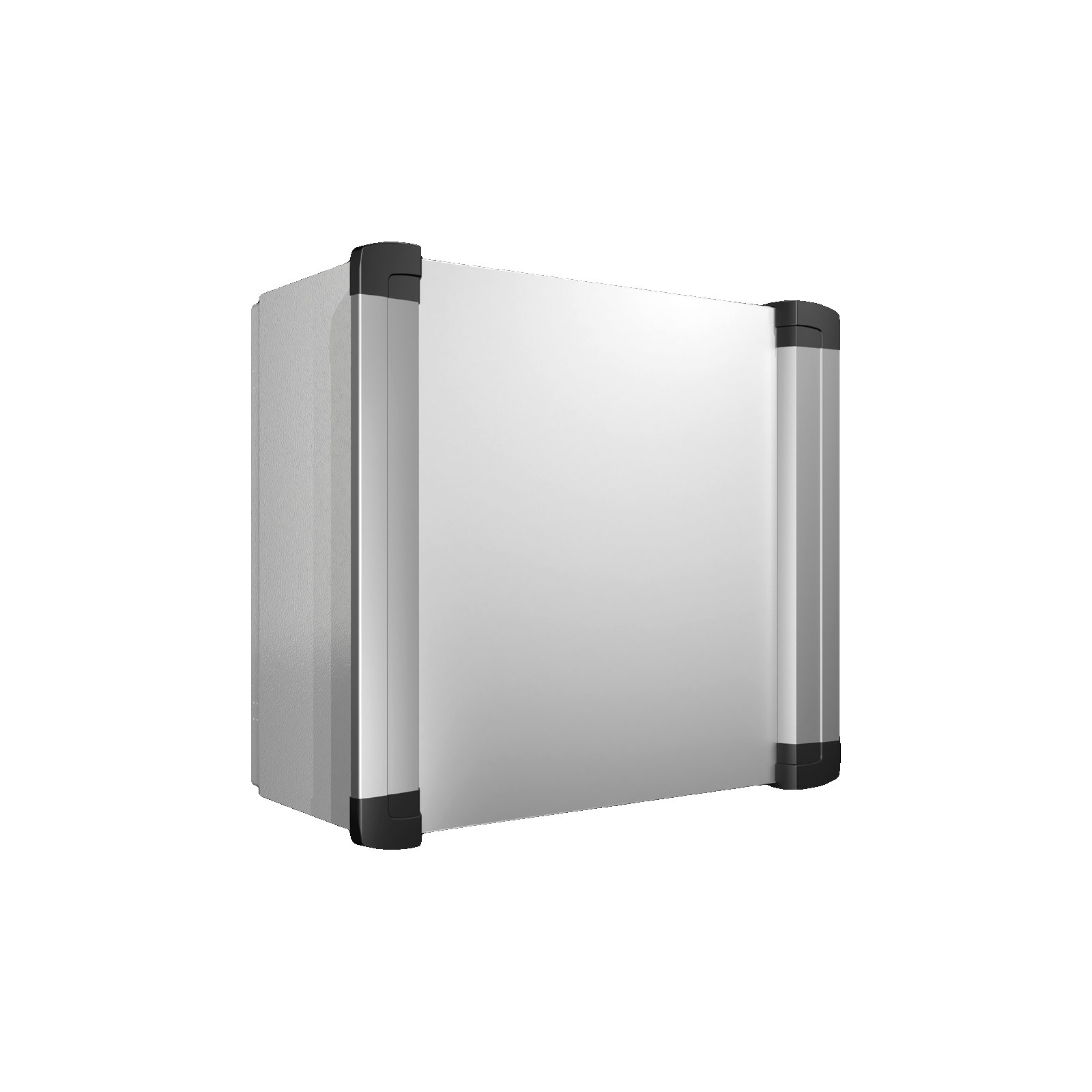

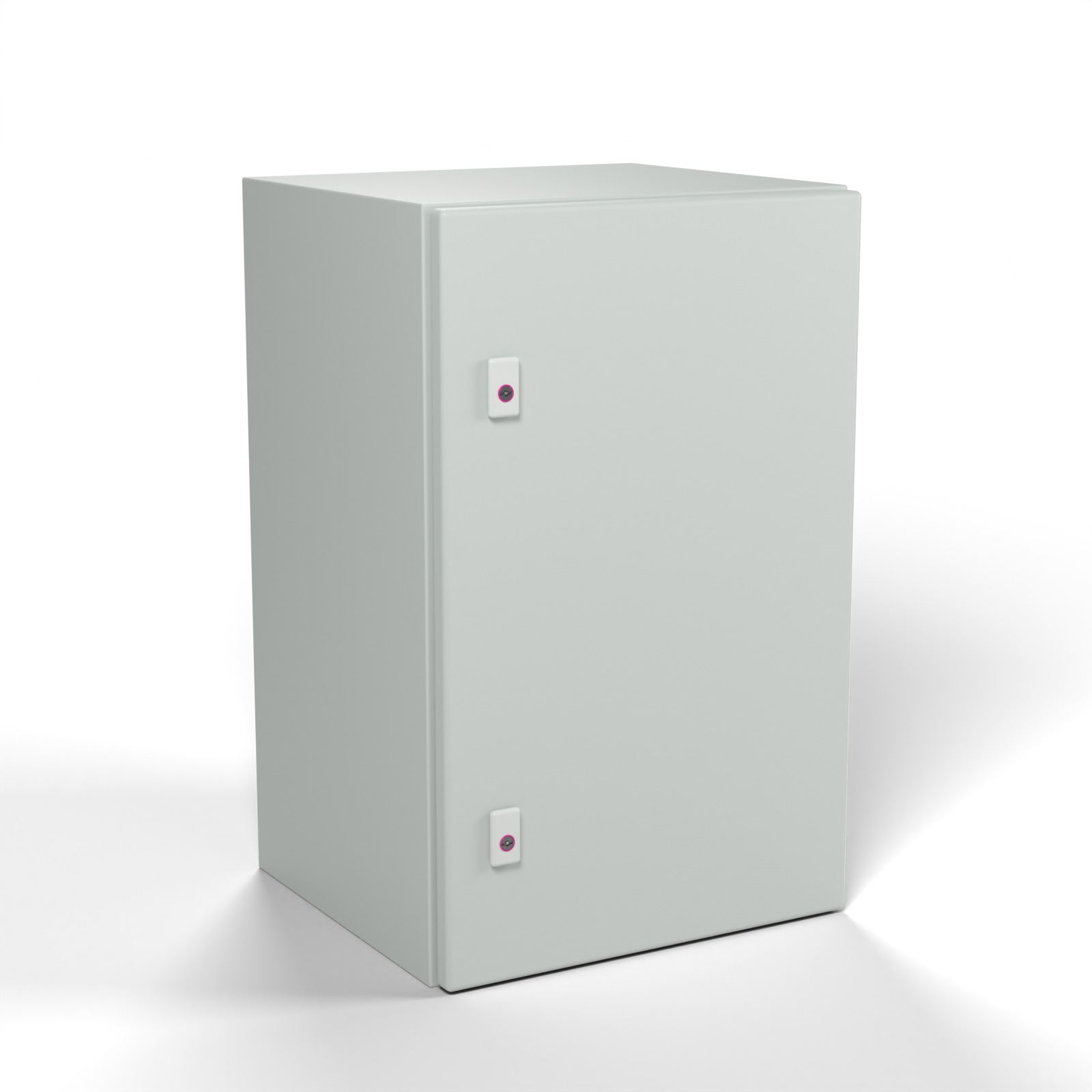

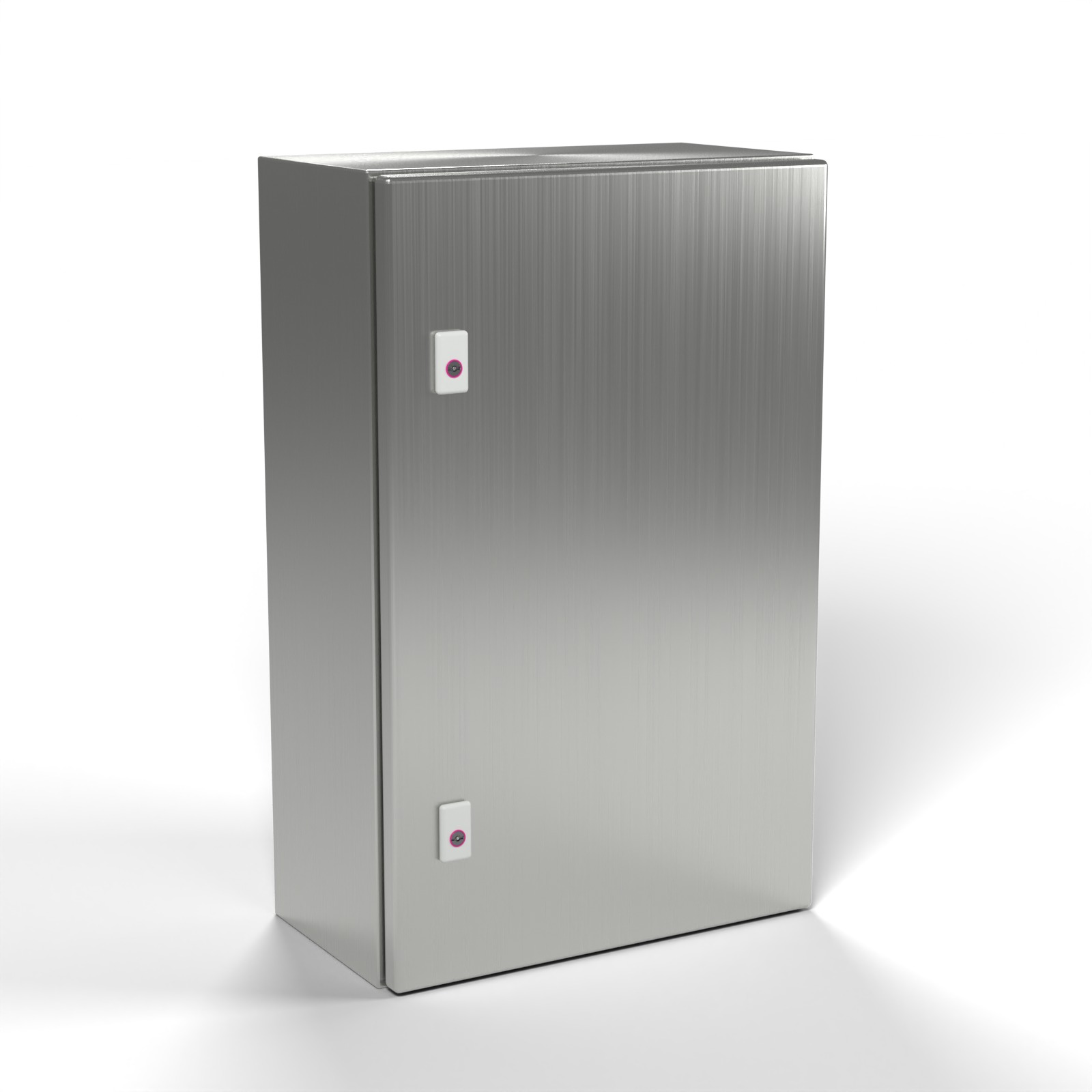

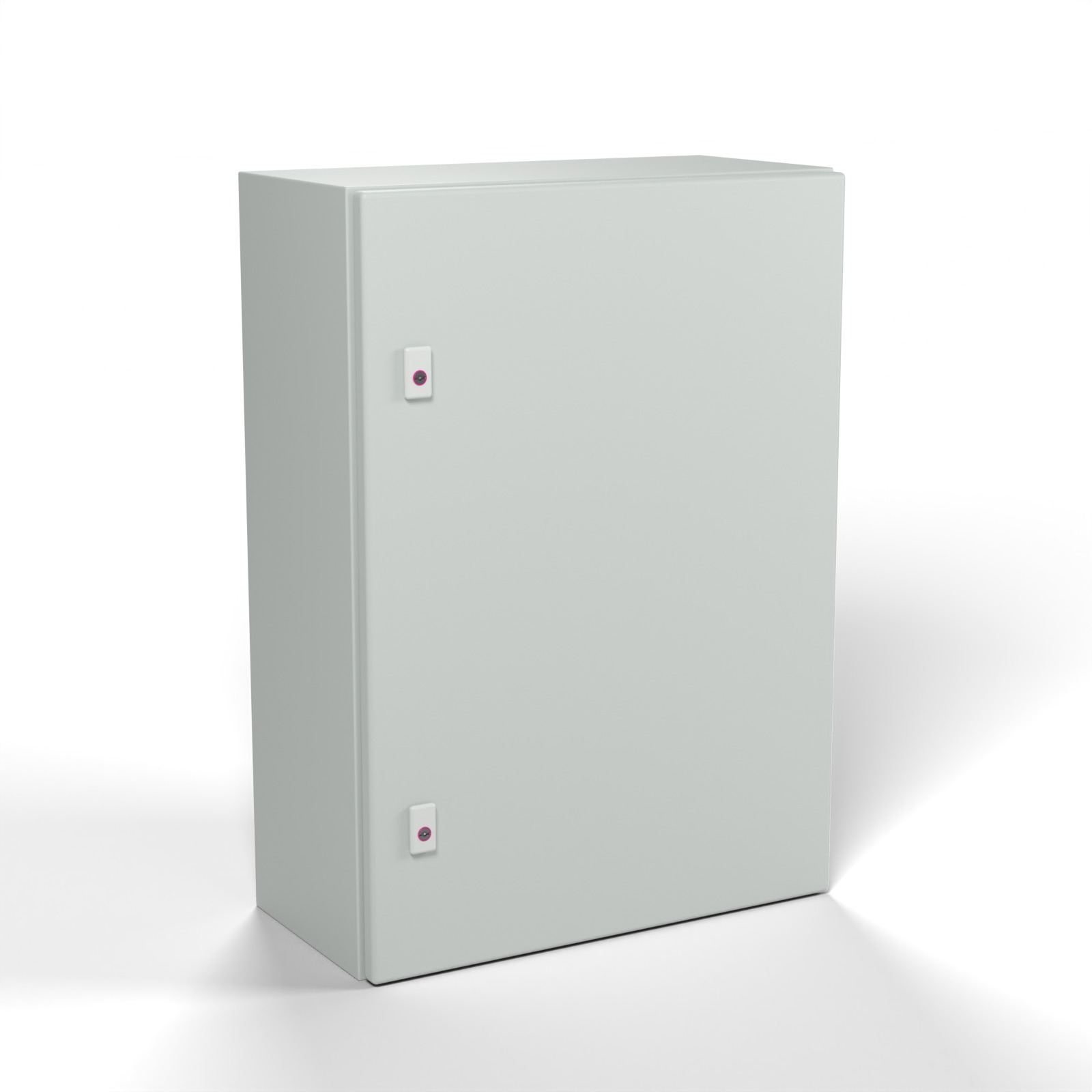

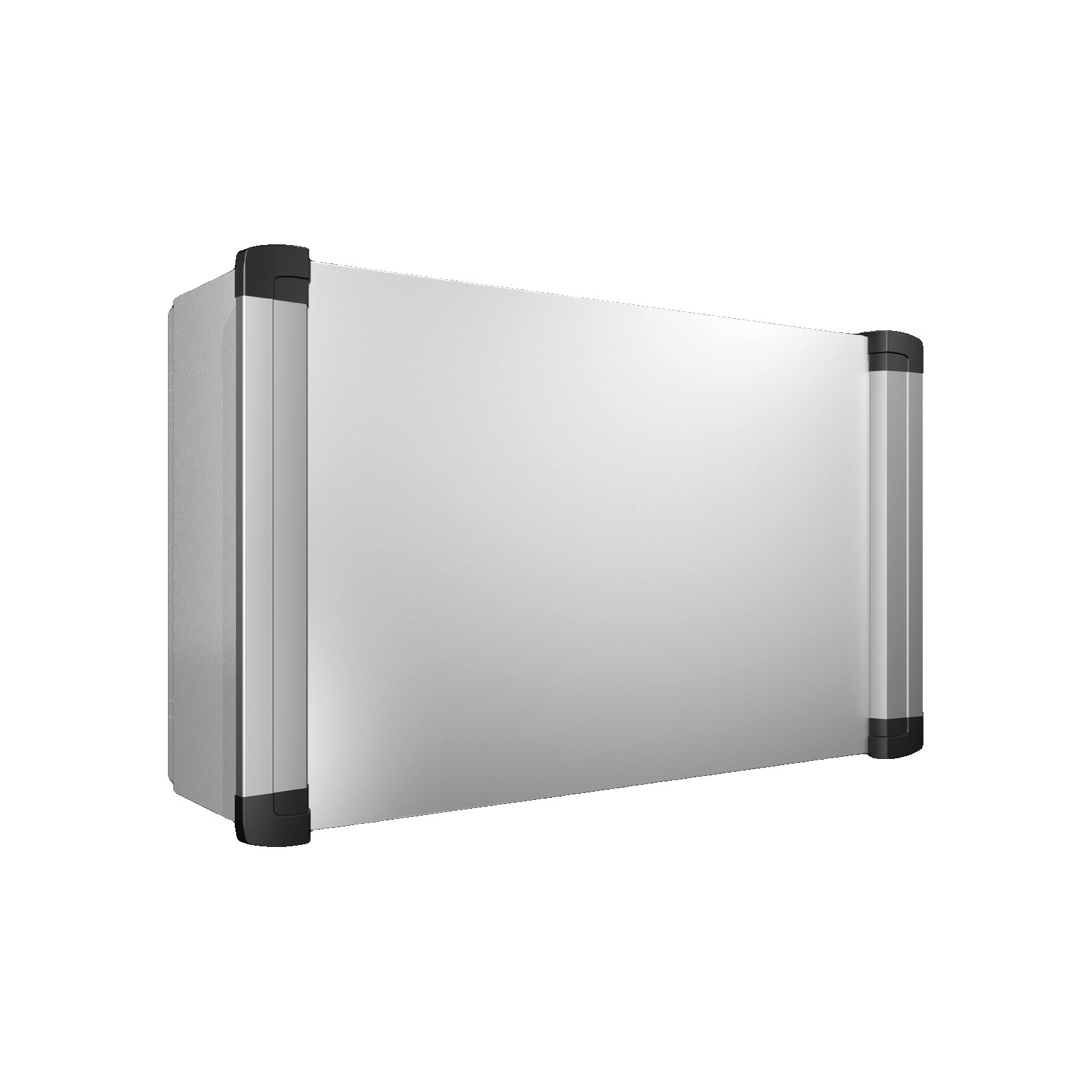

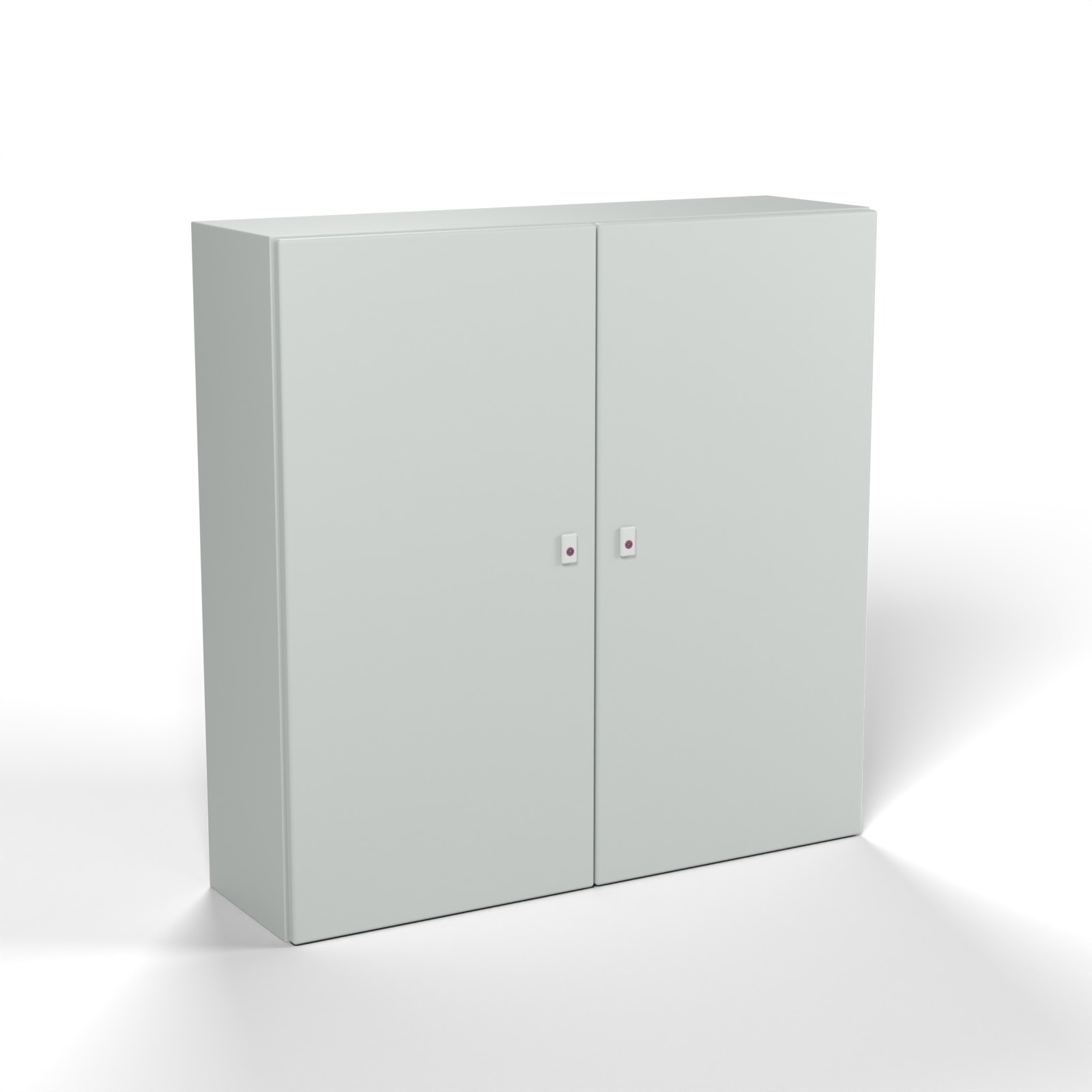

Rittal's accessory lists name this strap for 73 AX enclosures: 39 in sheet steel, 20 in stainless steel, 10 operating housings and 4 AX IT wall-mounted enclosures.
