Rittal 2505.510 Wall Angle, Sheet Steel, RAL 7035, for AX and KX Enclosures, Pack of 4
- Brand:
- Rittal
- Part number:
- 2505.510
- EAN:
- 4028177663510
Set of four sheet steel wall angles in RAL 7035 with assembly parts, for wall mounting Rittal AX and KX enclosures. Rittal part number 2505.510.
- Sheet steel, RAL 7035
- Pack of 4 with assembly parts
- Additional enclosure holes required
- For AX sheet steel and AX IT
17 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 0.4 kg |
|---|
Construction
| Colour | RAL 7035 |
|---|---|
| Material | Steel |
Fit
| Fits enclosure family | Rittal AX sheet steel, Rittal AX IT |
|---|
What's supplied
| Pack quantity | Pack of 4 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2505.510 |
| EAN | 4028177663510 |
| Range | Rittal AX |
| Type | Wall angle |
More technical data
| Material | sheet steel |
|---|---|
| Supply includes | assembly parts for mounting on the enclosure |
| Rittal note | additional holes required in the enclosure |
| To fit | AX, KX, AX wall-mounted enclosure 3-part |
Product details
The Rittal 2505.510 is a pack of four sheet steel wall angles in RAL 7035 for wall mounting AX and KX enclosures, supplied with the assembly parts for fixing them to the enclosure. Rittal notes that additional holes are required in the enclosure, so plan the drilling and restore the seal at each fixing before the enclosure goes into service.
Key features
- Sheet steel, RAL 7035
- Pack of 4
- Assembly parts for mounting on the enclosure included
- Additional holes required in the enclosure
Typical applications

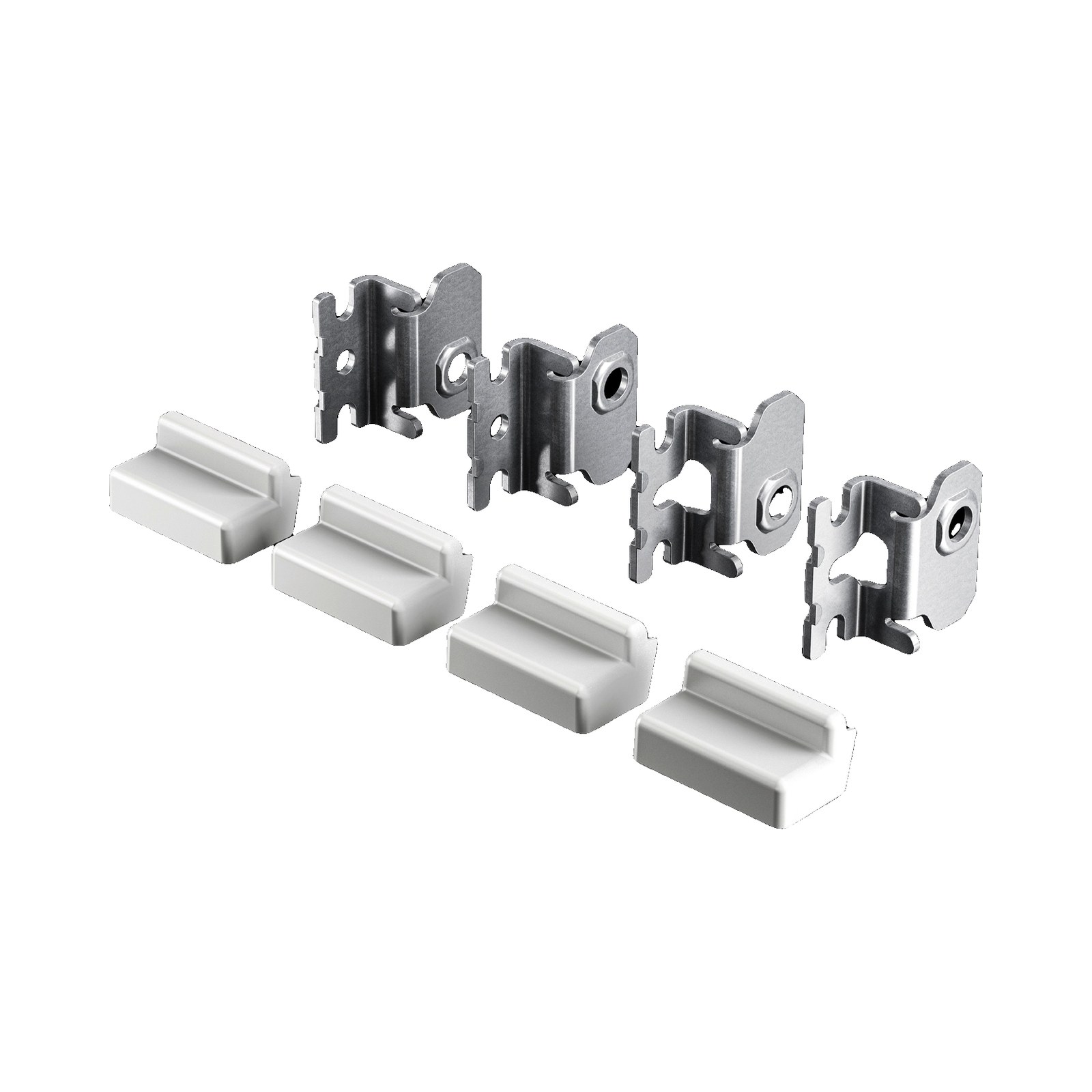

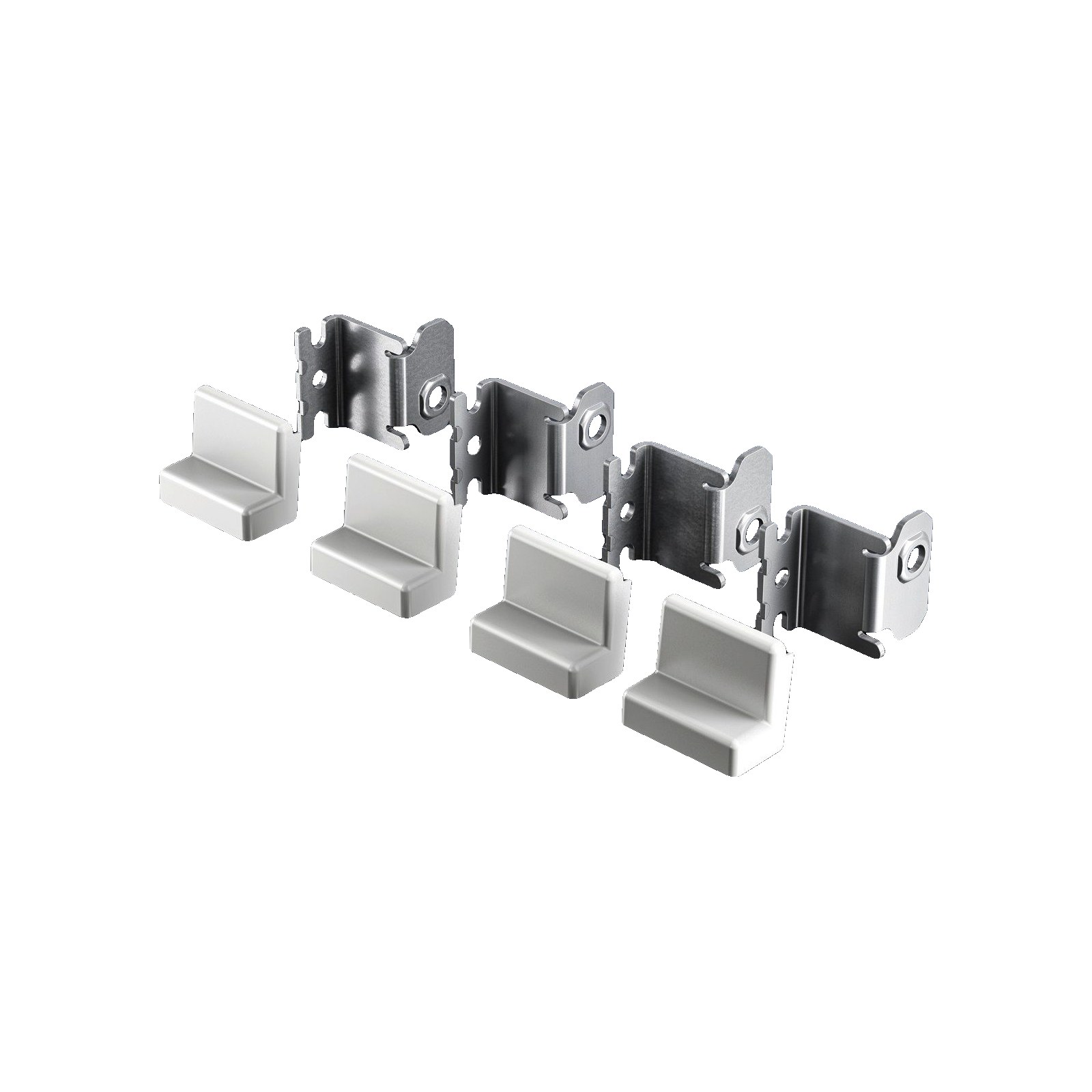

Wall mounting AX sheet steel enclosures and AX IT cabinets where an angle fixing is preferred, including the 3-part AX wall-mounted enclosure. Rittal also lists the zinc-plated wall mounting brackets 2508.020 (20 mm wall distance) and 2503.020 (40 mm) for the same enclosures.
Rittal's accessory lists match it to 43 AX enclosures: 39 sheet steel, for example 1033.000 (300 x 300 x 210 mm) and 1055.000 (800 x 600 x 300 mm), and 4 AX IT.
