Rittal 2476.100 Lock Cover for AX, Polyamide, RAL 7035, Pack of 2
- Brand:
- Rittal
- Part number:
- 2476.100
- EAN:
- 4028177940574

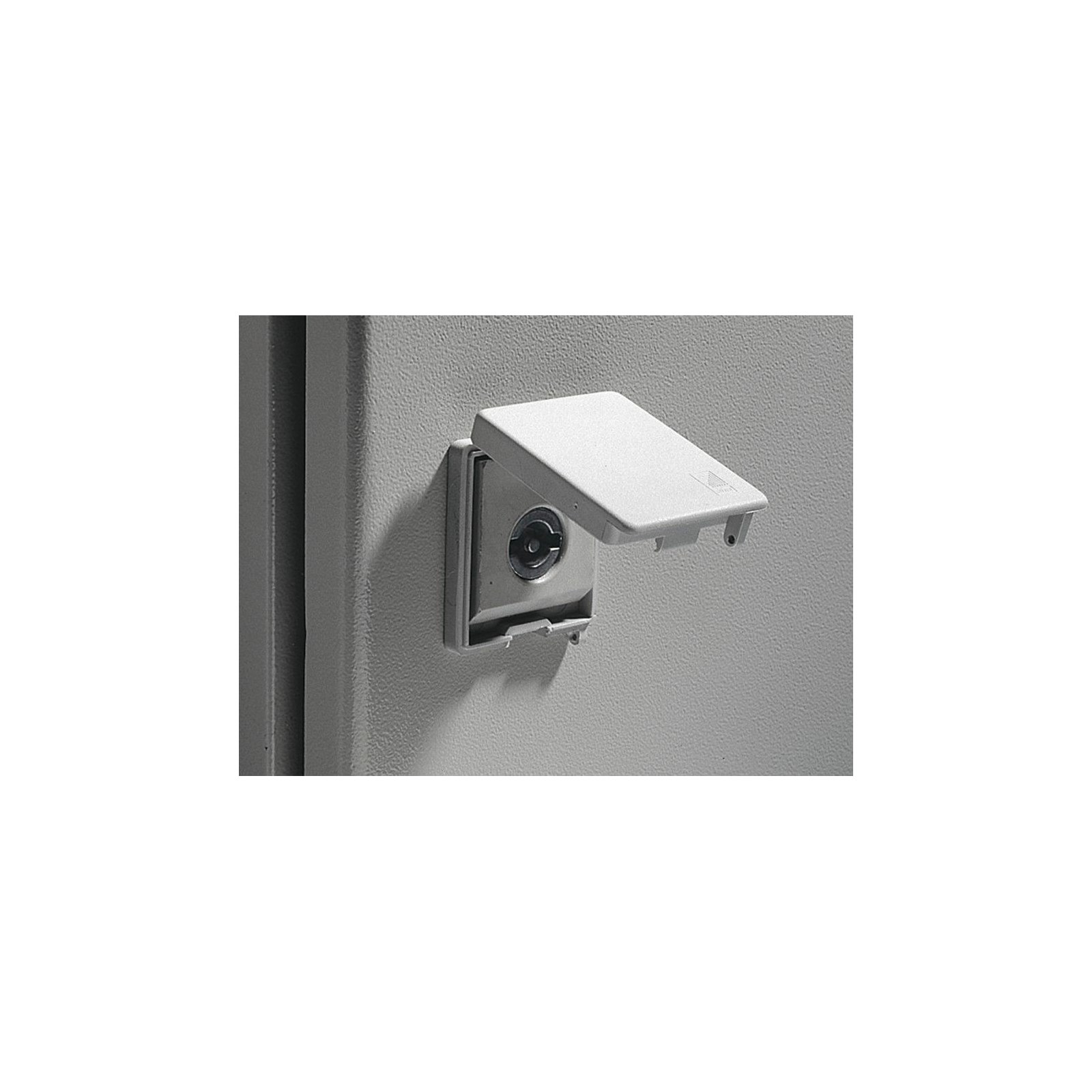

Polyamide lock cover in RAL 7035 for Rittal AX sheet steel enclosures, pack of 2. Rittal part number 2476.100.
- Polyamide, RAL 7035
- Pack of 2
- For AX sheet steel enclosures
- Also listed for AX IT, KX E-Box and AE
5 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 0.1 kg |
|---|
Construction
| Colour | RAL 7035 |
|---|---|
| Material | Plastic |
Fit
| Fits enclosure family | Rittal AX sheet steel |
|---|
What's supplied
| Pack quantity | Pack of 2 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2476.100 |
| EAN | 4028177940574 |
| Range | Rittal AX |
| Type | Lock cover |
More technical data
| Replaces Rittal part number | 2476.000 |
|---|---|
| Material | polyamide |
| To fit (Rittal) | AX, AX IT, prepared for a lead seal; KX E-Box; AE |
Product details
The Rittal 2476.100 is a polyamide lock cover in RAL 7035 for AX enclosures, supplied in pairs. Rittal's fitting data lists it for AX and AX IT enclosures prepared for a lead seal, and for KX E-Box and AE enclosures, so one part number covers several compact Rittal ranges.
Key features
- Polyamide, RAL 7035
- Pack of 2
- Listed for AX and AX IT (prepared for a lead seal), KX E-Box and AE
- Matched to 30 AX sheet steel enclosures
Typical applications
Enclosures where the lock should be covered, for example panels that must be sealed between inspections or kept closed in shared plant areas.
Rittal's accessory lists match it to 30 AX sheet steel enclosures, for example 1033.000 (300 x 300 x 210 mm), 1045.000 (400 x 500 x 210 mm) and 1055.000 (800 x 600 x 300 mm). For a metal alternative, see the nickel-plated die-cast zinc lock cover 2493.000.
Add it to your cart, or ask us about project quantities.
