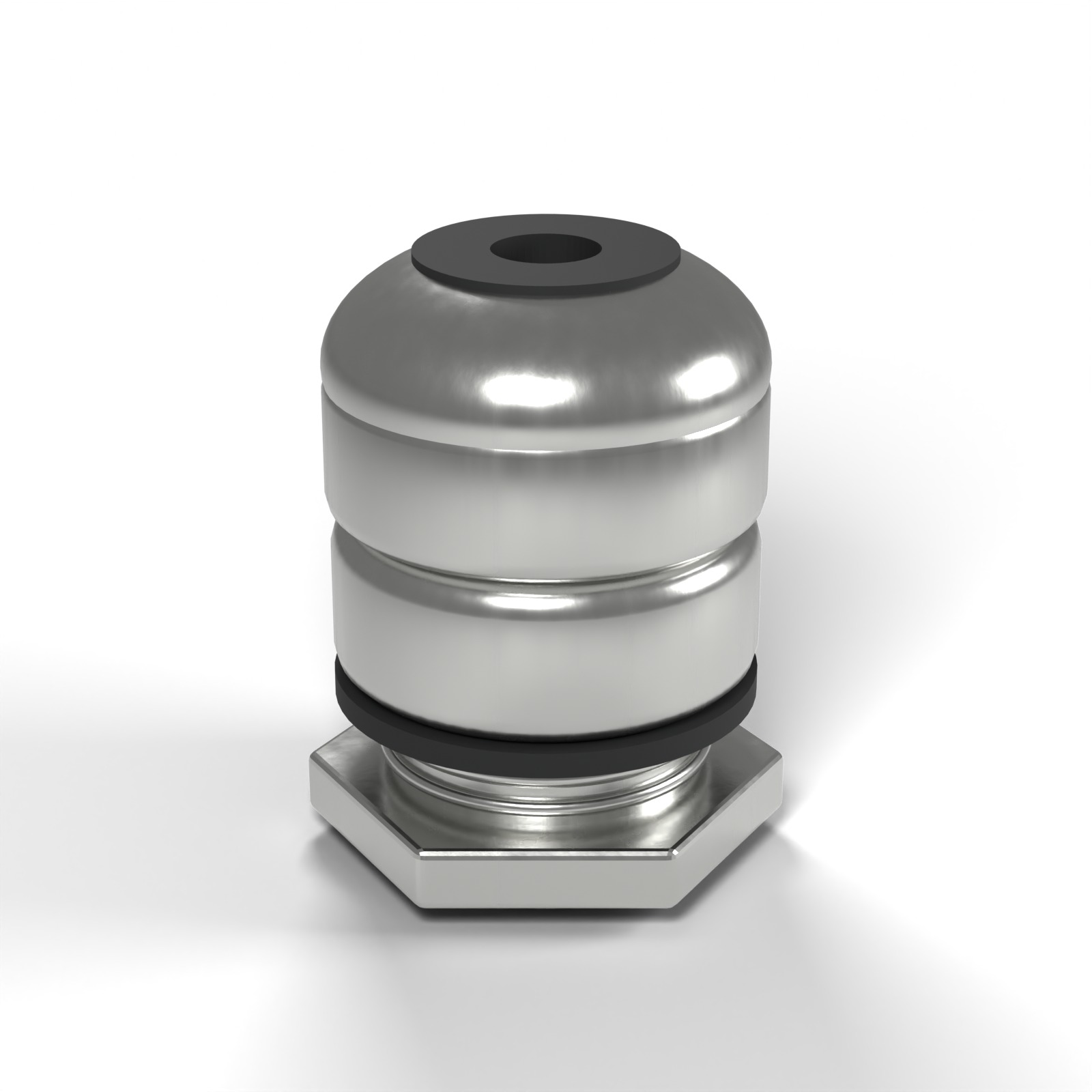

Illustration - our own render; see the datasheet for exact details.
Rittal 2410.011 HD Stainless Steel Cable Gland M16 x 1.5, 5-10 mm Cable, Pack of 5
- Brand:
- Rittal
- Part number:
- 2410.011
- EAN:
- 4028177928718
HD cable gland with an M16 x 1.5 thread for 5 to 10 mm cables, stainless steel 1.4305 nut and FDA-compliant EPDM seal, pack of 5. Rittal part number 2410.011.
- M16 x 1.5 thread, 5-10 mm cable
- Stainless steel 1.4305 nut, FDA-compliant EPDM seal
- IP69 and IPX8 (5 bar, 30 min)
- -20 °C to +100 °C
- Pack of 5, lock nut supplied
12 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP69 |
|---|
Dimensions
| Weight | 0.1 kg |
|---|---|
| Thread size | M16 |
| Cable diameter | up to 6 mm, 6-12 mm |
| Min cable diameter | 5 mm |
| Max cable diameter | 10 mm |
Construction
| Material | Stainless steel |
|---|
Fit
| Fits enclosure family | Rittal AX stainless steel |
|---|
What's supplied
| Pack quantity | Pack of 5 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2410.011 |
| EAN | 4028177928718 |
| Range | Rittal AX |
| Type | Cable gland |
More technical data
| Thread | M16 x 1.5 |
|---|---|
| For cable diameters | 5 to 10 mm |
| Design | Standard |
| Material | nut stainless steel 1.4305 (AISI 303); seal EPDM, compliant with FDA 21 CFR 177.2600 |
| Operating temperature range | -20 °C to +100 °C |
| Supply includes | lock nut |
Product details
The Rittal 2410.011 is an HD cable gland with an M16 x 1.5 thread, taking cables from 5 to 10 mm in diameter. The nut is stainless steel 1.4305 (AISI 303), the seal is EPDM compliant with FDA 21 CFR 177.2600, and the gland is rated IP69 and IPX8 (5 bar, 30 min), which makes it a natural partner for AX stainless steel enclosures in hygienic and washdown areas.
Key features
- Standard design
- M16 x 1.5 thread, for cable diameters of 5 to 10 mm
- Stainless steel 1.4305 (AISI 303) nut
- EPDM seal compliant with FDA 21 CFR 177.2600
- IP69 and IPX8 (5 bar, 30 min) to IEC 60529
- Supplied with lock nut, pack of 5
Typical applications
Rittal names clean room technology such as pharmaceuticals, biotechnology and the chemical industry as typical applications. It suits cable entries into stainless enclosures that are cleaned regularly, where the entry has to cope with the same cleaning regime as the enclosure itself. The M16 size covers small control and signal cables.
Compliance
IP69 and IPX8 (5 bar, 30 min) to IEC 60529. Seal material compliant with FDA 21 CFR 177.2600.
Rittal's accessory lists match this gland to 20 AX stainless steel enclosures, for example 1003.000 (300 x 300 x 210 mm), 1010.000 (600 x 600 x 210 mm) and 1013.000 (500 x 500 x 300 mm). Check that the entry hole in your enclosure or gland plate suits an M16 x 1.5 gland before ordering.
