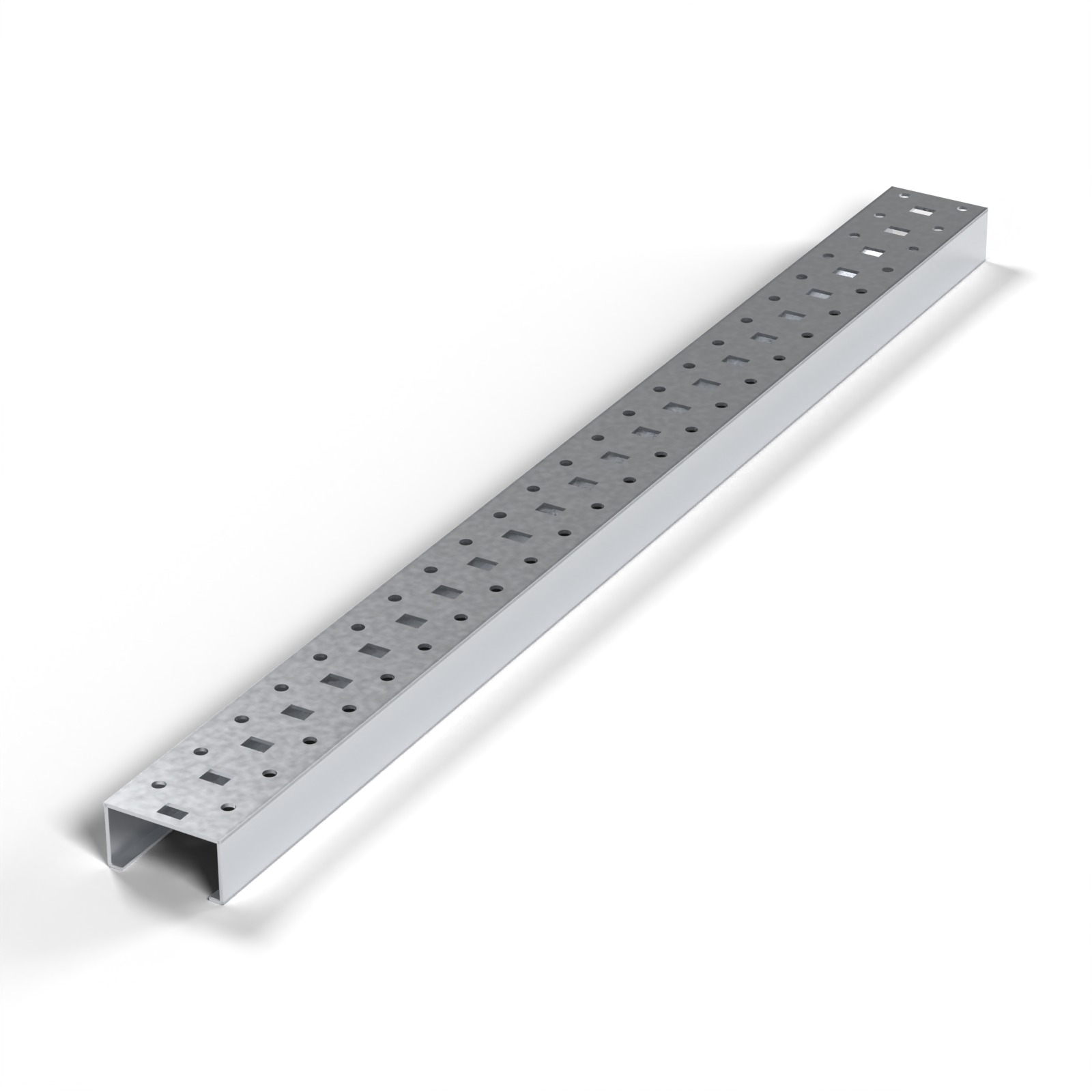

Illustration - our own render; see the datasheet for exact details.
Rittal 8617.800 VX Support Rail 48 x 26 mm for AX 600 mm Enclosure Width, Pack of 2
- Brand:
- Rittal
- Part number:
- 8617.800
- EAN:
- 4028177919518
Pack of two VX support rails, 48 x 26 mm, in zinc-plated sheet steel for enclosures 600 mm wide, listed as accessories for Rittal AX enclosures. Rittal part number 8617.800.
- 48 x 26 mm support rail
- For 600 mm enclosure width
- Fits AX with the interior and base configuration rails
- Zinc-plated sheet steel
- Pack of 2
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 2.816 kg |
|---|
Construction
| Material | Steel |
|---|
Fit

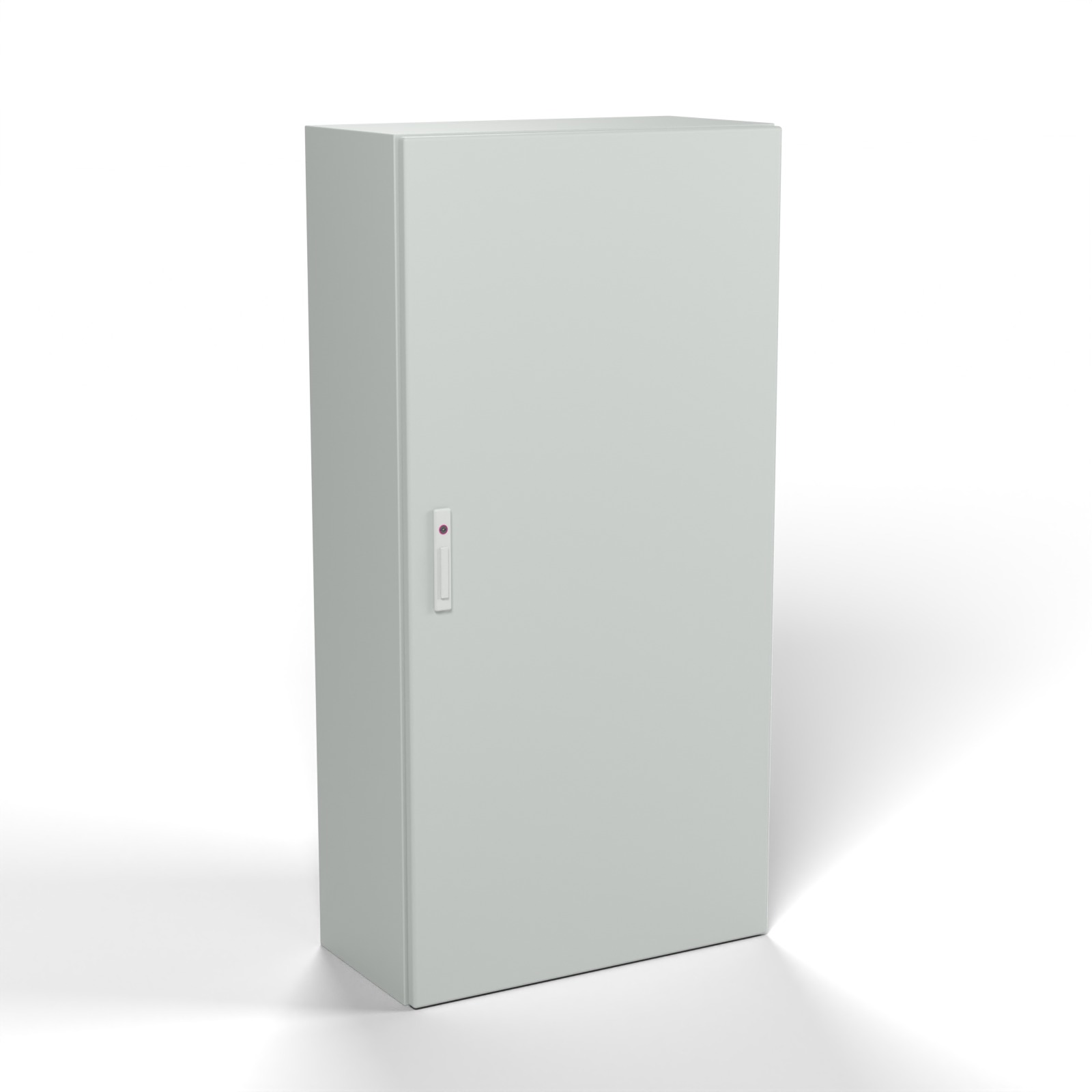

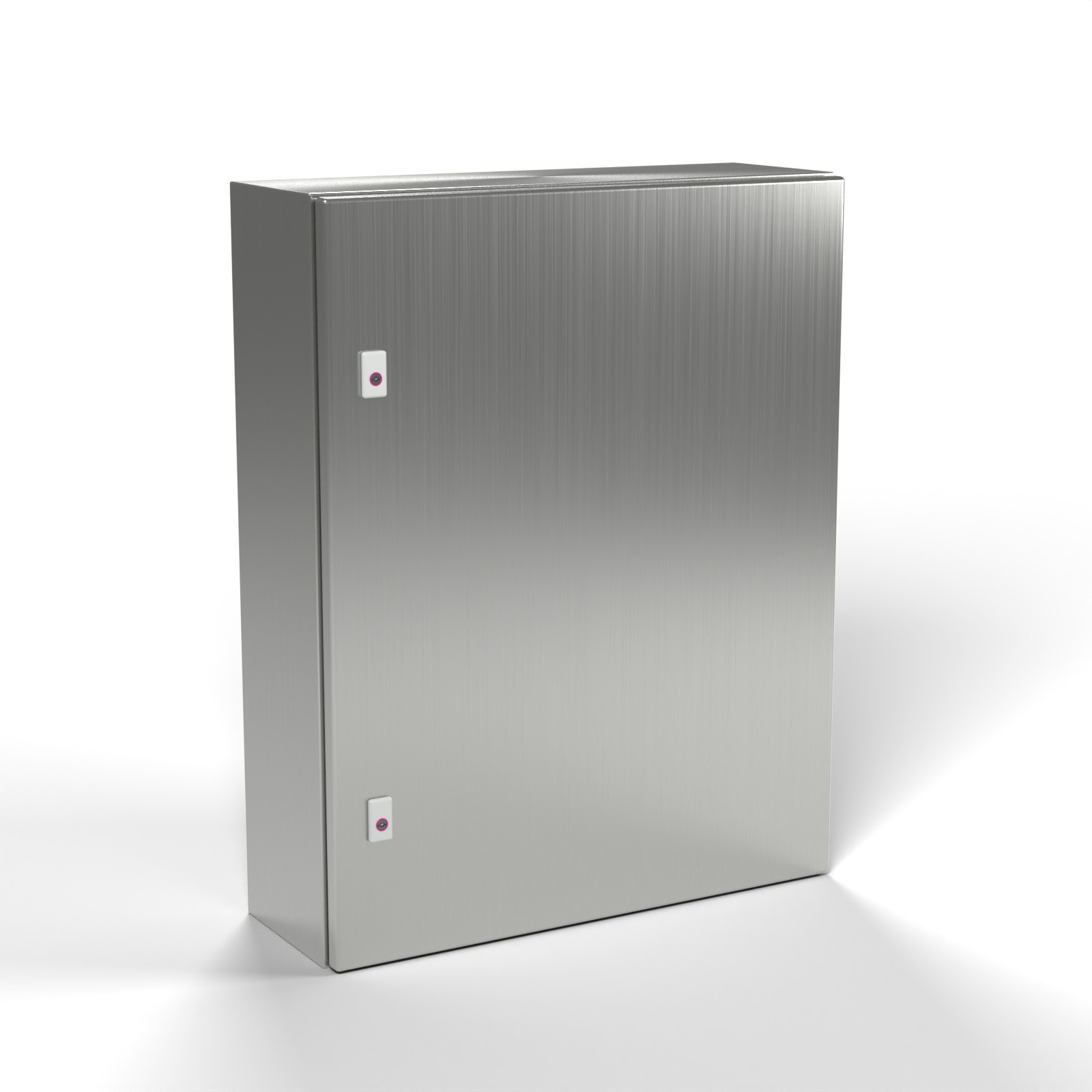

| Fits enclosure family | Rittal AX sheet steel, Rittal AX stainless steel |
|---|---|
| Fits enclosure width | 600 mm |
What's supplied
| Pack quantity | Pack of 2 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 8617.800 |
| EAN | 4028177919518 |
| Range | Rittal AX |
| Type | Support rail |
More technical data
| Profile | 48 x 26 mm |
|---|---|
| Enclosure width | 600 mm |
| AX installation | with AX interior installation rail and AX base configuration rail |
| Material | sheet steel, zinc-plated |
| Supply includes | assembly parts |
| Pack weight | 2.816 kg |
Product details
The Rittal 8617.800 is a pack of two VX support rails with a 48 x 26 mm profile for enclosures 600 mm wide, made from zinc-plated sheet steel and supplied with assembly parts. Rittal gives an installation option for AX compact enclosures as well as for its VX systems.
Key features
- 48 x 26 mm support rail for a 600 mm enclosure width
- AX: fitted with the AX interior installation rail and the AX base configuration rail
- VX: fitted on the inner mounting level and in the base
- Zinc-plated sheet steel, assembly parts included
- Pack of 2
Typical applications

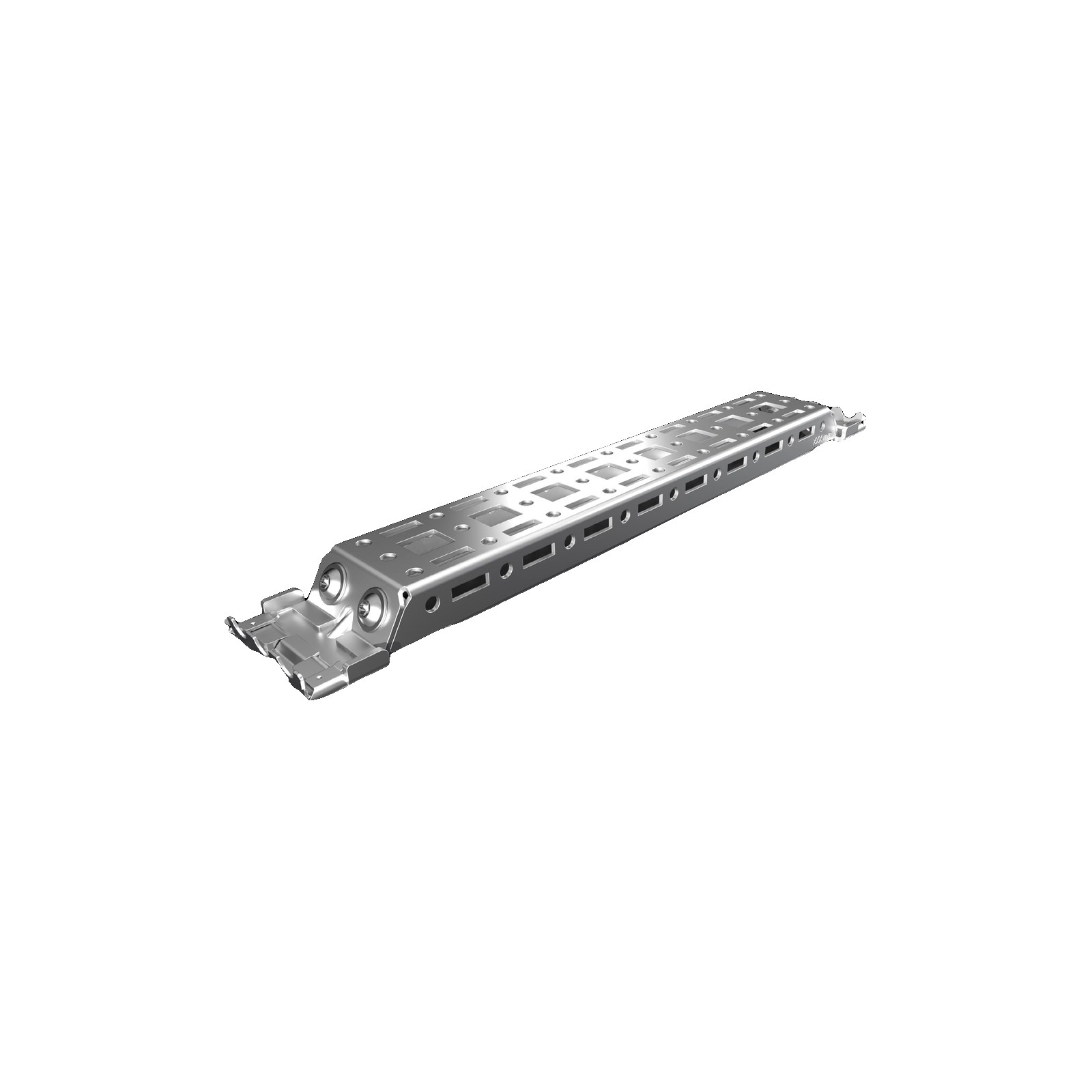

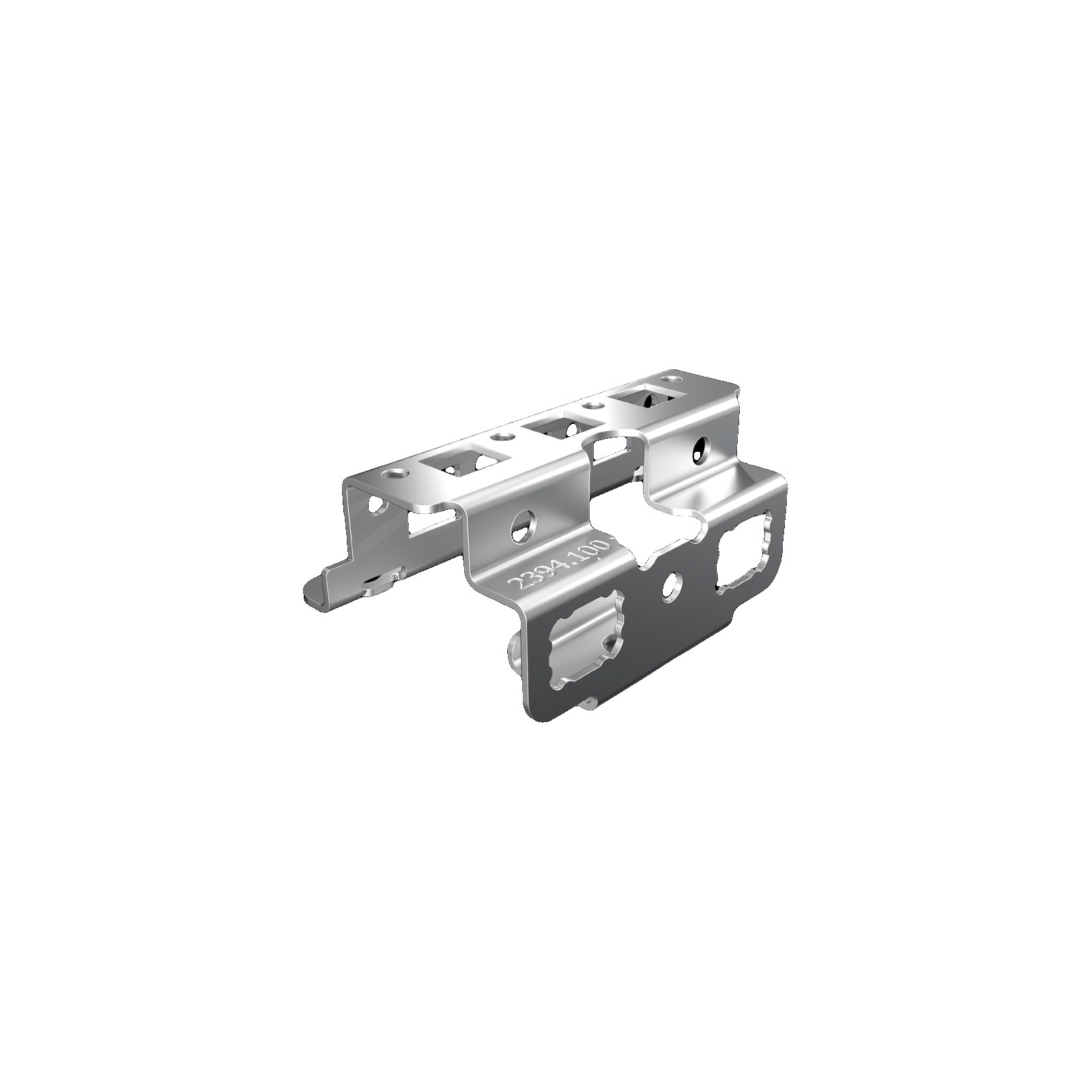

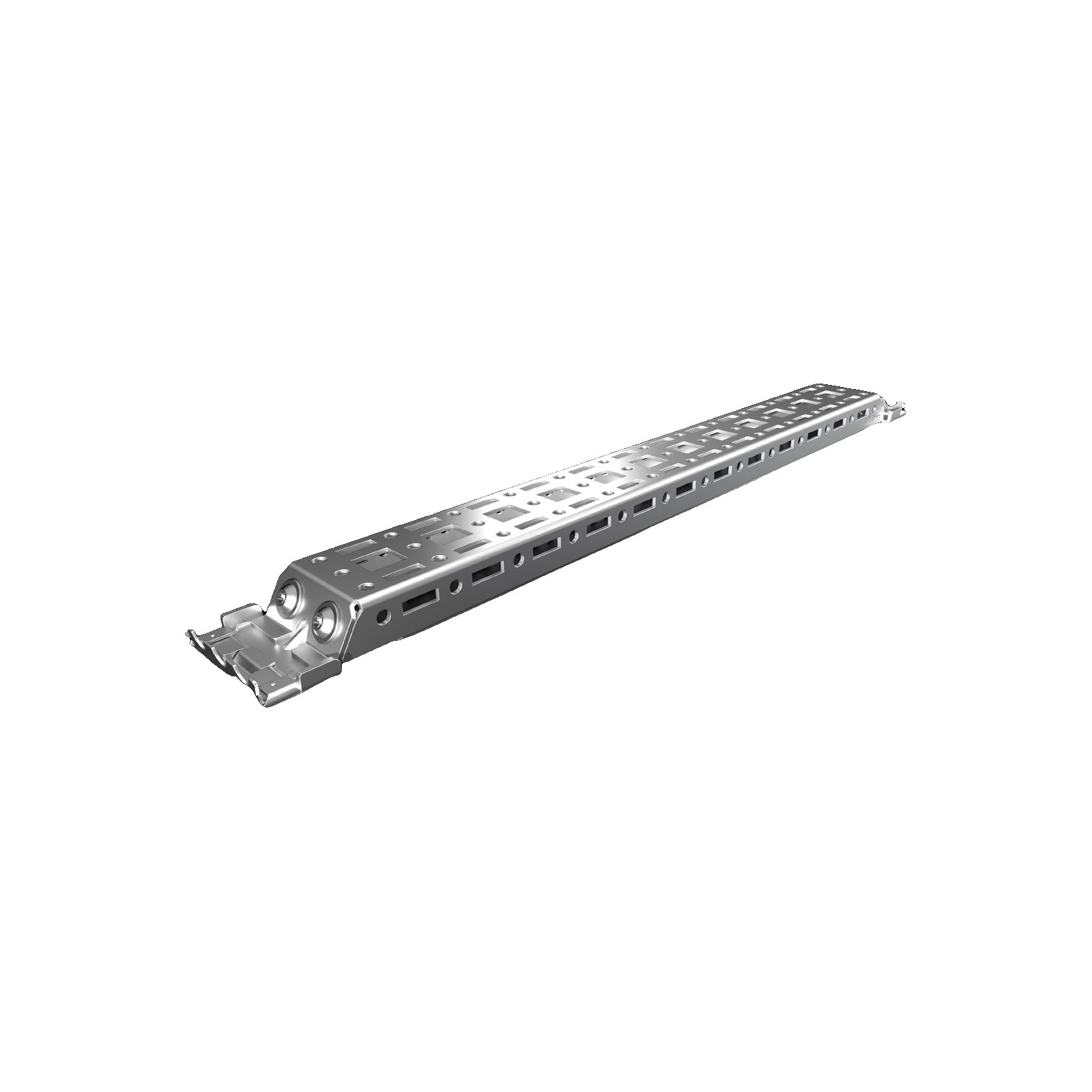

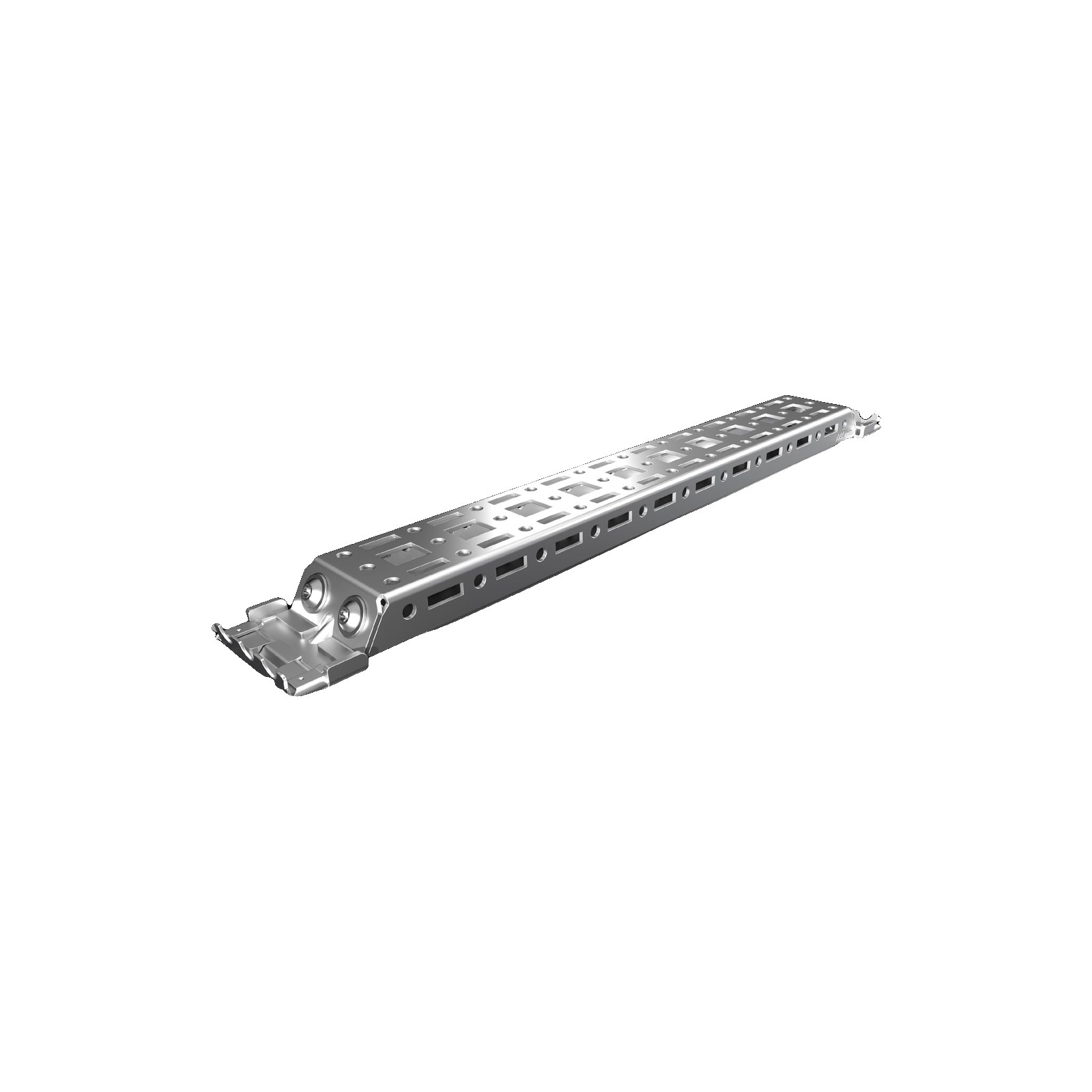

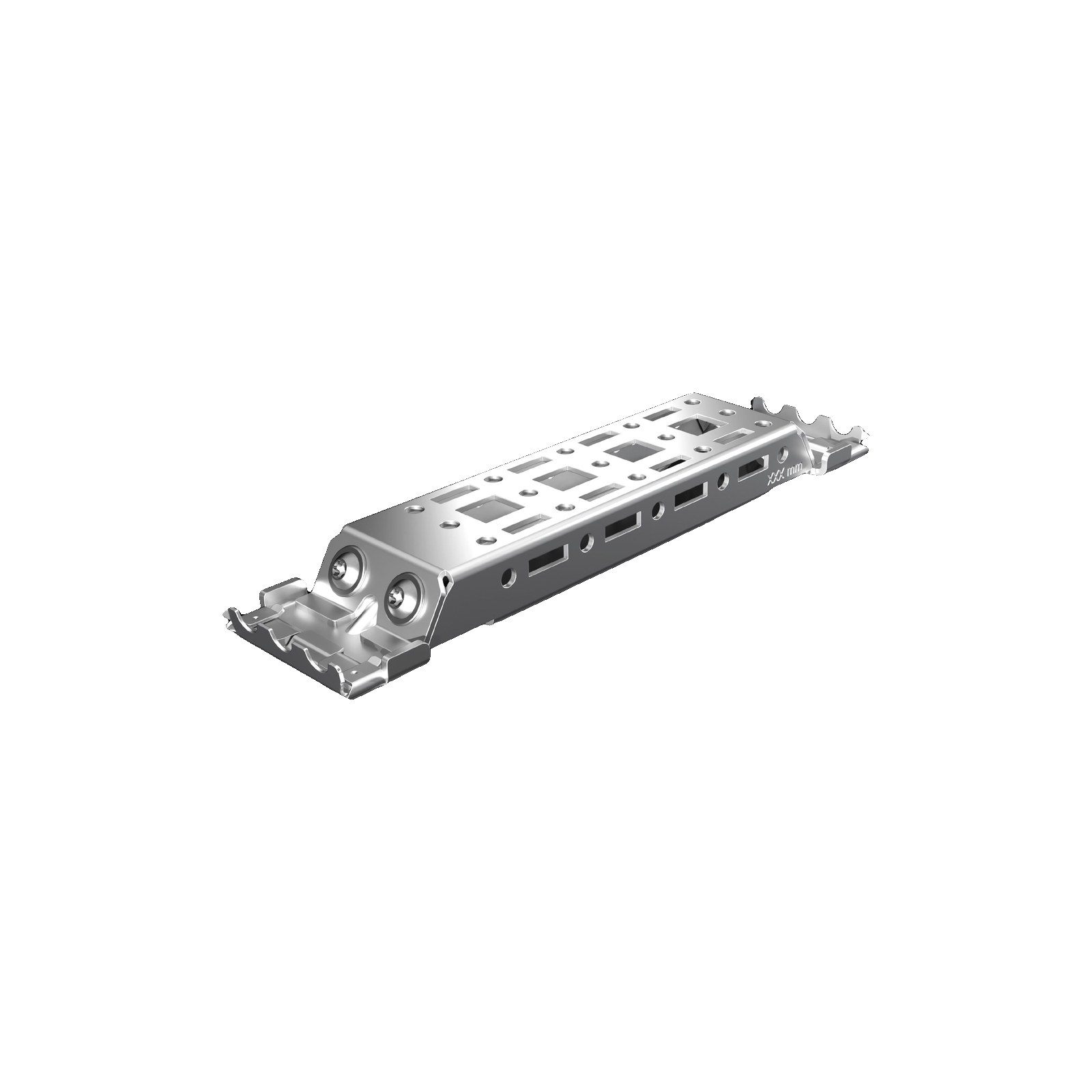

Support rails span the width of the enclosure and give a horizontal member on which components and further interior parts can be mounted. In an AX enclosure 600 mm wide, the rail is fitted in conjunction with the AX interior installation rail, chosen by enclosure depth, and the AX base configuration rail 2394.100. Rittal lists the same rail for VX enclosures and for VX SE enclosures (with the adaptor rail for VX compatibility) of the same width, and for CX one-piece consoles and CX pedestals.

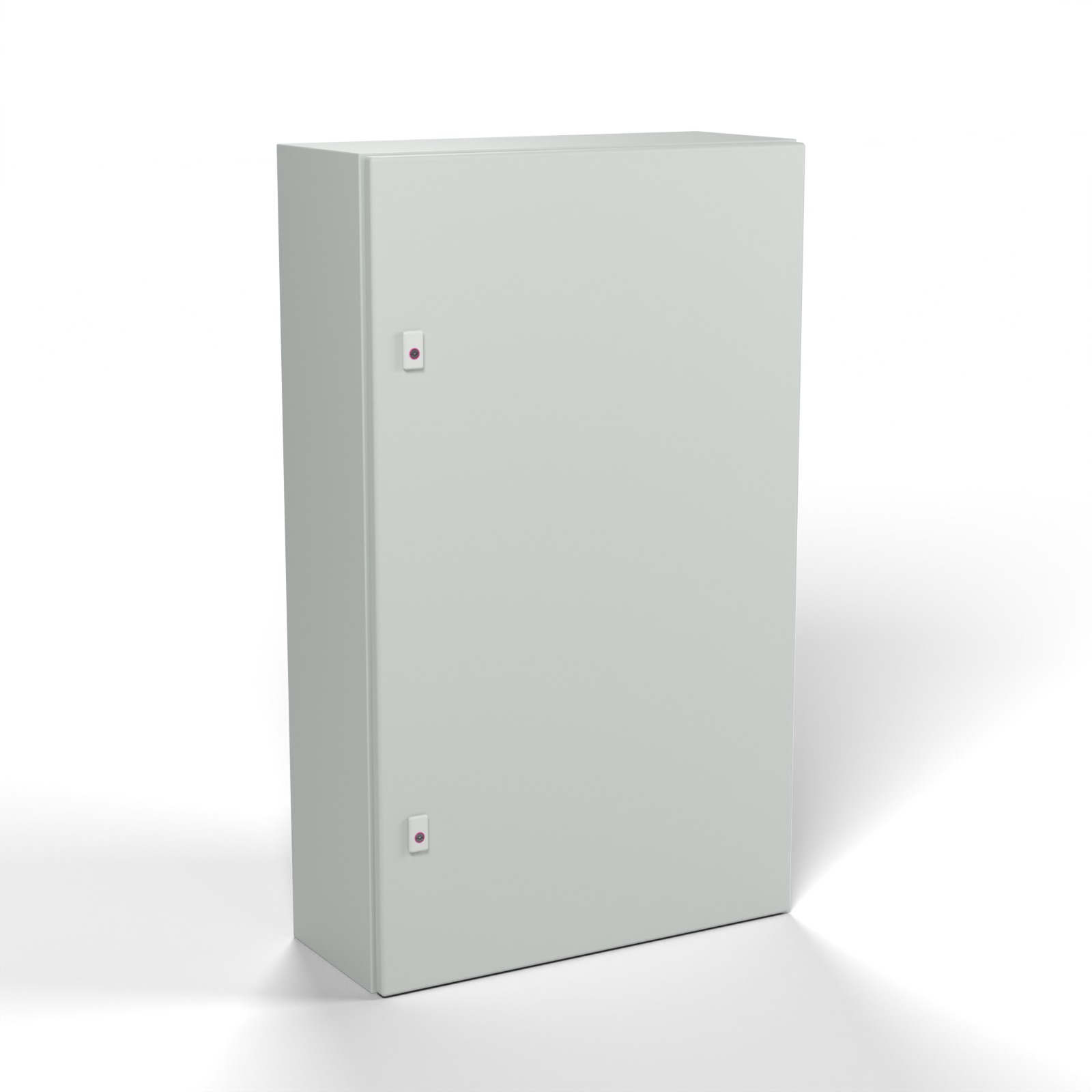

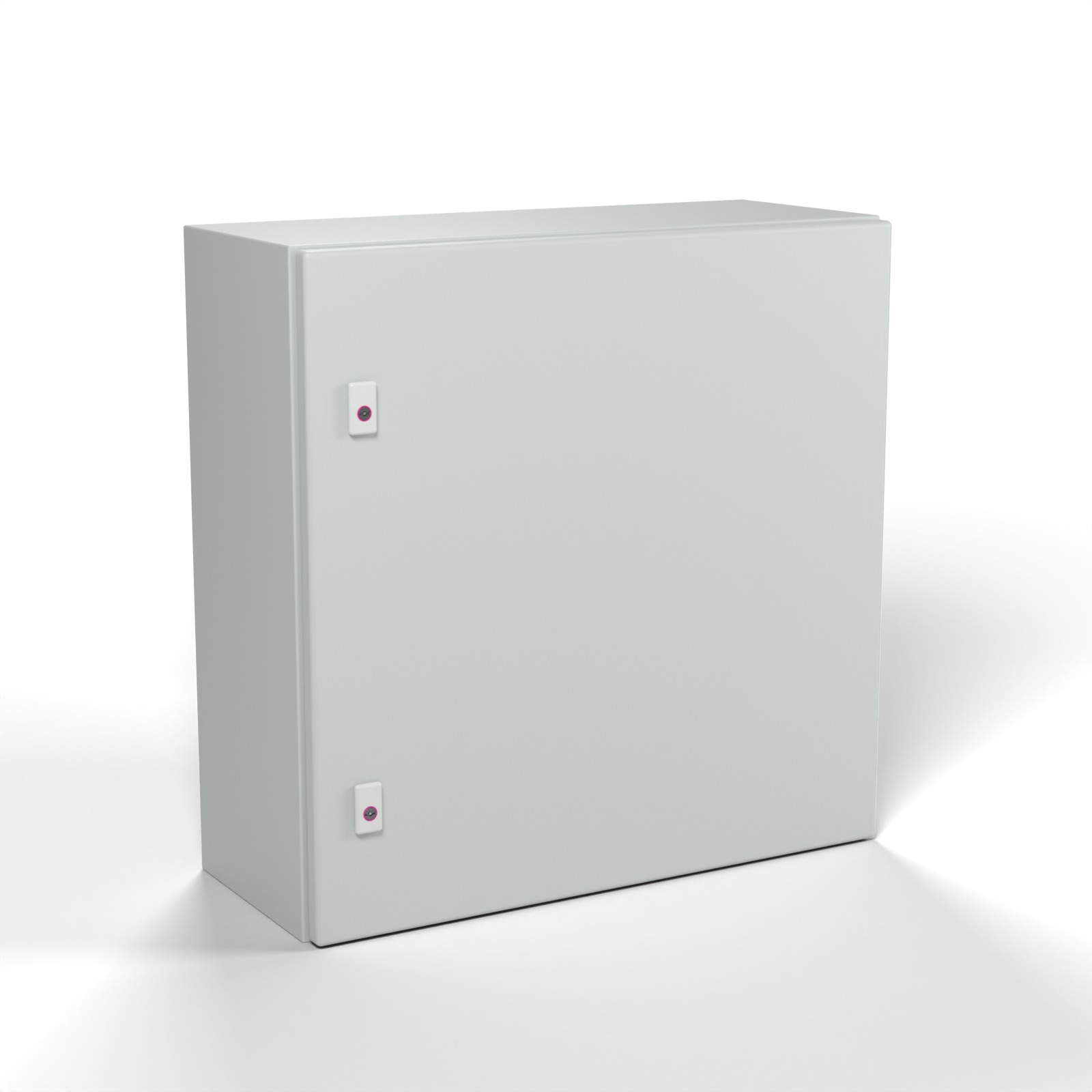

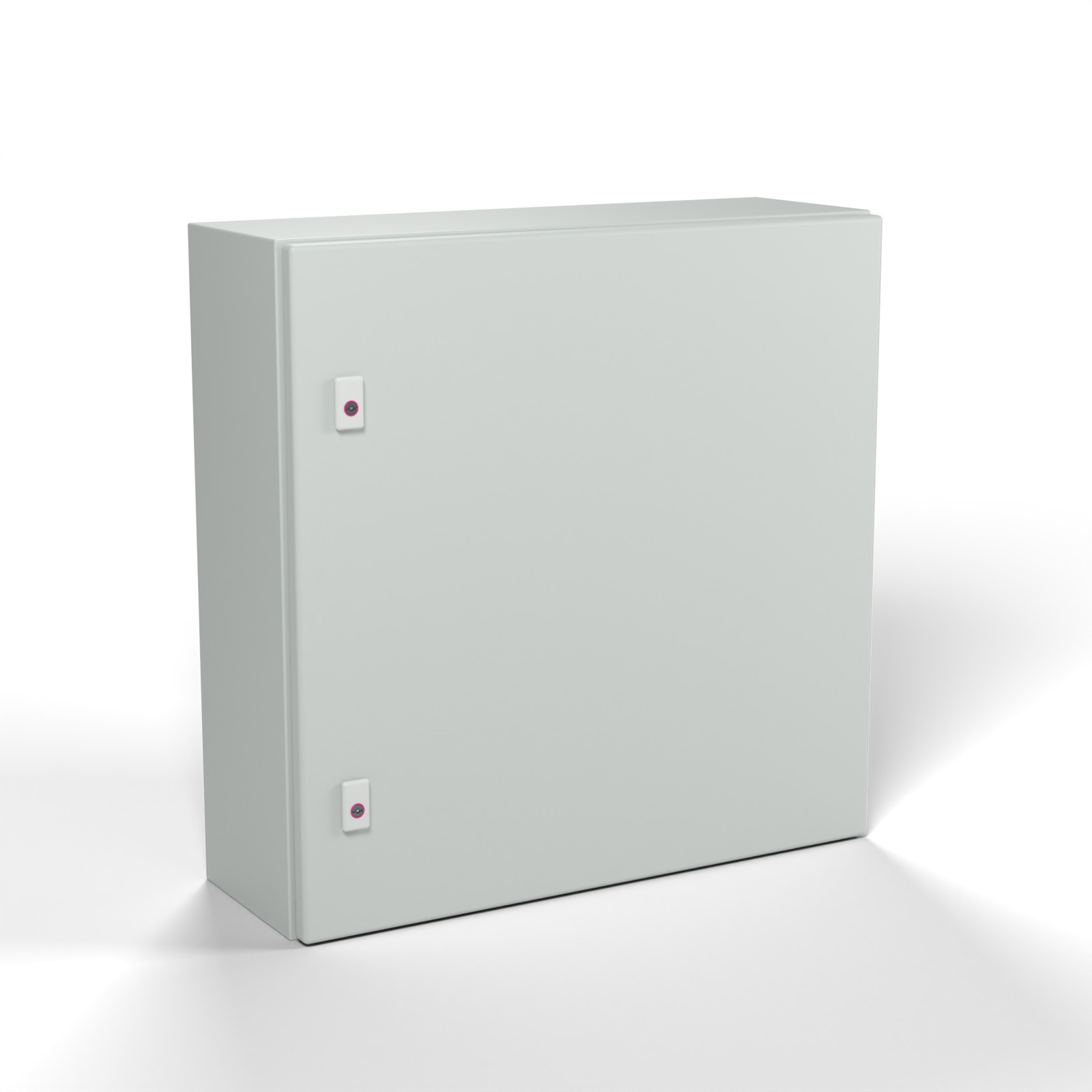

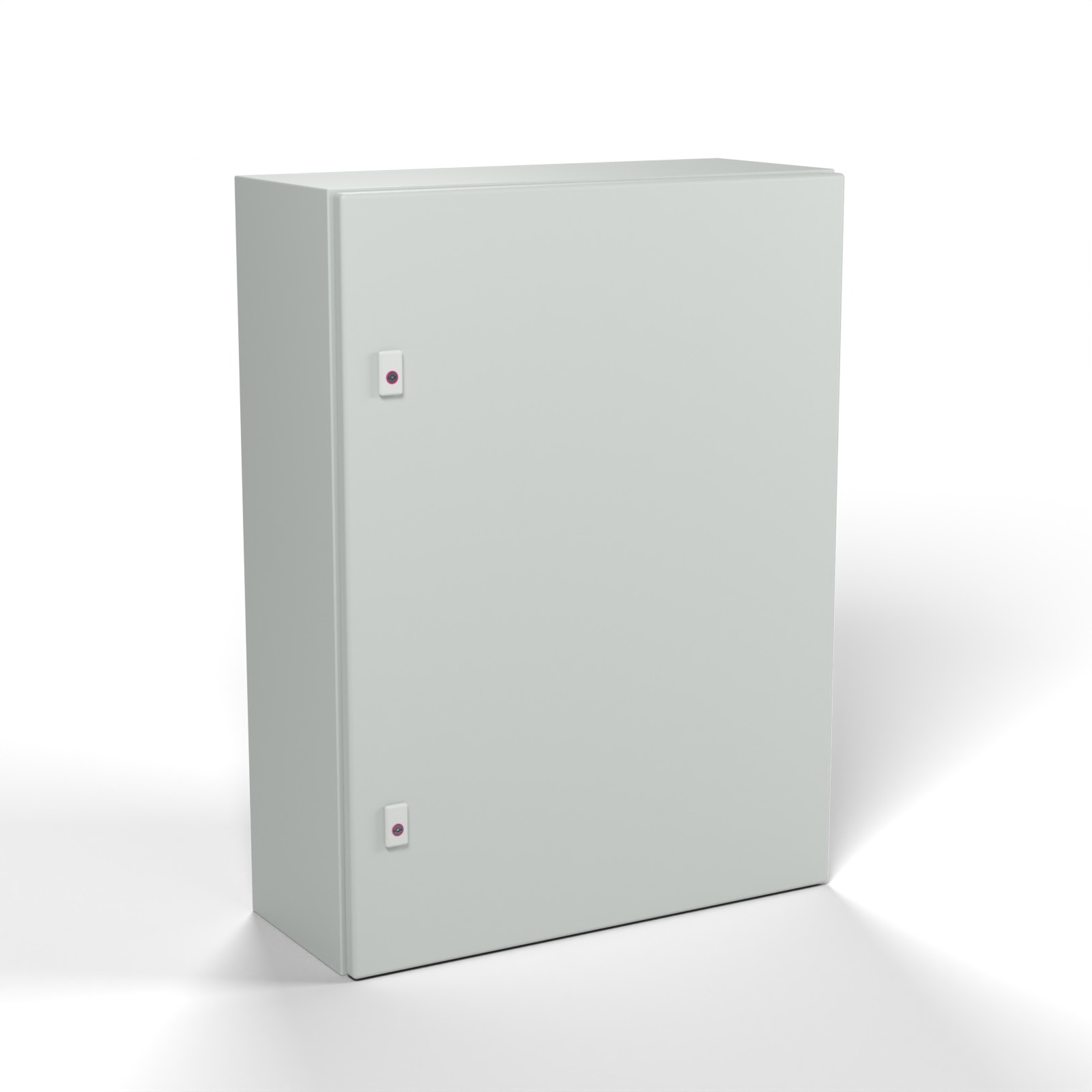

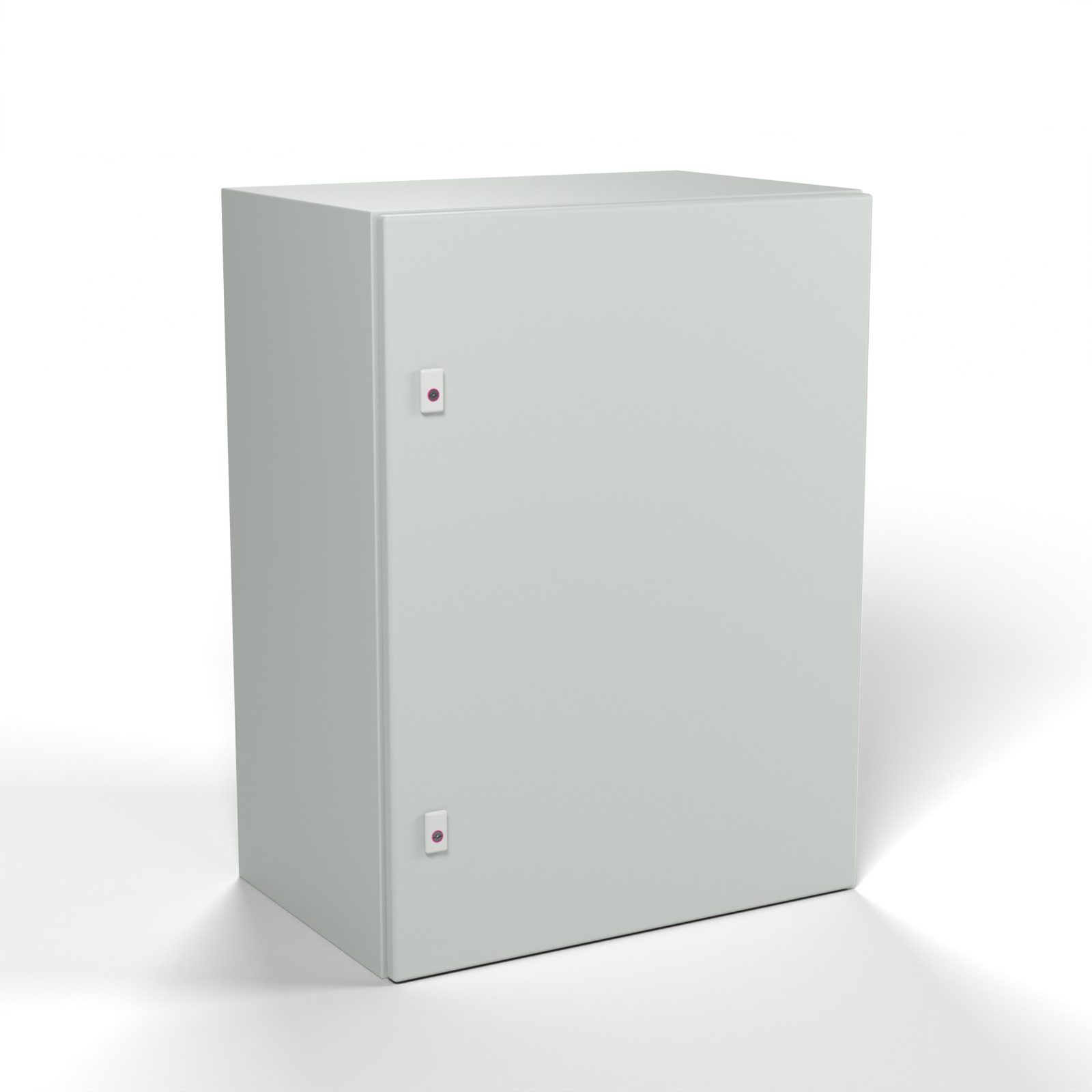

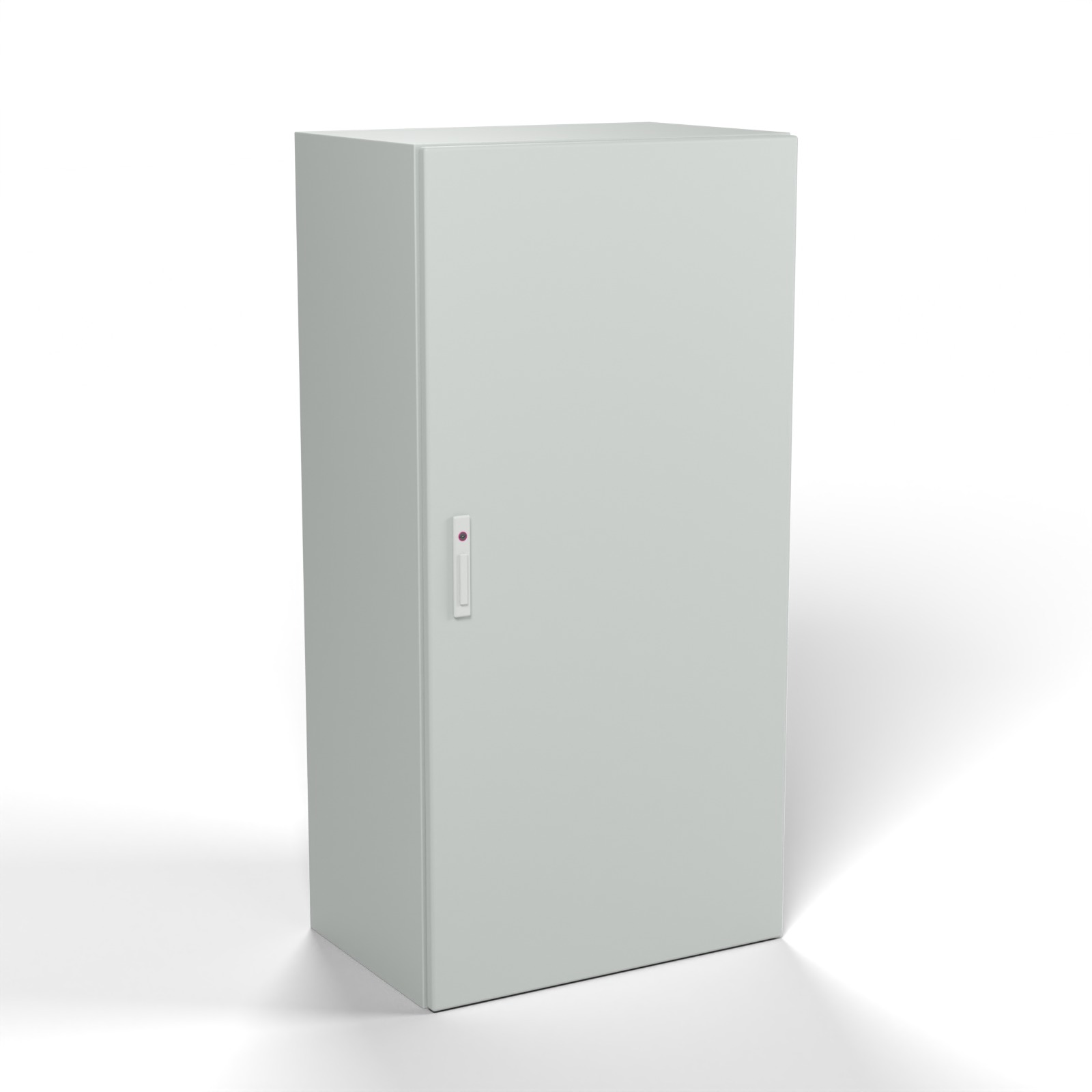

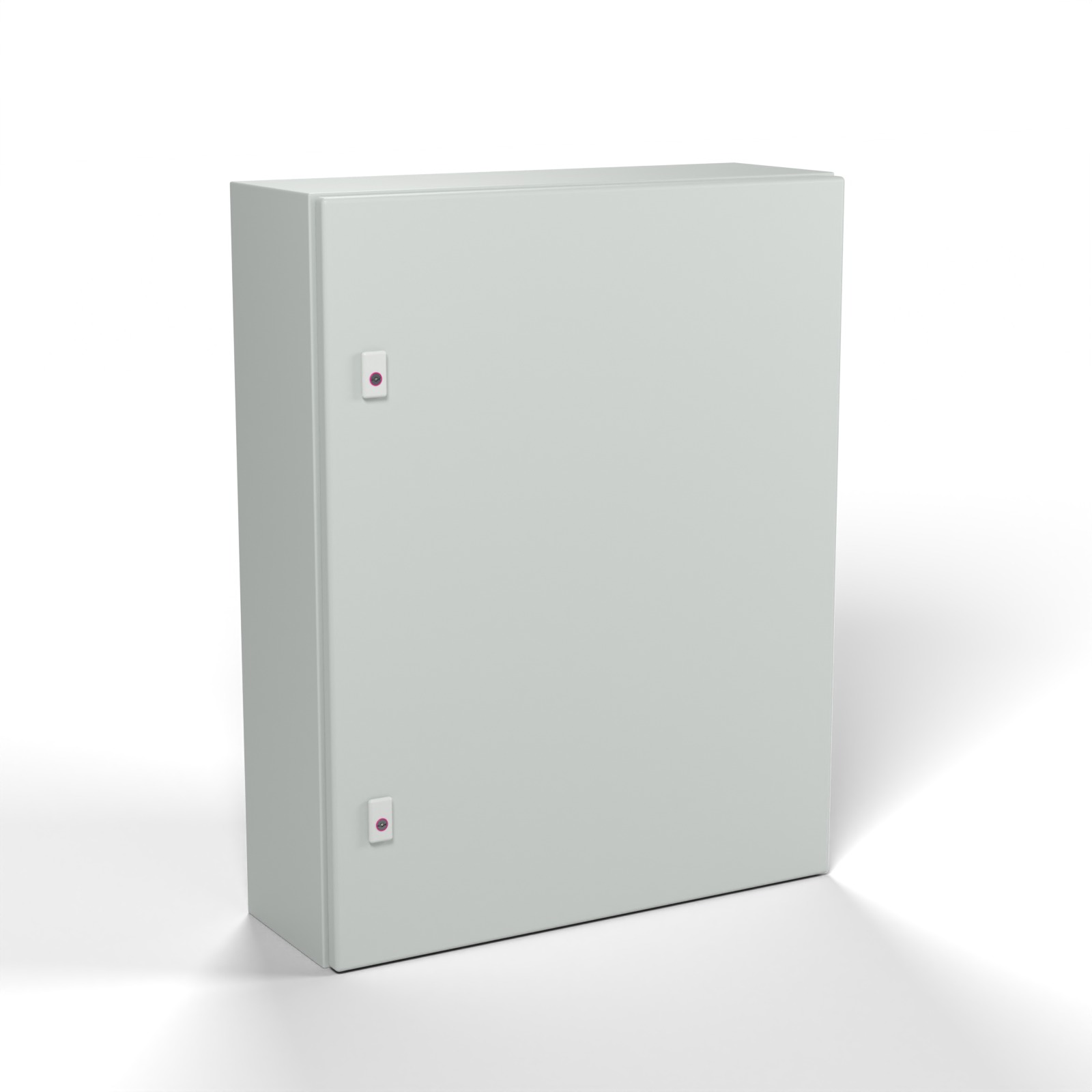

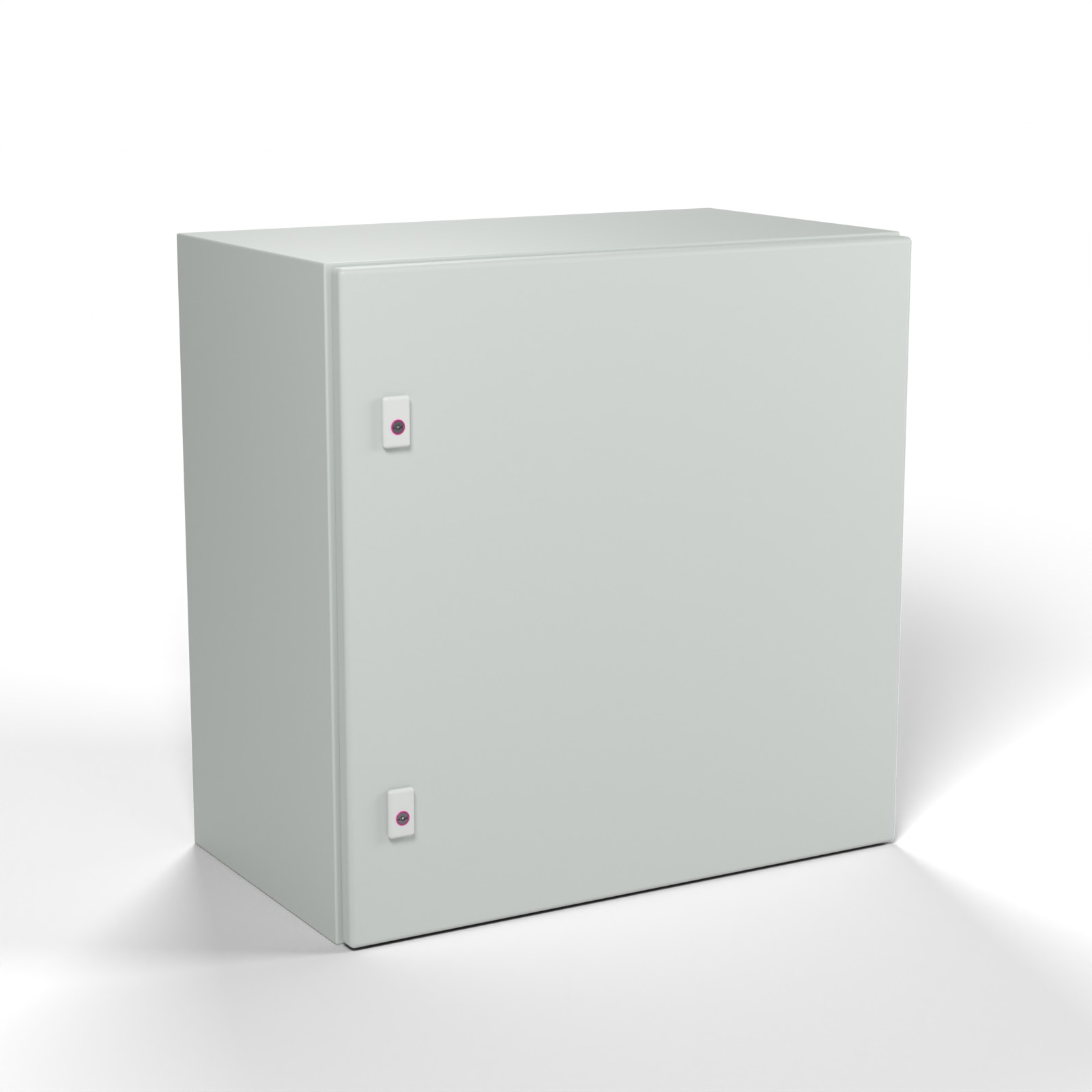

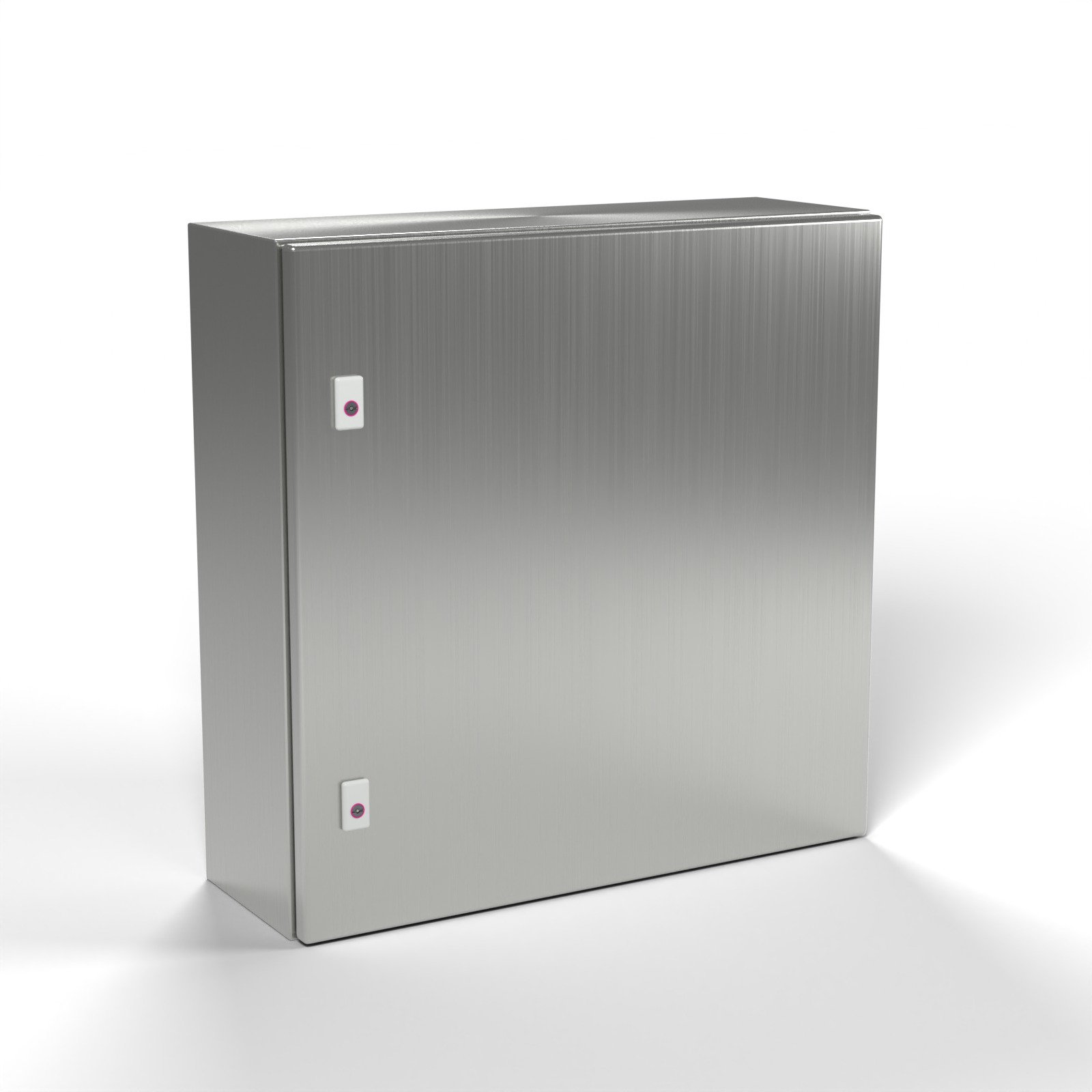

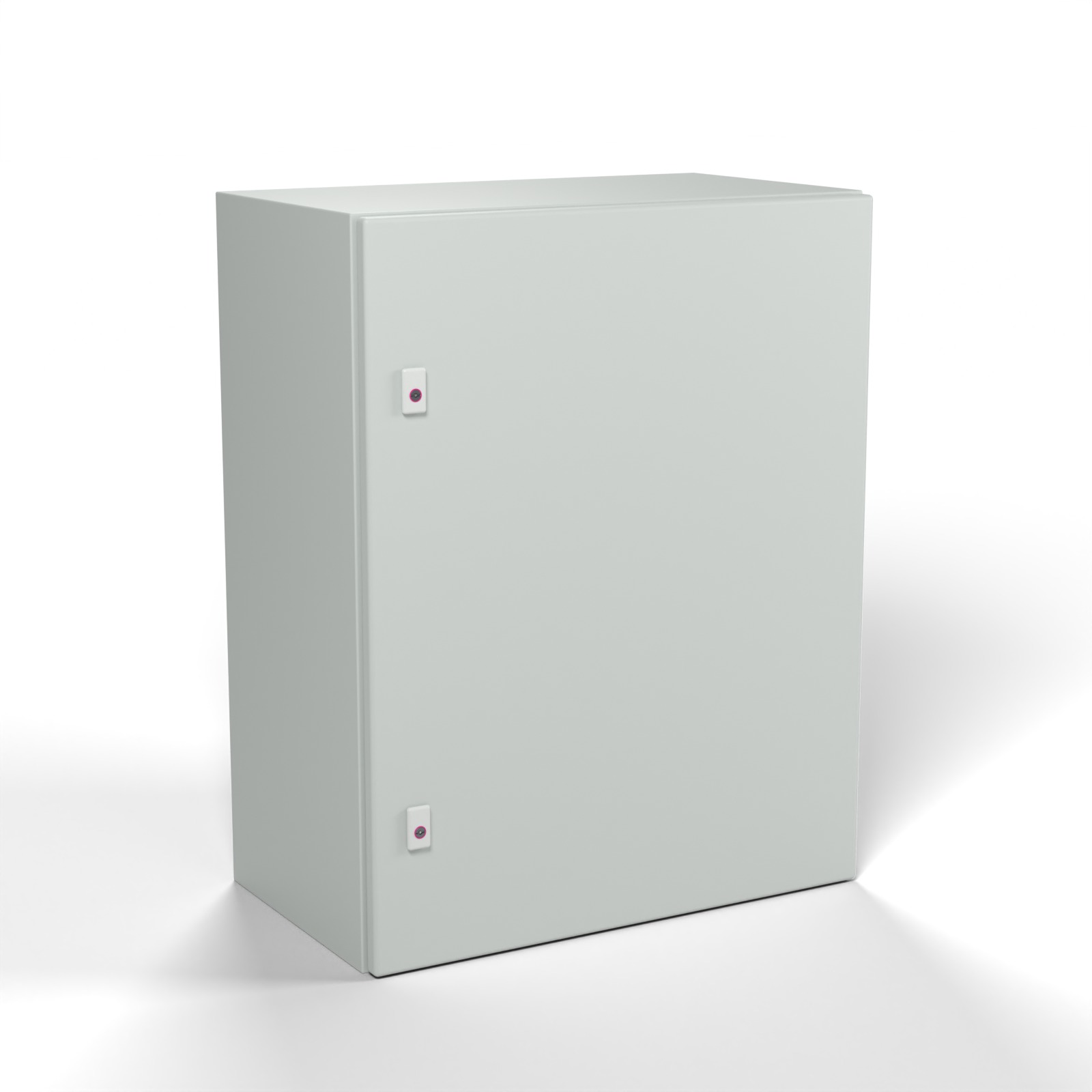

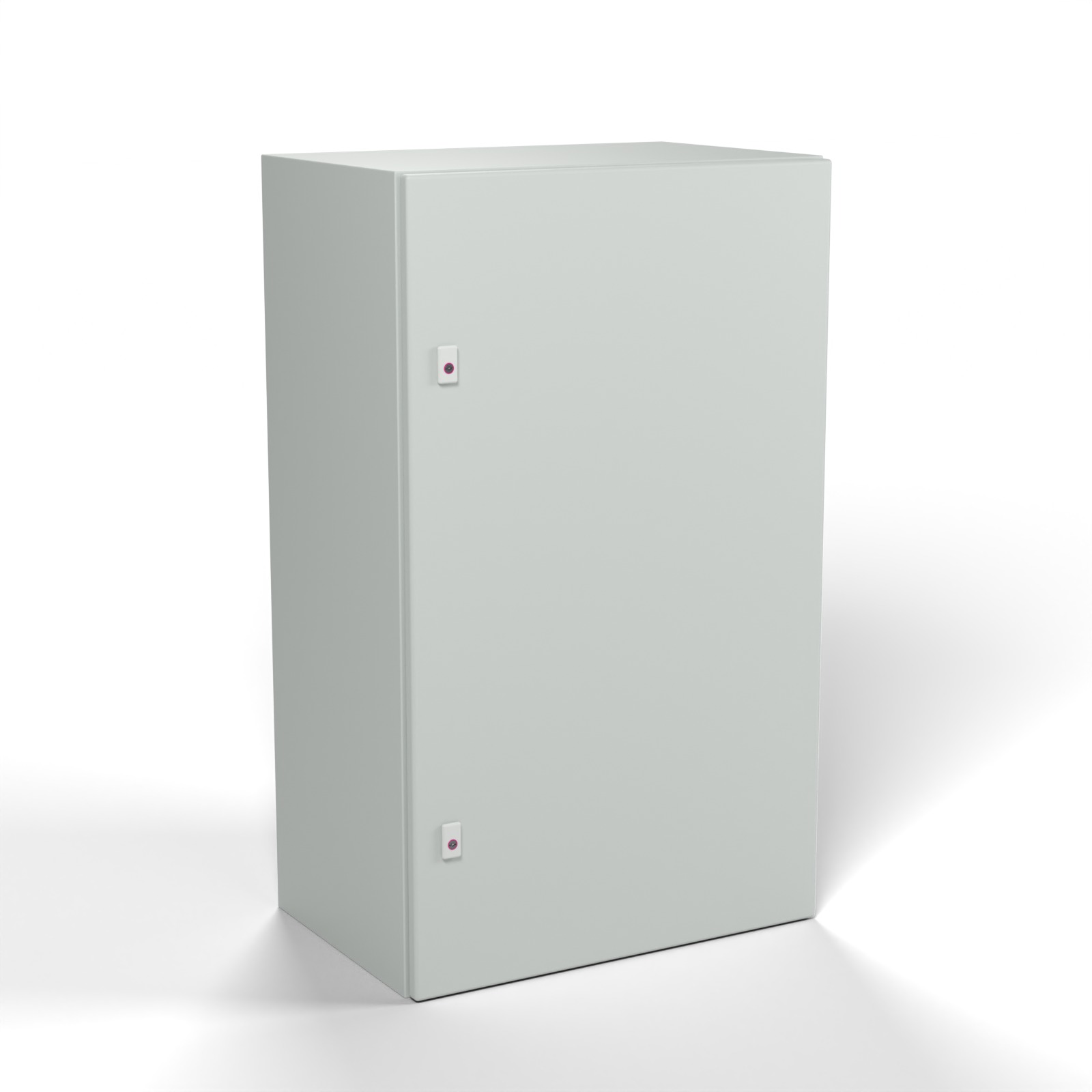

Rittal's accessory lists name this width for 17 AX enclosures: 13 in sheet steel and 4 in stainless steel.
