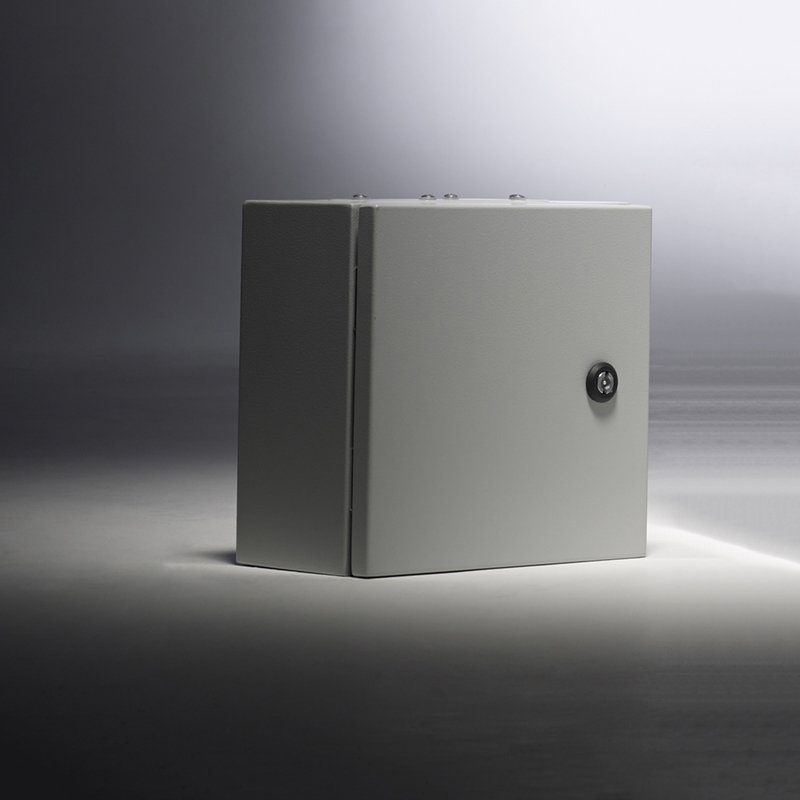

Europa STB606020A IP66 Epoxy Coated Steel Enclosure 600 x 600 x 200 mm, RAL 7035
- Brand:
- Europa Components
- Part number:
- STB606020A
- EAN:
- 5056551217522
Europa STB606020A IP66 epoxy coated steel wall-mounting enclosure, 600 x 600 x 200 mm, for switchgear, control gear and cable terminations. Supplied with a 540 x 540 mm galvanised back plate, 2 gland plates and earth studs.
- IP66 epoxy coated steel, 600 x 600 x 200 mm
- Galvanised back plate 540 x 540 mm included
- 2 removable gland plates, top and bottom
- Two door locks and earth studs as standard
- Genuine Europa, trade prices, fast UK dispatch
8 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP66 |
|---|
Dimensions
| Size (W x H x D) | W 600 x H 600 x D 200 mm |
|---|---|
| Mounting plate (W x H) | 540 x 540 mm |
Construction
| Enclosure material | Sheet steel |
|---|---|
| Door / lid | Plain door |
| Doors | Single door |
| Colour | RAL 7035 |
| Number of locks | 2 |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|---|
| Gland plates supplied | 2 |
Identification
| Brand | Europa Components |
|---|---|
| Part number | STB606020A |
| EAN | 5056551217522 |
| Range | Europa STB |
More technical data
| External dimensions | 600 mm wide x 600 mm high x 200 mm deep |
|---|---|
| Internal depth from the mounting plate | 175 mm |
| Mounting plate | 540 x 540 mm, galvanised steel |
| Gland plates | 2 off, 120 x 415 mm each |
| Fixing hole centres | 577 x 577 mm, 8.5 mm holes |
| Protection | IP66 to EN 60529 |
| Finish | epoxy polyester powder coat, RAL 7035 |
Product details
A 600 x 600 x 200 mm IP66 steel enclosure, the Europa STB606020A gives you a dust-tight, jet-proof home for isolators, starters, terminals and instrumentation in a working plant.
Key features
- Body and door in 1.2 - 1.5 mm sheet steel, epoxy powder coated RAL 7035
- IP66 to EN 60529 - dust-tight and protected against water jets
- Galvanised back plate included, 540 x 540 mm, ready for DIN rail and gear
- Two removable gland plates (120 x 415 mm) in 2.0 - 2.5 mm steel, so glanding is done off the wall
- Earth studs included for door and body bonding
- Two door locks, keeping live parts secure in shared and public areas
- Fixing hole centres 577 x 577 mm; STBRACKET brackets sold separately
Typical applications
Larger steel enclosures are specified as sub-distribution boards, motor control and drive panels, PLC and automation cabinets and equipment housings for heavy plant. Manufacturers, process operators and M&E contractors use them where a wall-mounted assembly has to hold a lot of gear and stay sealed and secure. The square format suits balanced rail width and cable space. Europa does not recommend the STB range outdoors; for exposed or corrosive sites, use the stainless SSTB range.
Compliance
Rated IP66 to EN 60529: no dust ingress, and protection against powerful water jets from any direction. The rating only holds if glands, cut-outs and the door seal are made off correctly, and Europa asks that cut surfaces are treated and swarf removed.
