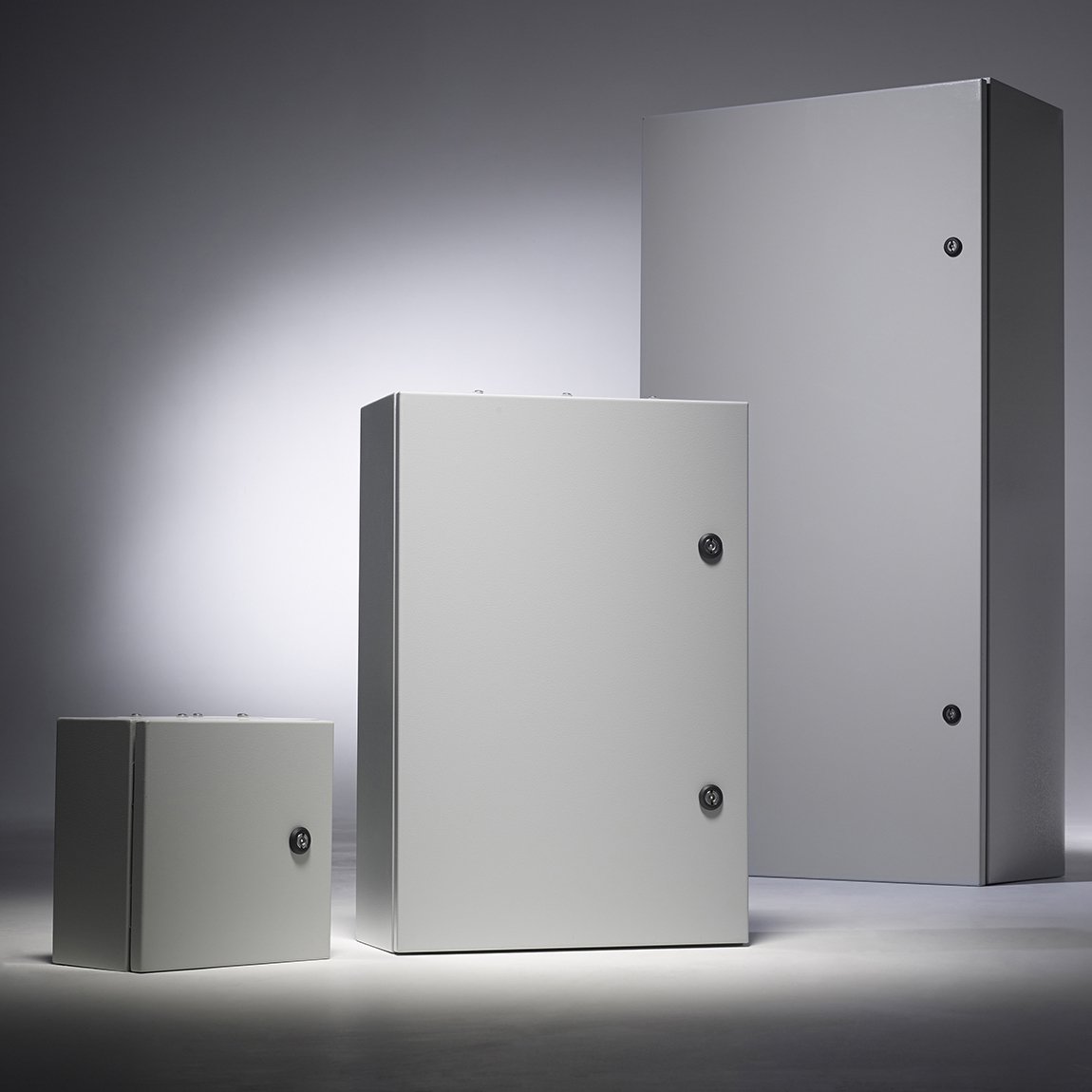

Europa STBE806020 Essentials IP65 Epoxy Coated Steel Enclosure 600 x 800 x 200 mm
- Brand:
- Europa Components
- Part number:
- STBE806020
- EAN:
- 5056551217812
Europa Essentials STBE806020 IP65 epoxy coated steel enclosure, 600 x 800 x 200 mm, for switchgear, control gear and terminations in indoor and sheltered locations. Galvanised mounting plate, bottom gland plate and earth studs included.
- IP65 to EN 60529, NEMA 4 when fitted and sealed
- 600 x 800 x 200 mm epoxy coated steel, RAL 7035 textured
- Galvanised mounting plate 740 x 540 mm included
- Two door locks, earth studs included
- Europa Essentials value range, fast UK dispatch
18 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP65 |
|---|
Dimensions
| Size (W x H x D) | W 600 x H 800 x D 200 mm |
|---|---|
| Mounting plate (W x H) | 540 x 740 mm |
Construction
| Enclosure material | Sheet steel |
|---|---|
| Door / lid | Plain door |
| Doors | Single door |
| Colour | RAL 7035 |
| Number of locks | 2 |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|---|
| Gland plates supplied | 1 |
Identification
| Brand | Europa Components |
|---|---|
| Part number | STBE806020 |
| EAN | 5056551217812 |
| Range | Europa STBE (Essentials) |
More technical data
| External dimensions | 600 mm wide x 800 mm high x 200 mm deep |
|---|---|
| Internal depth from the mounting plate | 175 mm |
| Mounting plate | 740 x 540 mm, galvanised zinc steel |
| Gland plate | one, bottom, 120 x 415 mm |
| Protection | IP65 to EN 60529 (NEMA 4 when fitted and sealed) |
| Finish | RAL 7035 textured epoxy polyester powder coat |
Product details
Need a 600 x 800 x 200 mm IP65 steel enclosure without paying for features you will not use? The Europa Essentials STBE806020 covers the basics properly: sealed steel body, galvanised back plate and a lockable door.
Key features
- Body and door in 1.2 - 1.5 mm sheet steel with a thermosetting epoxy polyester powder coat, RAL 7035 textured finish
- IP65 to EN 60529, and NEMA 4 when correctly fitted and sealed
- Galvanised zinc steel mounting plate included, 740 x 540 mm
- Removable bottom gland plate, 120 x 415 mm, in 2.0 - 2.5 mm steel for off-the-wall glanding
- Earth studs included for door, body and plate bonding
- Two door locks as standard, with a key operated barrel lock offered as an alternative
- 8.5 mm fixing holes, with fixing brackets available separately
Typical applications
Larger Essentials enclosures serve as compact sub-distribution boards, motor starter and drive panels, automation cabinets and equipment housings. They suit manufacturing, warehousing, building services and process plant where a sealed, lockable steel box on a wall does the job a floor-standing cabinet would otherwise take. With a single bottom gland plate, the Essentials range suits installations glanded from below; where you need top entry as well, the STB range carries gland plates at both ends.
Compliance
Rated IP65 to EN 60529: fully dust-tight and protected against low pressure water jets from any direction, and NEMA 4 when correctly fitted and sealed. The rating depends on the glands and cut-outs made on site, so use correctly sized IP-rated glands and blanking plugs and treat any cut edges.
