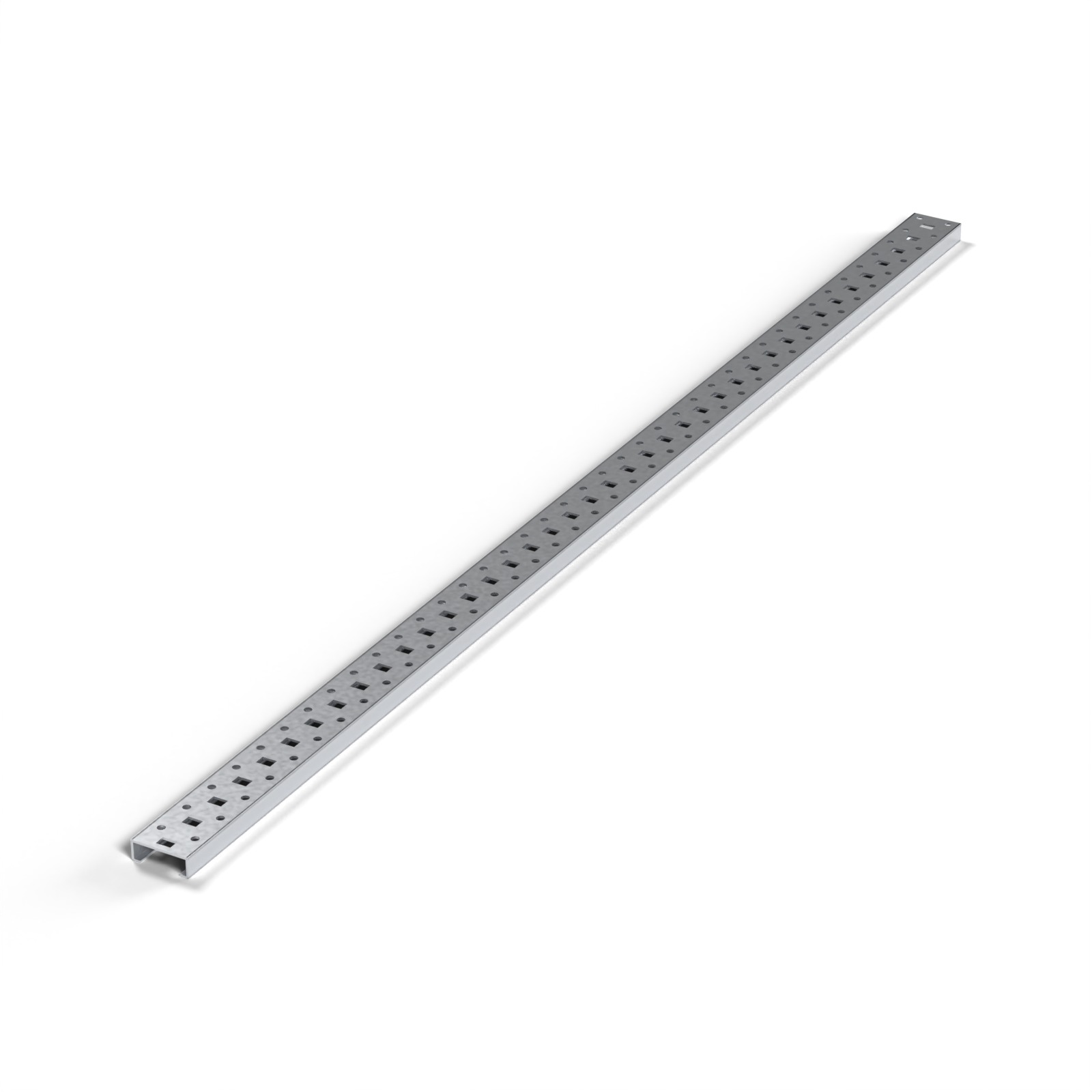

Illustration - our own render; see the datasheet for exact details.
Rittal 8619.750 VX Punched Section 14 x 39 mm for AX 1000 mm Enclosure Height, Pack of 4
- Brand:
- Rittal
- Part number:
- 8619.750
- EAN:
- 4028177924642
Pack of four VX punched sections 14 x 39 mm with mounting flange, in zinc-plated sheet steel, for Rittal AX enclosures 1000 mm high. Rittal part number 8619.750.
- 14 x 39 mm with mounting flange
- For AX enclosures 1000 mm high
- Fixing points 875 mm apart
- Zinc-plated sheet steel
- Pack of 4
3 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 1.776 kg |
|---|
Construction
| Material | Steel |
|---|
Fit
| Fits enclosure family | Rittal AX sheet steel, Rittal AX stainless steel |
|---|---|
| Fits enclosure height | 1000 mm |
What's supplied
| Pack quantity | Pack of 4 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 8619.750 |
| EAN | 4028177924642 |
| Range | Rittal AX |
| Type | Punched section |
More technical data
| Profile | 14 x 39 mm, with mounting flange |
|---|---|
| For | AX enclosures 1000 mm high |
| Distance between fixing points | 875 mm |
| Installation in AX sheet steel | only with the AX interior installation rail |
| Fixing own components | metal screws or M5 self-tapping screws |
| Material | sheet steel, zinc-plated |
| Supply includes | assembly parts |
| Pack weight | 1.776 kg |
Product details
The Rittal 8619.750 is a pack of four VX punched sections with a 14 x 39 mm profile and mounting flange, for AX compact enclosures 1000 mm high. The fixing points are 875 mm apart, and the sections are made from zinc-plated sheet steel with assembly parts supplied.
Key features
- 14 x 39 mm punched section with mounting flange
- For AX enclosures 1000 mm high
- Distance between fixing points: 875 mm
- In AX sheet steel enclosures, fitted only together with the AX interior installation rail
- Also has an installation option for AX stainless steel enclosures 1000 mm high
- Pack of 4
Typical applications
Punched sections with a mounting flange give you extra fixing lines for components and interior parts inside an AX enclosure, in addition to the mounting plate. Rittal specifies metal screws or M5 self-tapping screws for fixing your own components to the flange, so allow for suitable screws when planning the build. In AX sheet steel enclosures the sections are fitted in conjunction with the AX interior installation rail, which is chosen by enclosure depth.
Rittal's accessory lists name this length for seven AX enclosures 1000 mm high: five in sheet steel and two in stainless steel.
