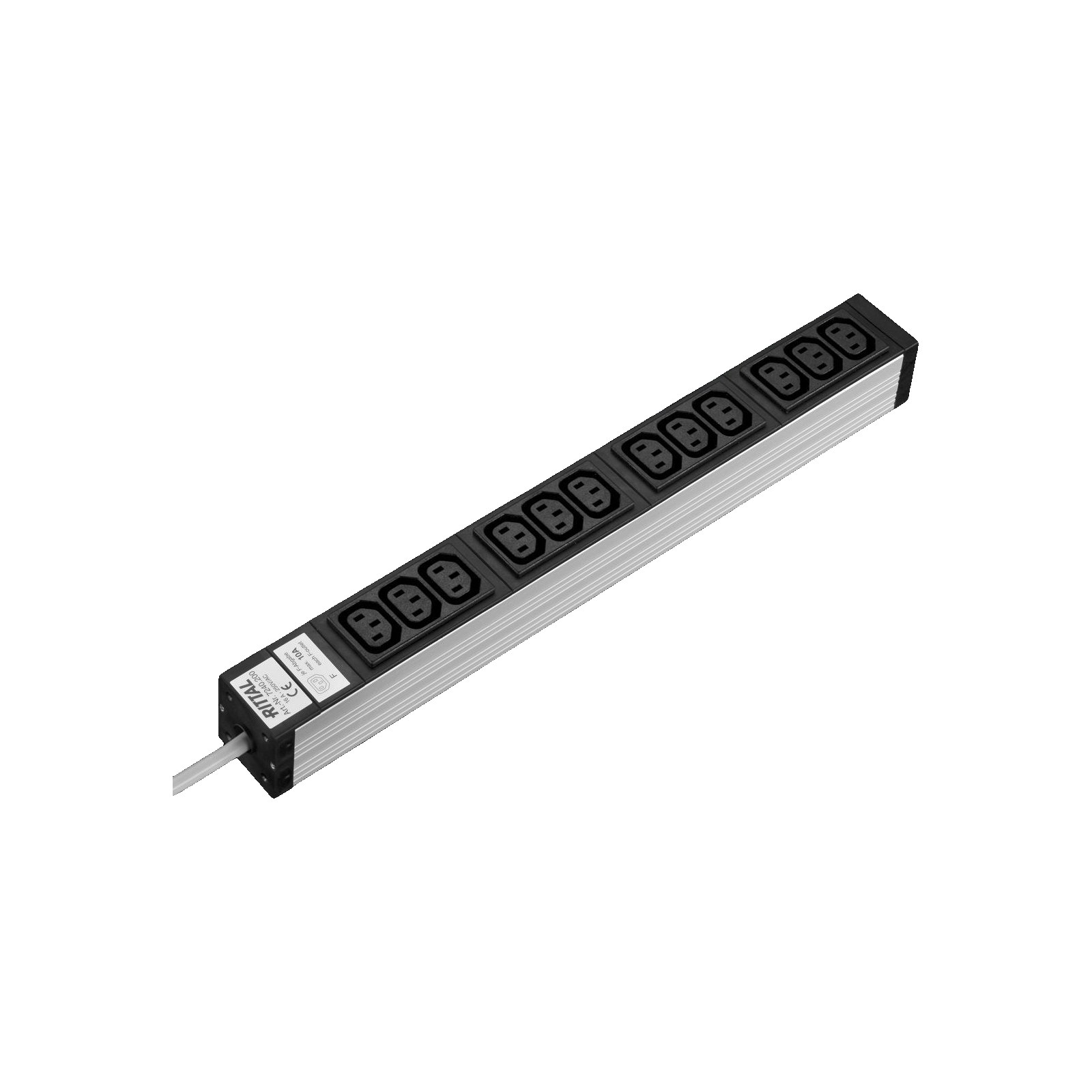

Rittal 7240.200 19-inch Socket Strip, 12 x IEC 320 C13, 16 A, for AX IT

Brand:: Rittal
Part number:: 7240.200
EAN:: 4028177237537

Rittal part number 7240.200 is a 19-inch socket strip with 12 IEC 320 C13 sockets, rated 16 A at 250 V AC, for power distribution in AX IT wall-mounted enclosures.

12 x IEC 320 C13 sockets
16 A, 250 V AC, 50 Hz
482.6 mm (19-inch) aluminium section
2 m cable with wire end ferrules
Genuine Rittal product for AX IT

£101.83 ex VAT£122.20 inc VAT

21 in stock

£101.83 ex VAT£122.20 inc VAT

21 in stock

UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.

Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.

Project quantities or a lead time to check? Request a quote

Specifications

Electrical

Socket standard	IEC 60320 C13

Dimensions

Weight	0.8 kg

Construction

Material	Aluminium

Fit

Fits enclosure family	Rittal AX IT

What's supplied

Pack quantity	Single item

Identification

Brand	Rittal
Part number	7240.200
EAN	4028177237537
Range	Rittal AX
Type	Socket strip

More technical data

Manufacturer	Rittal, part number 7240.200
Sockets	12 x IEC 320 socket C13, grey
Design	without switch
Rated voltage	250 V AC, 50 Hz; rated current (max.) 16 A
Connection	2 m H05VV-F3G1.5 cable, wire end ferrules
Dimensions (L x H x D)	482.6 x 44 x 44 mm
Mounting dimension	452.5 mm between bracket hole centres, adjustable
Material	naturally anodised aluminium section, polycarbonate socket inserts
Supply includes	socket strip, 2 mounting brackets, assembly parts

Same design, other sizes

Product	Type	Socket standard	Features	Price ex VAT
7000.6308-Way Socket Strip, Type F (CEE 7/3) Sockets, 16 A, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	-	£52.05
7240.200 This product19-inch Socket Strip, 12 x IEC 320 C13, 16 A, for AX IT	Socket strip	IEC 60320 C13	-	£101.83
7240.20119-inch Socket Strip, 9 x IEC 320 C13, C14 Inlet, 10 A, for AX IT	Socket strip	IEC 60320 C13	-	£94.89
7240.21019-inch Socket Strip, 7 x Type F (CEE 7/3), 16 A, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	-	£55.76
7240.22019-inch Socket Strip, 7 x Type F (CEE 7/3), Rocker Switch, 16 A, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	Rocker switch	£56.96
7240.23019-inch Socket Strip, 5 x Type F, Overvoltage Protection and Filter, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	Surge protection	£142.52
7240.24019-inch Socket Strip, 5 x Type F, B16 2-Pole MCB, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	MCB	£117.57
7240.26019-inch UPS Socket Strip, 7 x Type F, IEC C14 Connector, 10 A, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	UPS feed	£65.30
7240.28019-inch Socket Strip, 5 x Type F, 30 mA Type A RCD, for AX IT	Socket strip	Schuko (CEE 7/3 type F)	RCD	£231.43
7240.51019-inch Socket Strip, 7 x Type E (CEE 7/5), 16 A, for AX IT	Socket strip	French (CEE 7/5 type E)	-	£67.24

Showing 8 of 10 - see all Enclosure Lighting & Sockets

Product details

The Rittal 7240.200 is a 19-inch socket strip with 12 IEC 320 C13 sockets, rated 16 A at 250 V AC, for distributing power to IT and network equipment. The anodised aluminium section is 482.6 mm long and 44 mm high, with a 2 m connection cable finished with wire end ferrules.

Key features

12 x IEC 320 C13 sockets, grey
Rated current (max.) 16 A; rated voltage 250 V AC, 50 Hz
2 m H05VV-F3G1.5 connection cable with wire end ferrules
482.6 mm (19-inch) aluminium section, 44 mm high and 44 mm deep
Two mounting brackets with adjustable spacing

Typical applications

Distributing power to servers, switches and other IT equipment connected by IEC leads in wall-mounted network and IT enclosures. Depending on the load, Rittal recommends allowing a reserve for starting-current peaks so that protective devices do not trip unintentionally.

Compliance

Rittal's data gives EN 60320-2-2 as the applicable standard.

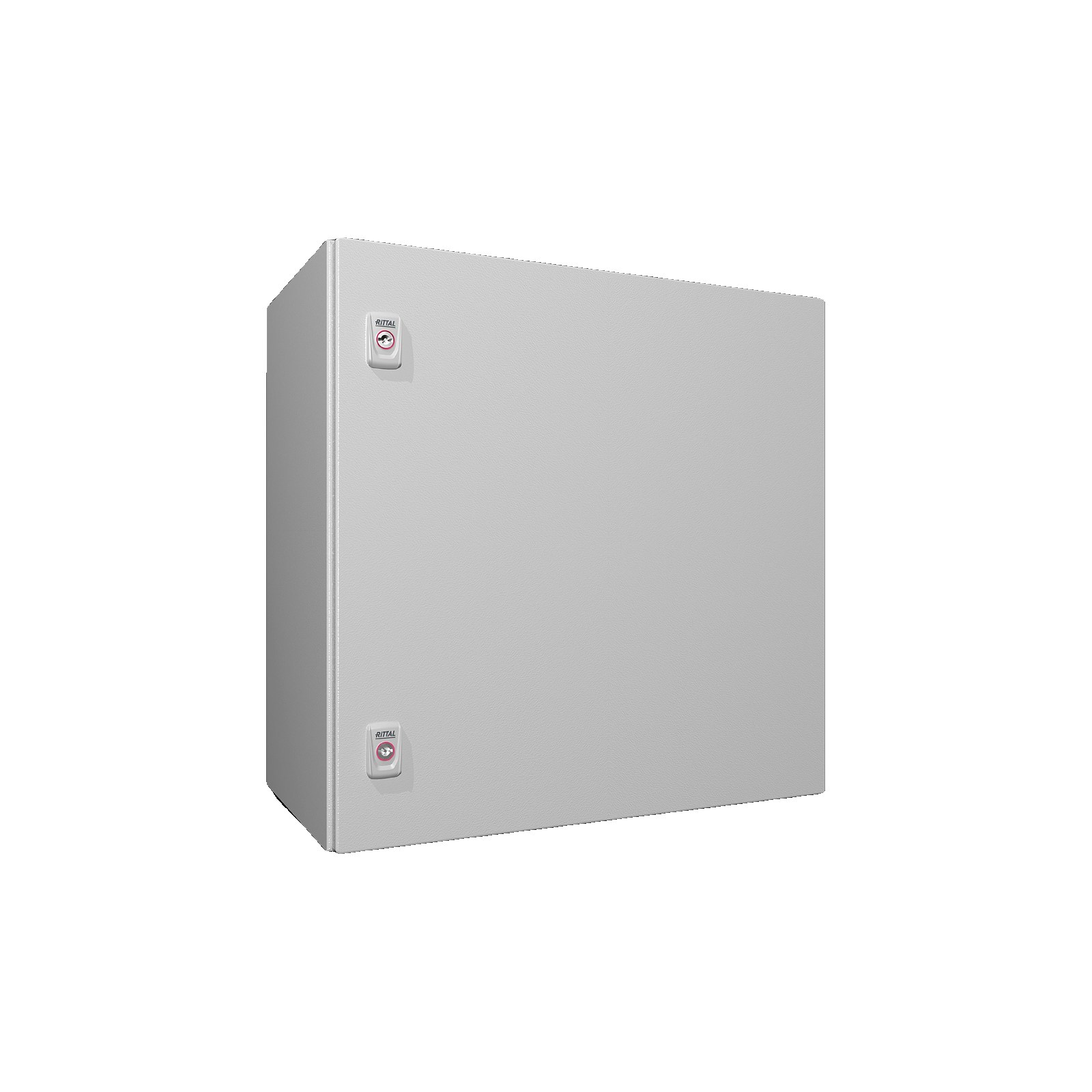

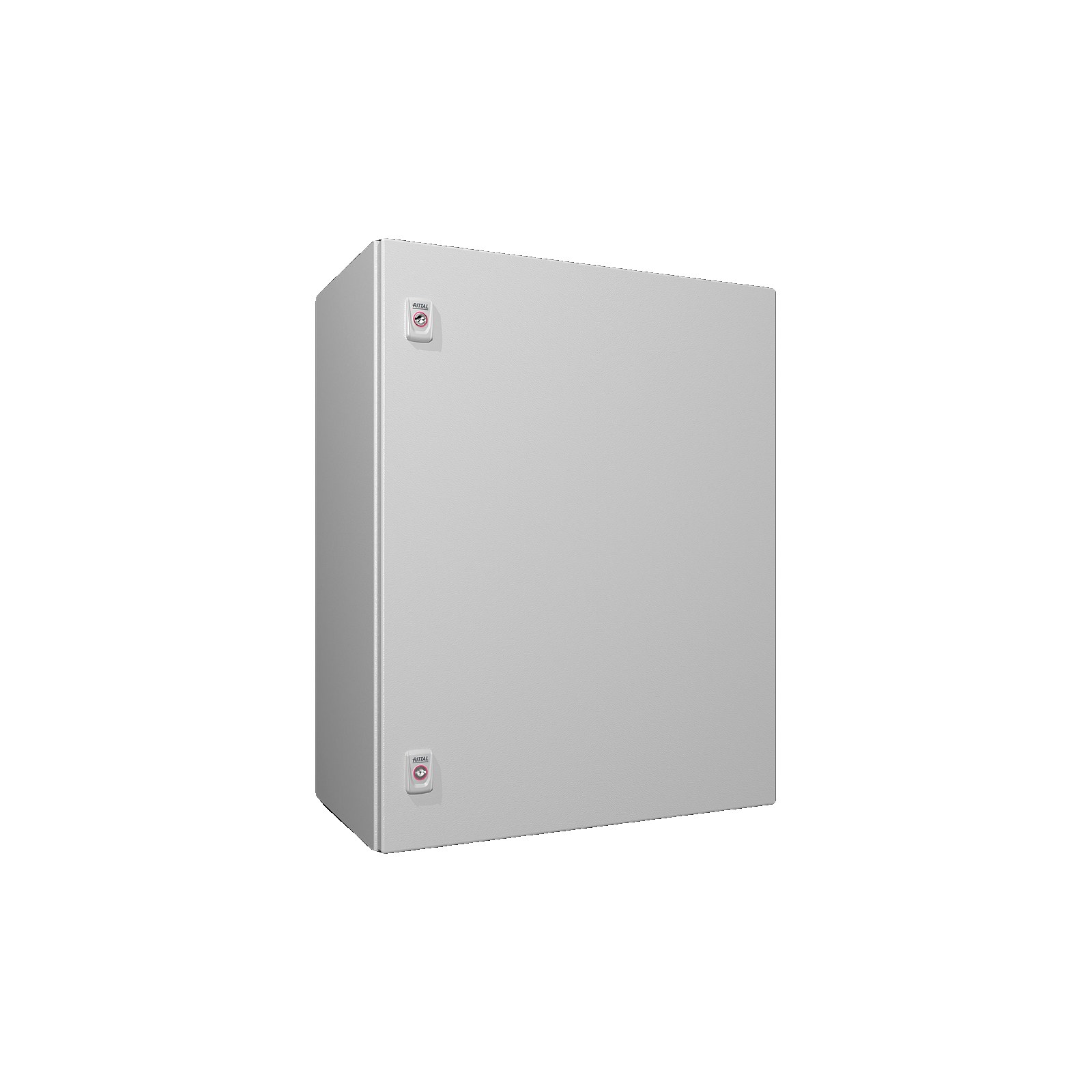

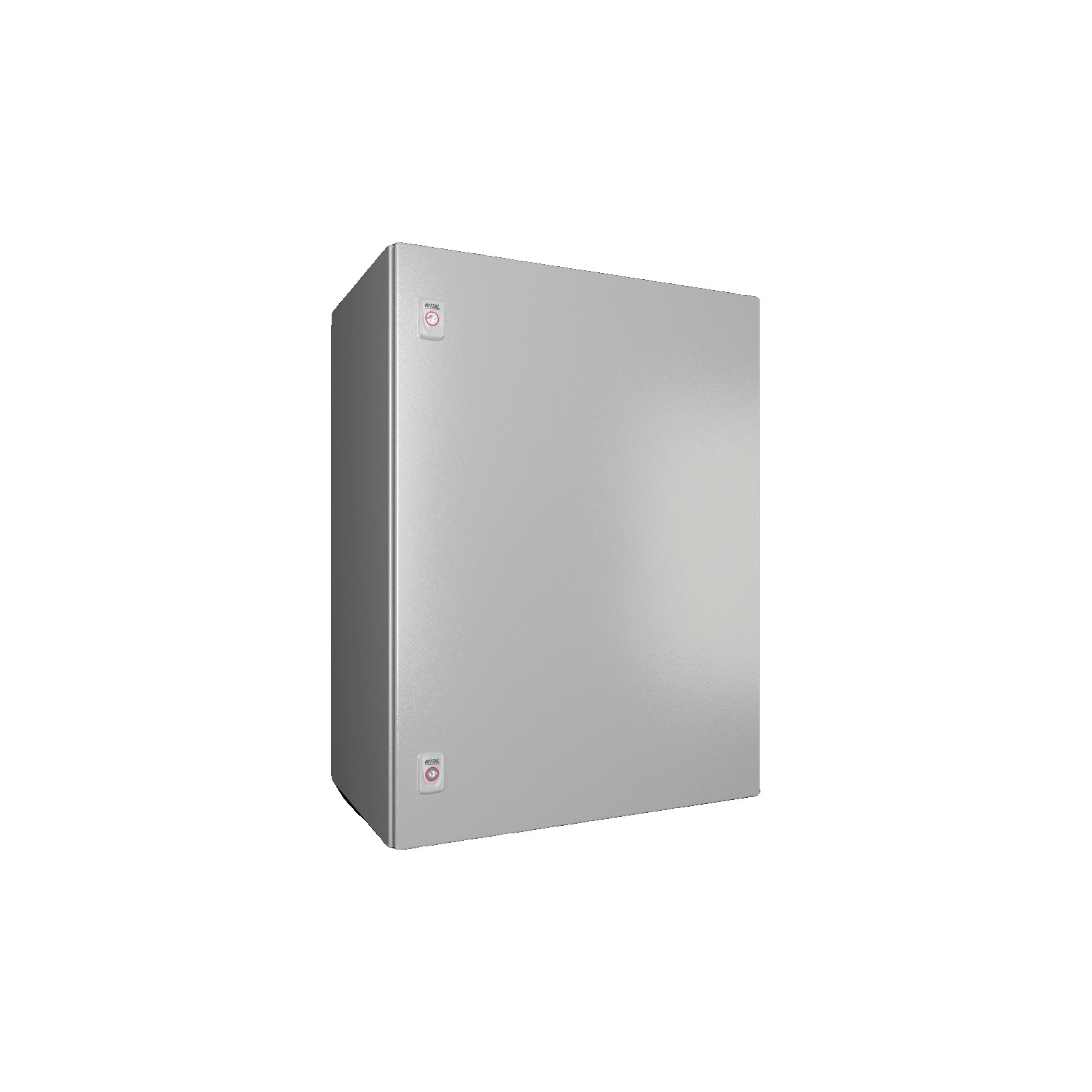

Compatibility: Rittal lists this strip for its four AX IT wall-mounted enclosures, all 600 mm wide: 7641.350, 7643.350 and 7645.350 (380, 600 and 760 mm high, 350 mm deep) and 7646.400 (800 mm high, 400 mm deep). It mounts on components with a 25 mm pitch pattern, on the enclosure frame, at the 482.6 mm (19-inch) level, or horizontally at the rear of an IT wall-mounted distributor where the width allows.

Add it to your cart, or ask us about project quantities.
