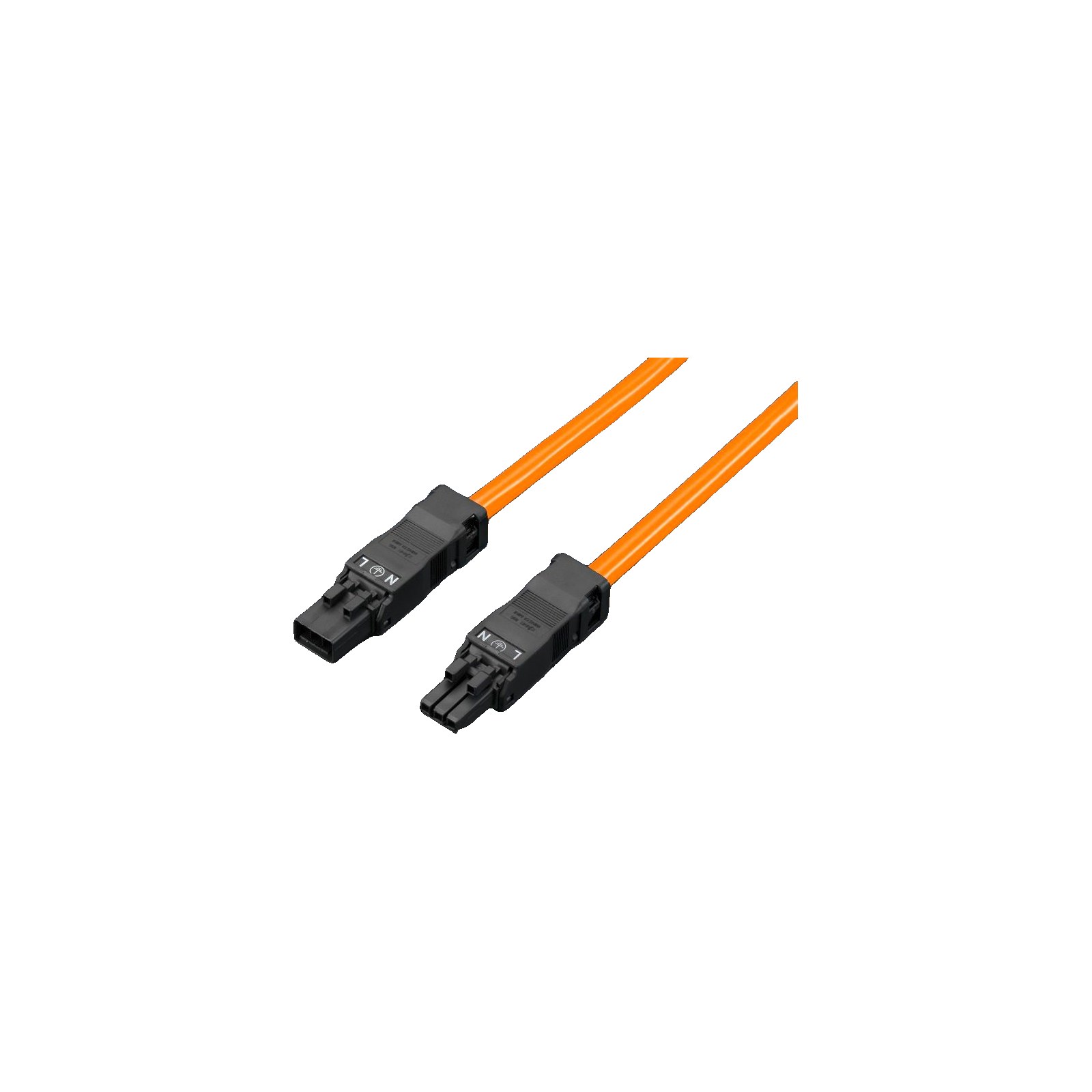

Illustration - our own render; see the datasheet for exact details.
Rittal 2500.430 3-Pole Through-Wiring Cable 1 m for 1200 lm LED Enclosure Lights, Pack of 5
- Brand:
- Rittal
- Part number:
- 2500.430
- EAN:
- 4028177809123
Rittal part number 2500.430 is a pack of five 1 m, 3-pole through-wiring cables (1.5 mm²) for linking Rittal's 1,200 lm LED enclosure lights 2500.300 to 2500.313 from light to light.
- 3-pole through-wiring cable, 1,000 mm long
- Socket and connector fitted
- 1.5 mm² cross-section, 100-240 V rated
- For 1,200 lm LED lights 2500.300/310/311/312/313
- Pack of 5
8 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 0.66 kg |
|---|---|
| Length | 1000 mm |
Construction
| Colour | Orange |
|---|
Fit
| Fits enclosure family | Rittal AX sheet steel, Rittal AX stainless steel |
|---|
What's supplied
| Pack quantity | Pack of 5 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 2500.430 |
| EAN | 4028177809123 |
| Range | Rittal AX |
| Type | LED connection cable |
More technical data
| Manufacturer | Rittal, part number 2500.430 |
|---|---|
| Design | through-wiring, 3-pole (with socket and connector) |
| Cable length | 1,000 mm |
| Cross-section | 1.5 mm² |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
Product details
The Rittal 2500.430 is a pack of five 3-pole through-wiring cables for linking Rittal's 1,200 lm LED enclosure lights in a run. Each cable is 1,000 mm long with a 1.5 mm² cross-section and has both a socket and a connector fitted, so power can be passed from one light to the next.
Key features
- 3-pole through-wiring between 1,200 lm LED enclosure lights
- 1,000 mm cable length, 1.5 mm² cross-section
- Socket and connector fitted
- Rated operating voltage 100 V - 240 V, 1~, 50 Hz/60 Hz
- Orange cable, supplied in a pack of five
Typical applications
Lighting runs in wide control panels, machine enclosures and VX enclosure suites, where several lights are fed from a single 3-pole infeed such as 2500.400. Plan one through-wiring cable for each additional light in the run.

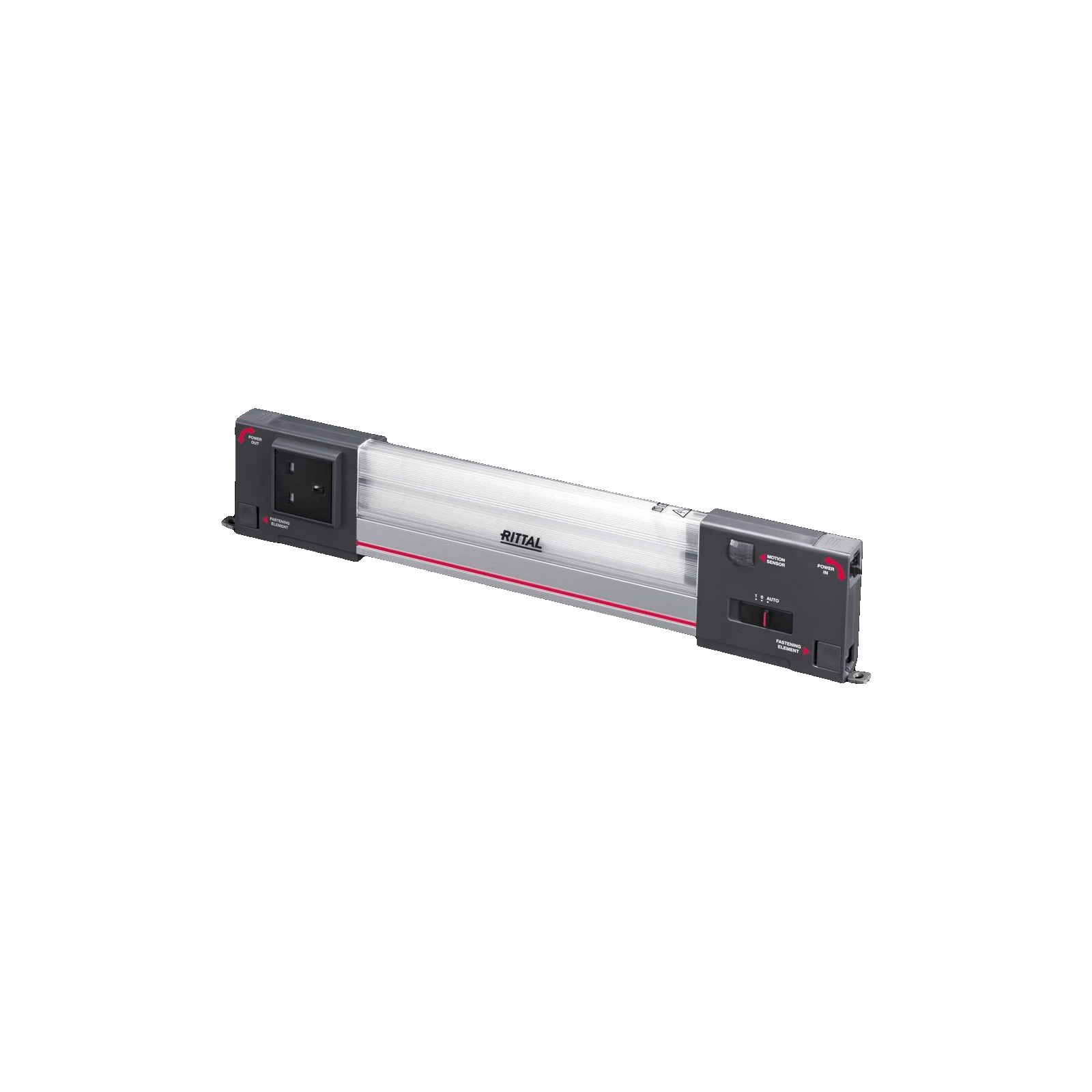

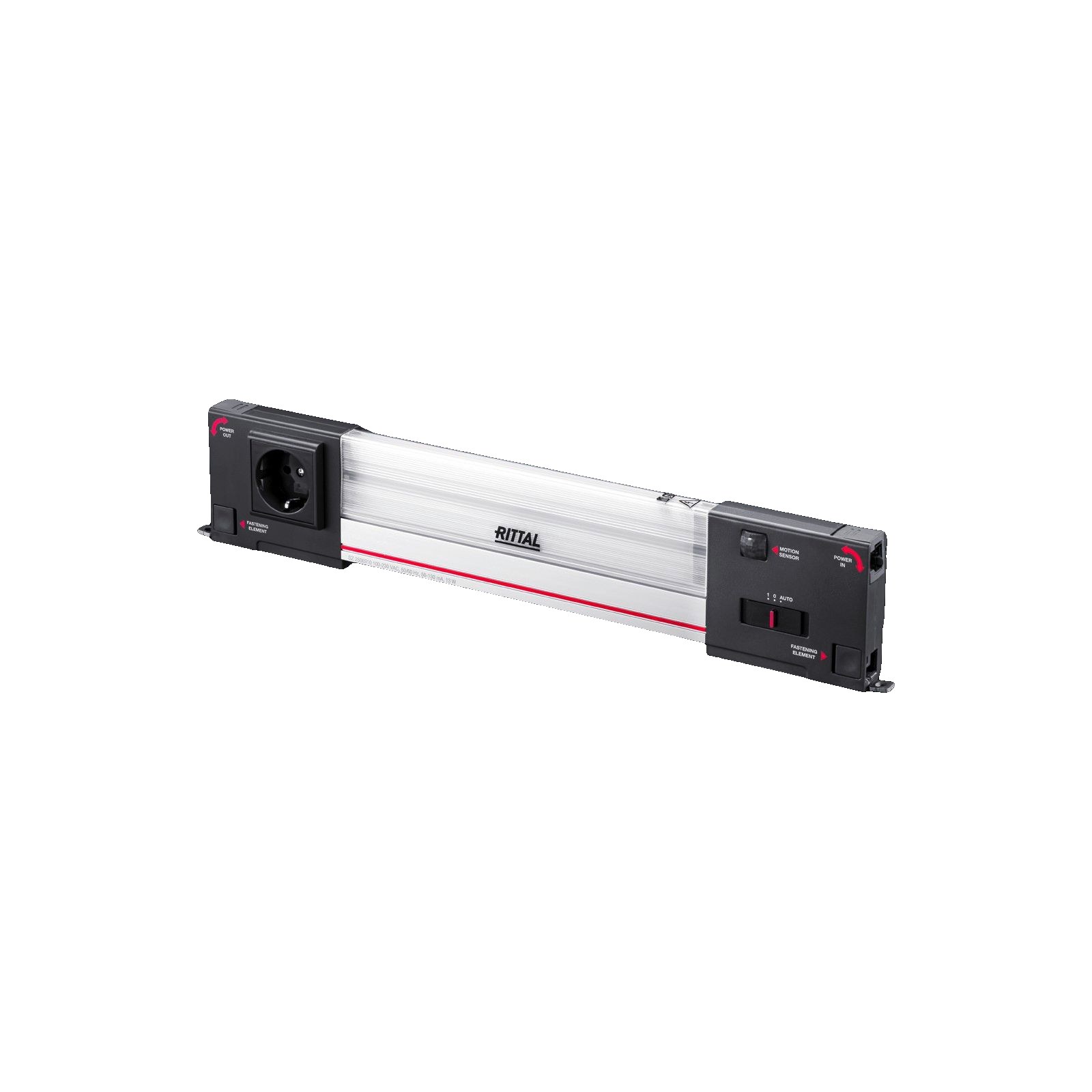

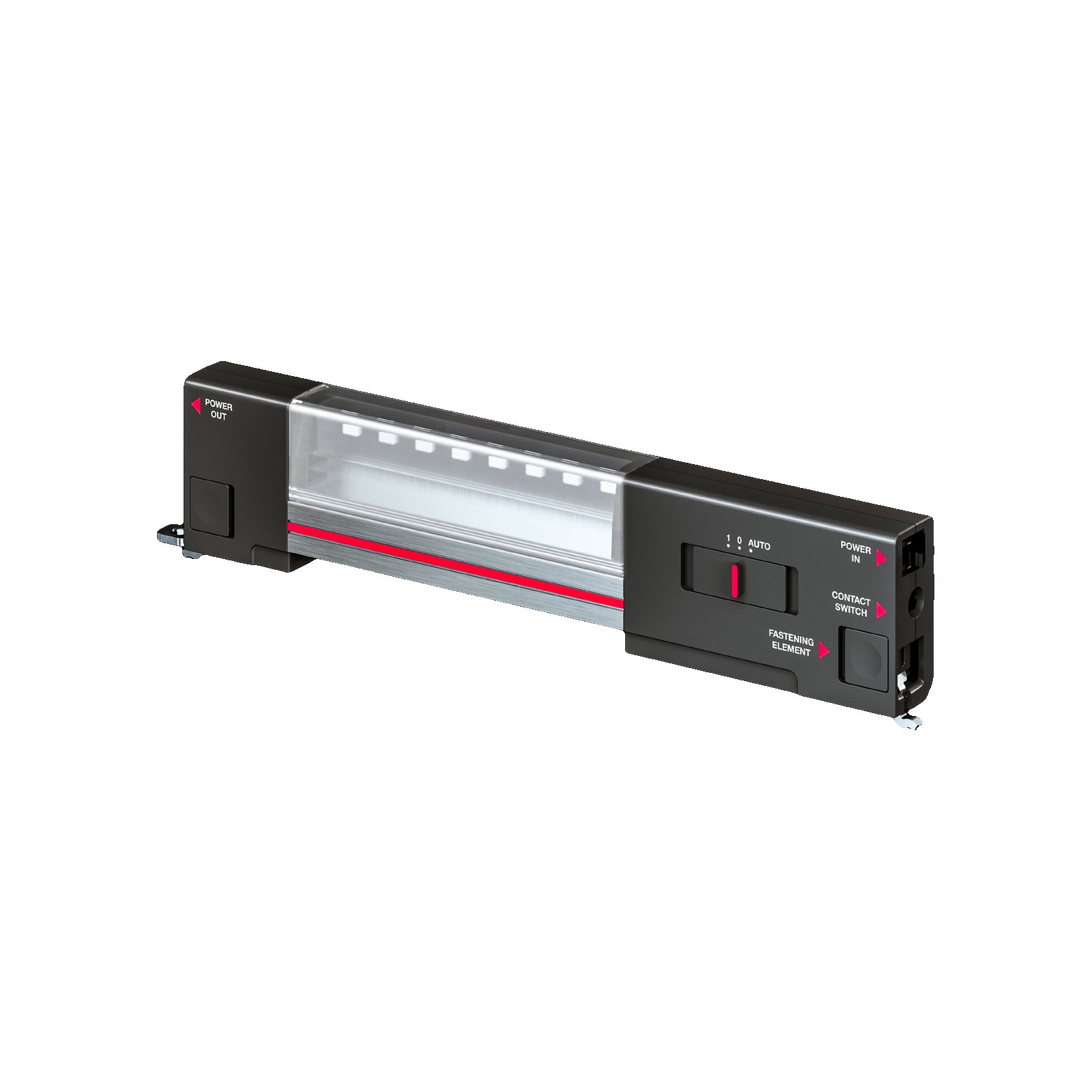

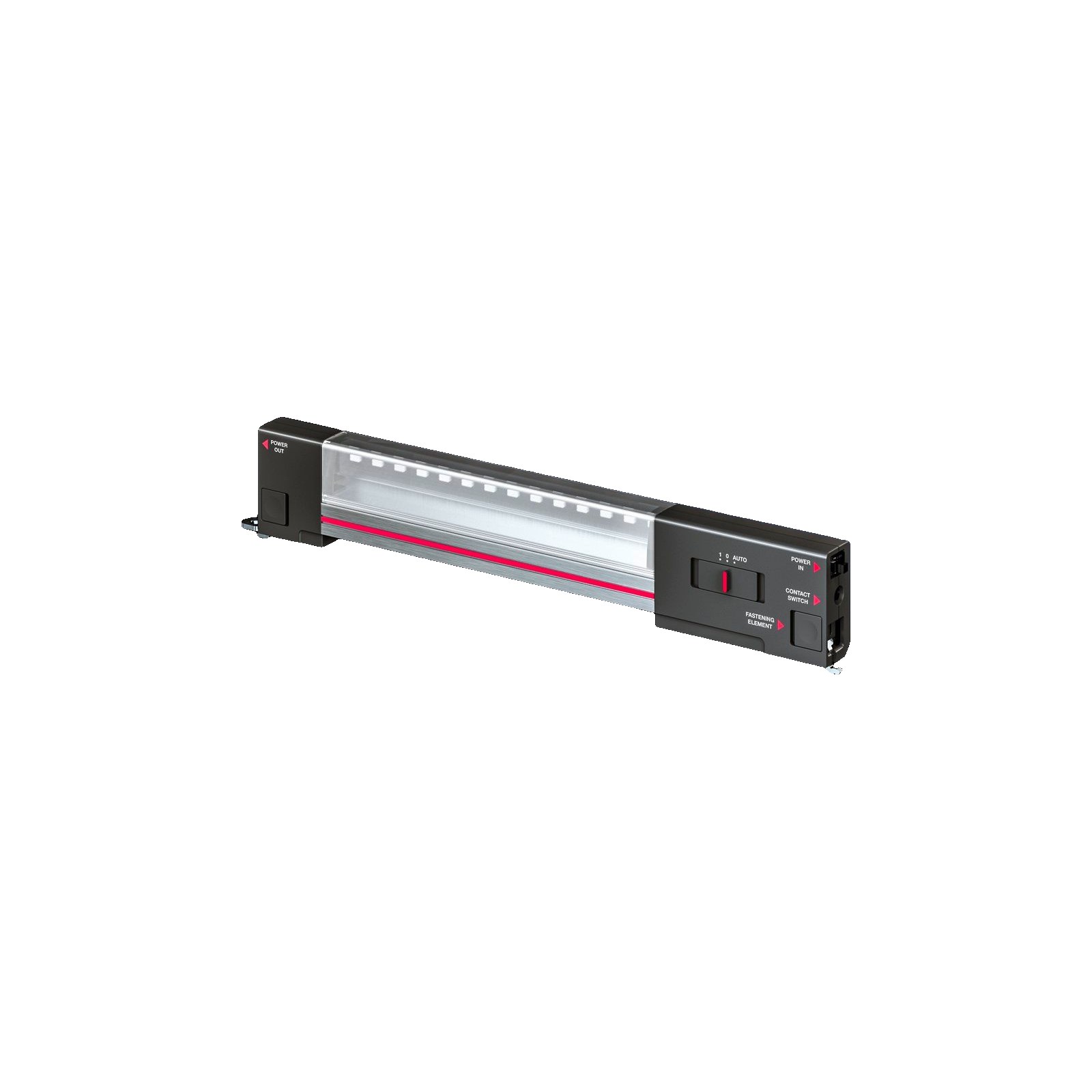

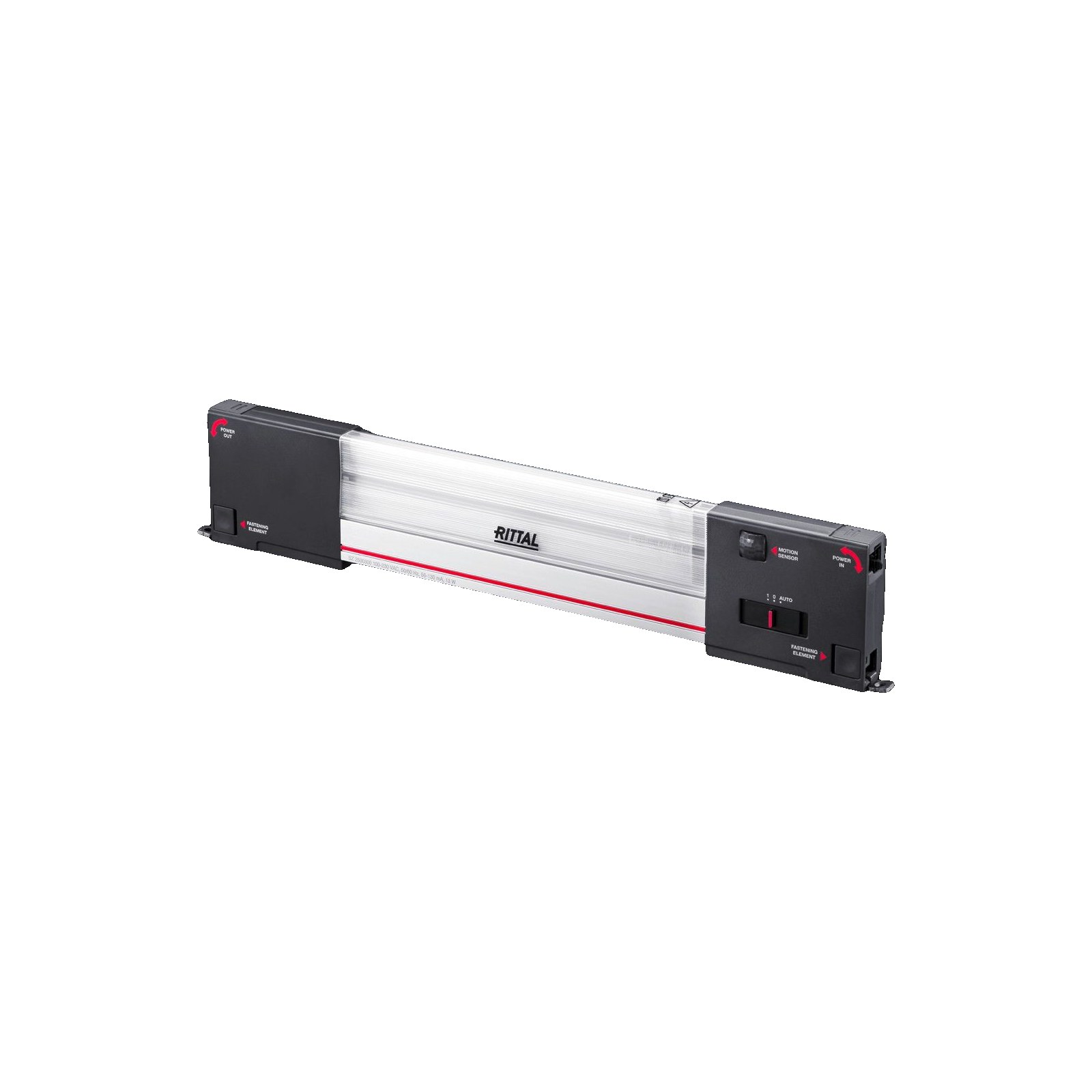

Compatibility: for Rittal LED enclosure lights 2500.300, 2500.310, 2500.311, 2500.312 and 2500.313, which all use 3-pole connections. The 400 lm and 600 lm lights (2500.100 and 2500.110) use 2-pole cables instead. For those, use the 2-pole through-wiring cable 2500.450.
