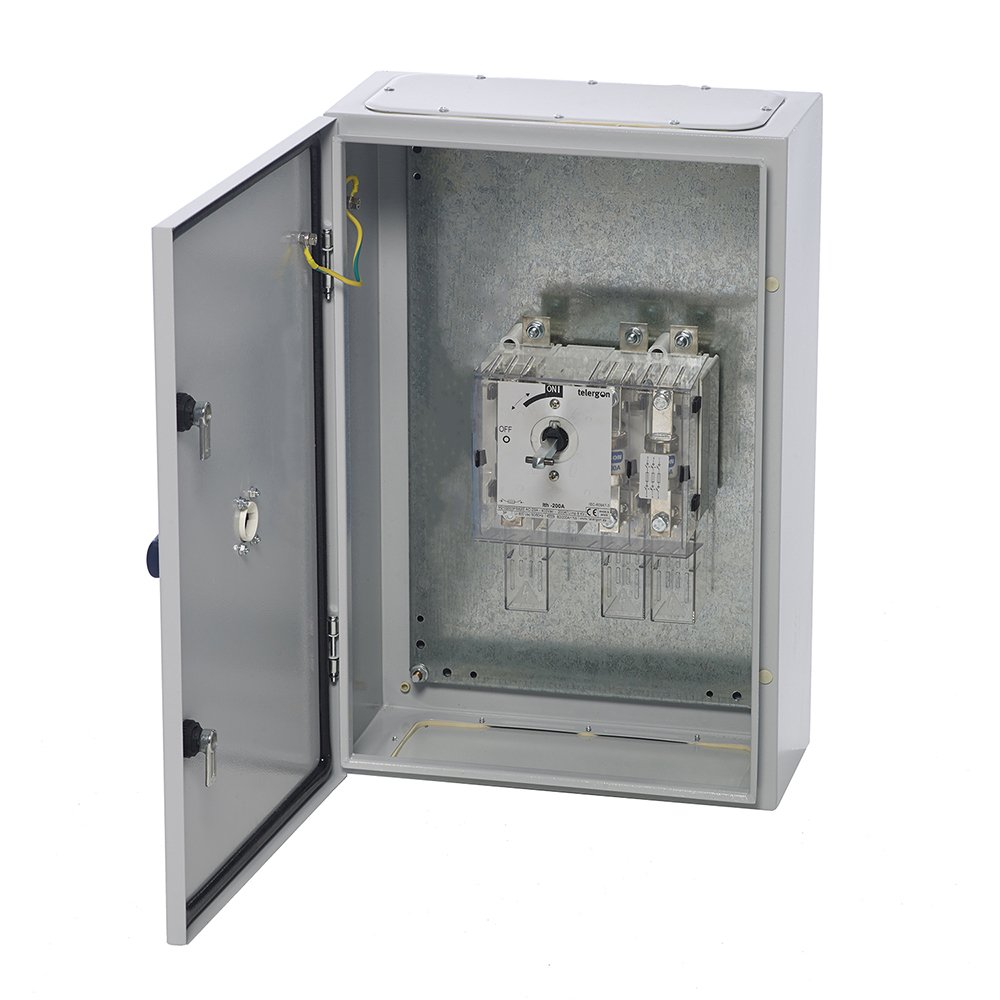

Europa LBF8003PSNME 800A 3-Pole + Switched Neutral IP65 Steel Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF8003PSNME
- EAN:
- 5056551222717
Europa LBF8003PSNME: an 800 A 3-pole + switched neutral enclosed BS88 switch fuse in an IP65 steel enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a main LV distribution board or incoming feeder in one unit.
- 800 A rated, 3-pole + switched neutral
- BS88 (HRC) fuse carriers built in
- Door-interlocked steel enclosure, IP65
- Padlockable handle for safe lock-off
- Genuine Europa Components product
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 800 A |
|---|---|
| Poles / neutral | 3 pole + switched neutralWhat does this mean?Three phase poles plus a dedicated neutral pole, all worked by the one handle, so the neutral is isolated together with the phases. |
| Supply | Three phase |
| Utilisation category | AC-22 |
| Current at AC-22 | 800 A |
| Current at AC-23 | 630 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP65 |
Construction
| Enclosure material | Sheet steel |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | Yes |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF8003PSNME |
| EAN | 5056551222717 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation | 800 A at 400 V AC-22; 630 A at 400 V AC-23 |
|---|---|
| Enclosure | steel, IP65 |
| Fuse type | BS88 (HRC) fuse links |
| BS88 fuse size | C1-C3 |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 12 kV |
| Rated short-circuit withstand and making current | 80 kA rms with fuses fitted |
| Terminal capacity | 2 x 240 mm² rigid copper (M12 lug bolt) |
| Mechanical endurance | 5,000 operating cycles |
Product details
Built for a main LV distribution board or incoming feeder, the Europa LBF8003PSNME is an 800 A three-pole switch fuse with a switched neutral pole in an IP65 steel enclosure. The handle is padlockable and interlocked with the door, so the fuses cannot be reached while the switch is closed.
Key features
- 800 A three-pole switch-disconnector with a switched neutral pole, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Steel enclosure rated IP65 - dust-tight and protected against water jets - for indoor industrial environments
Typical applications
Units of this size serve as main switch-fuses and heavy feeders: a main board incomer, a transformer outgoing switch, or the supply to a large process area, where HRC fuses are wanted for their very high breaking capacity.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3. IP65 means dust-tight and protected against water jets; Europa specifies the steel units for indoor use and states they are not suitable for outdoor or external applications.
