Europa LBF4003PSNGP 400A 3-Pole + Switched Neutral IP66 GRP Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF4003PSNGP
- EAN:
- 5056551210363

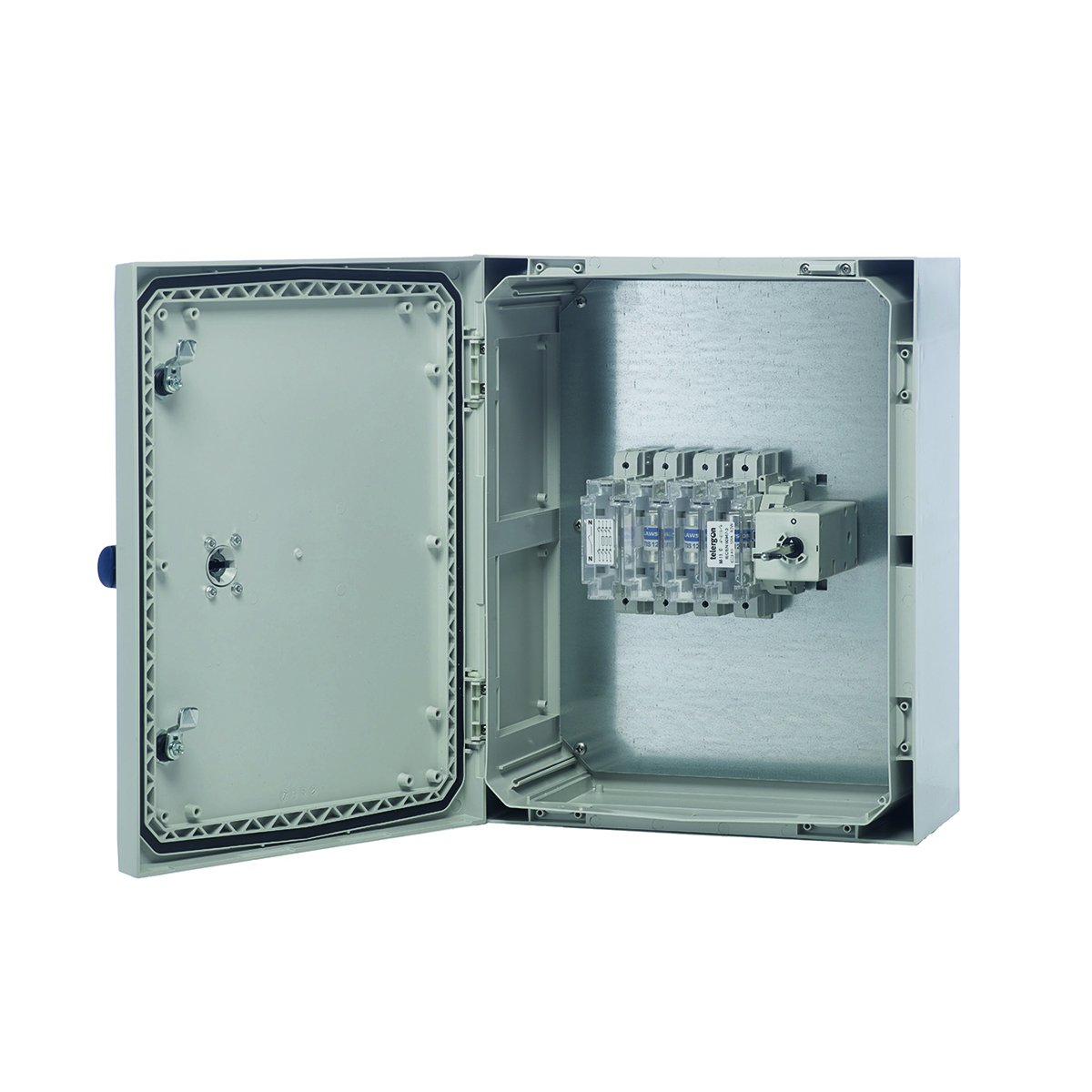

Europa LBF4003PSNGP: a 400 A 3-pole + switched neutral enclosed BS88 switch fuse in an IP66 GRP composite enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a sub-main or major plant item in one unit.
- 400 A rated, 3-pole + switched neutral
- BS88 (HRC) fuse carriers built in
- Door-interlocked GRP composite enclosure, IP66
- Padlockable handle for safe lock-off
- Genuine Europa Components product
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 400 A |
|---|---|
| Poles / neutral | 3 pole + switched neutralWhat does this mean?Three phase poles plus a dedicated neutral pole, all worked by the one handle, so the neutral is isolated together with the phases. |
| Supply | Three phase |
| Utilisation category | AC-23 |
| Current at AC-23 | 400 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP66 |
Construction
| Enclosure material | GRP |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | Yes |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF4003PSNGP |
| EAN | 5056551210363 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation category | AC-23 at 400 V (415 V) |
|---|---|
| Enclosure | glass-reinforced polyester (GRP) composite, IP66 |
| Fuse type | BS88 (HRC) fuse links |
Product details
Isolate and protect a sub-main with a single device. The Europa LBF4003PSNGP is a 400 A three-pole enclosed switch fuse with a switched neutral pole, pairing a door-interlocked load-break switch with BS88 fuse carriers inside one IP66 GRP composite enclosure.
Key features
- 400 A three-pole switch-disconnector with a switched neutral pole, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Glass-reinforced polyester (GRP) composite enclosure rated IP66: dust-tight and protected against powerful water jets, corrosion-resistant and non-conductive
- Defeat mechanism lets authorised personnel open the door with the switch on where testing demands it
Typical applications
At this rating the unit is normally a sub-main device: the incomer to a sub-distribution board, a supply to a production cell or plant room, a large motor control centre feed, or a site distribution point. It gives the assembly its short-circuit protection and gives the maintenance team a lockable isolator at the head of the circuit.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3, the standards covering low-voltage switchgear and switch-disconnectors. An IP66 rating means the enclosure is dust-tight and protected against powerful water jets, which is why the GRP version is chosen for washdown areas and corrosive atmospheres.
