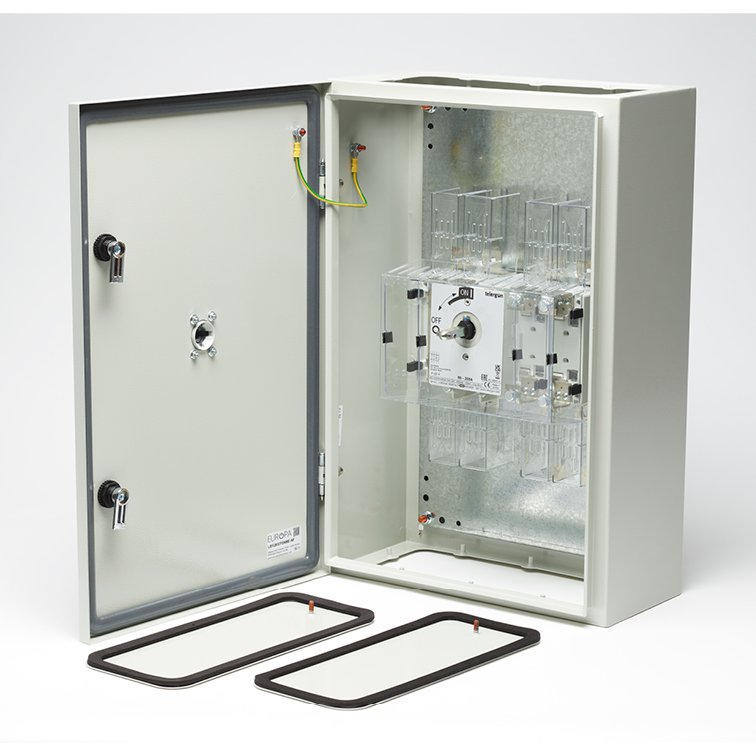

Europa LBF2003PSNME-NF 200A 3-Pole + Switched Neutral IP65 Steel Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF2003PSNME-NF
- EAN:
- 5056551228931
Europa LBF2003PSNME-NF: a 200 A 3-pole + switched neutral enclosed BS88 switch fuse in an IP65 steel enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a sub-main or distribution board in one unit. Supplied without fuse links.
- 200 A rated, 3-pole + switched neutral
- BS88 (HRC) fuse carriers built in
- Door-interlocked steel enclosure, IP65
- Padlockable handle for safe lock-off
- Supplied without fuse links (-NF)
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 200 A |
|---|---|
| Poles / neutral | 3 pole + switched neutralWhat does this mean?Three phase poles plus a dedicated neutral pole, all worked by the one handle, so the neutral is isolated together with the phases. |
| Neutral contact | Early make / late breakWhat does this mean?The neutral contact closes before and opens after the phase contacts (manufacturer's datasheet). |
| Supply | Three phase |
| Utilisation category | AC-23 |
| Current at AC-23 | 200 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP65 |
Construction
| Enclosure material | Sheet steel |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | No (order separately) |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF2003PSNME-NF |
| EAN | 5056551228931 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation category | AC-23 at 400 V (415 V) |
|---|---|
| Enclosure | steel, IP65 |
| Fuse type | BS88 (HRC) fuse links |
| BS88 fuse size | B1-B2 |
| Rated insulation voltage Ui | 800 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated short-circuit withstand and making current | 80 kA rms with fuses fitted |
| Terminal capacity | 120 mm² rigid copper (M8 lug bolt) |
| Mechanical endurance | 10,000 operating cycles |
| Fuse links | not supplied (-NF) |
Product details
Isolate and protect a sub-main with a single device. The Europa LBF2003PSNME-NF is a 200 A three-pole enclosed switch fuse with a switched neutral pole, pairing a door-interlocked load-break switch with BS88 fuse carriers inside one IP65 steel enclosure.
Key features
- 200 A three-pole switch-disconnector with a switched neutral pole, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Steel enclosure rated IP65 - dust-tight and protected against water jets - for indoor industrial environments
- Early-make / late-break neutral contact, so the neutral is made first and broken last
- Supplied without fuse links (-NF), so you can fit the fuse rating the circuit actually calls for
Typical applications
Typical duty is a sub-main: a distribution board in a factory bay, a workshop or laboratory supply, a large motor or compressor, a lift panel, or a tenant supply that needs its own fused isolator.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3. IP65 means dust-tight and protected against water jets; Europa specifies the steel units for indoor use and states they are not suitable for outdoor or external applications.
