Products
Europa Components · LB1004P
100 A · 4 pole · IP65 · Insulated plastic
Subtotal (1 unit)£59.41/unit
£59.41 ex VAT£71.29 inc VAT
Checking stock...

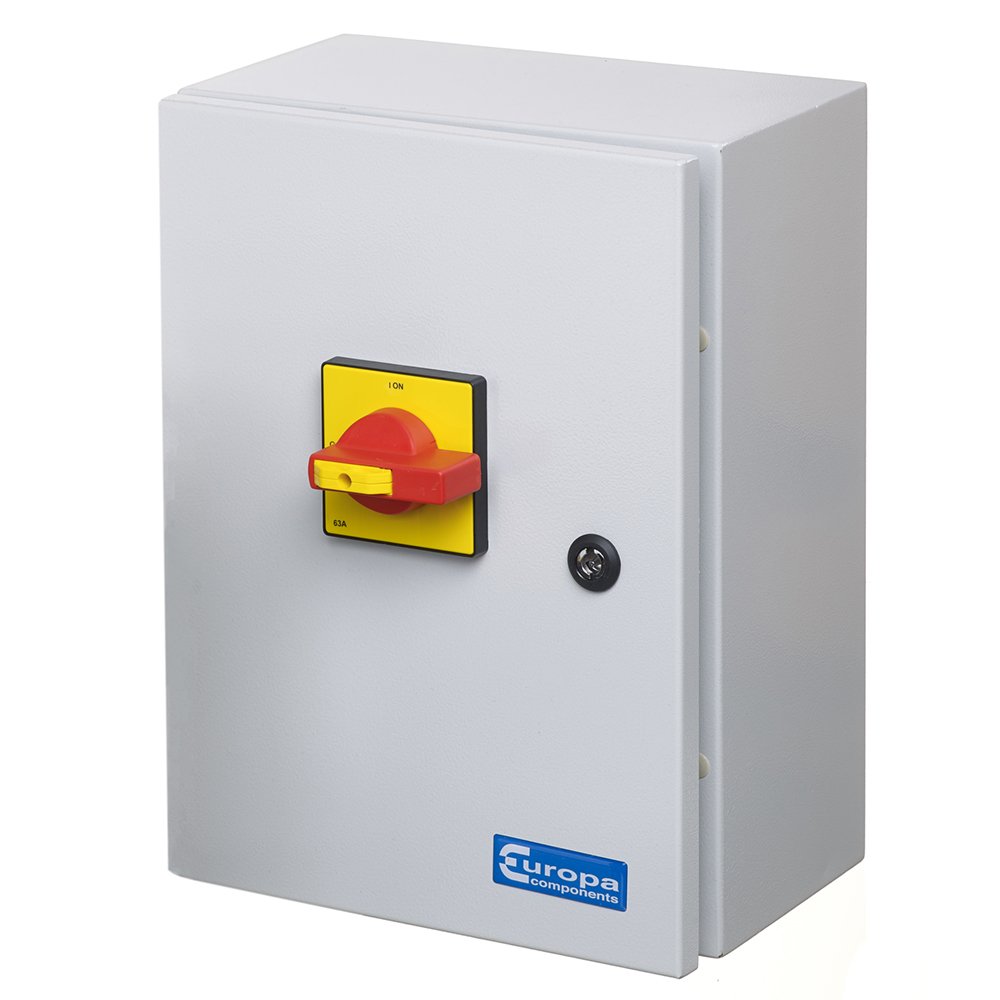

Europa Components · LB1004PME
100 A · 4 pole · IP65 · Sheet steel
Subtotal (1 unit)£108.66/unit
£108.66 ex VAT£130.39 inc VAT
Checking stock...

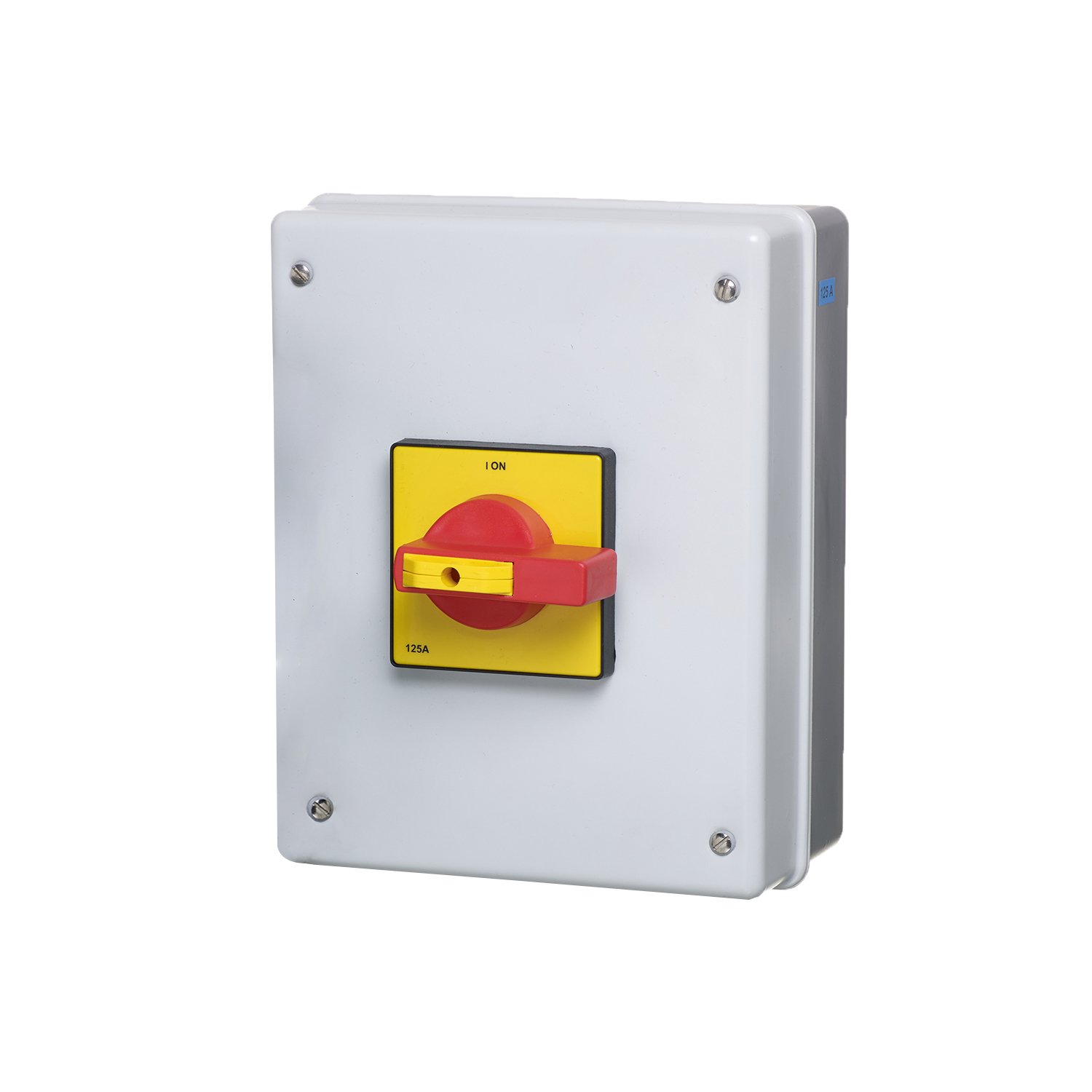

Europa Components · LB1004PSTB
100 A · 4 pole · IP54 · Sheet steel
Subtotal (1 unit)£52.99/unit
£52.99 ex VAT£63.59 inc VAT
Checking stock...

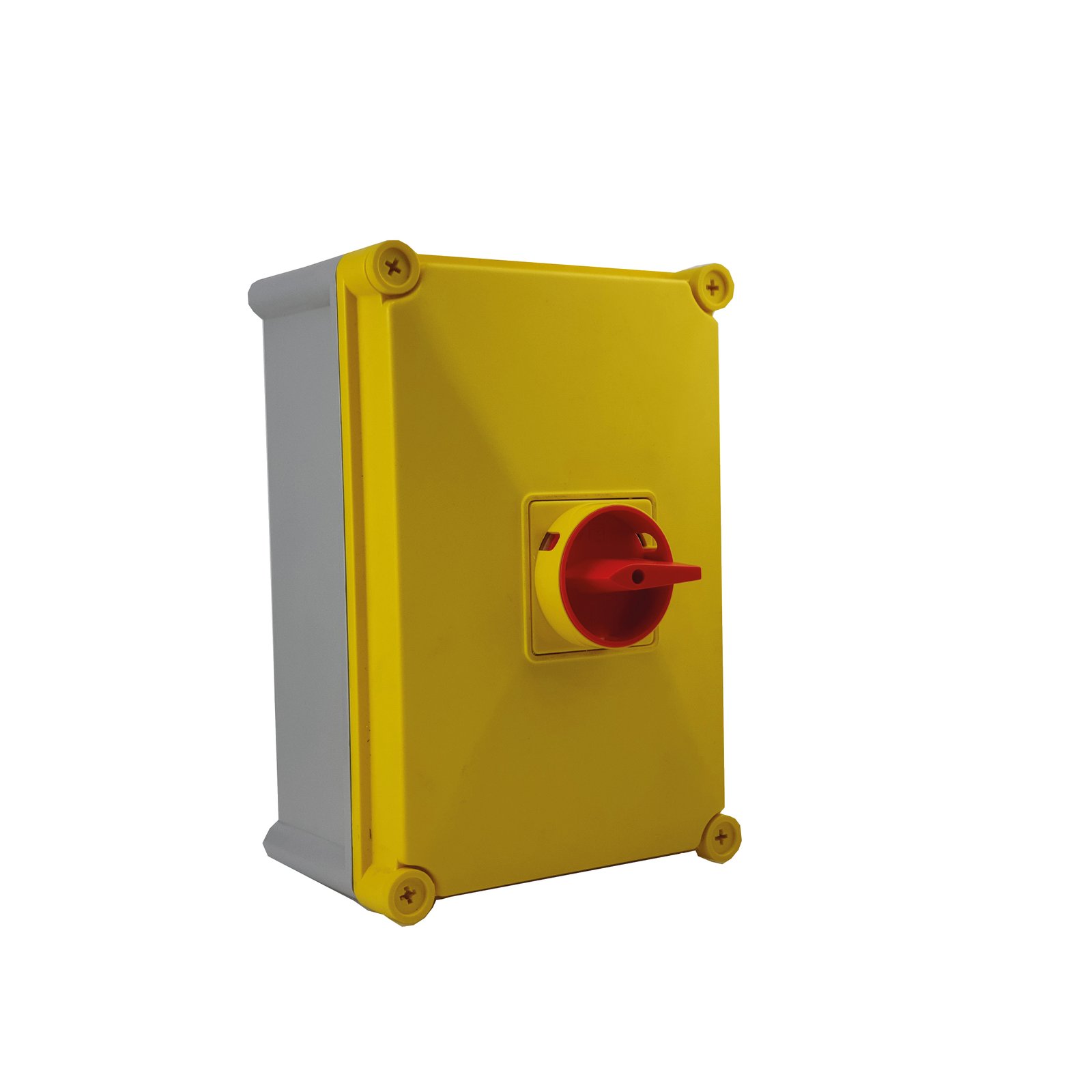

Europa Components · SAT-IS1004
100 A · 4 pole · IP66 · Insulated plastic
Subtotal (1 unit)£45.62/unit
£45.62 ex VAT£54.74 inc VAT
Checking stock...
Showing 4 of 4
Buying guide
A four pole isolator switches the three phases and the neutral together, so the whole circuit is isolated at one point. At 100A it suits larger motors, sub-mains and plant isolation.
Check the utilisation category on the product page: AC-23 ratings cover switching motors, while AC-22 suits mixed resistive and inductive loads. Choose the enclosure for the location - insulated plastic for most indoor and outdoor uses, metal where impact resistance matters.
Questions
- What is the difference between a 4 pole and a TP&SN isolator?
- A 4 pole isolator switches the neutral like a phase. A TP&SN (triple pole and switched neutral) isolator has a separate neutral contact; on the Europa LB and LBF ranges it makes before and breaks after the phases.
- Can a 100A isolator switch a motor?
- Yes, if it carries an AC-23 rating at the motor's voltage that covers the motor's full-load current. The AC-23 figure is on each product page and datasheet.
- Can the isolator be locked off?
- Rotary isolators for machine isolation normally have a handle that can be padlocked in the off position. The product page and datasheet confirm it for each model.
