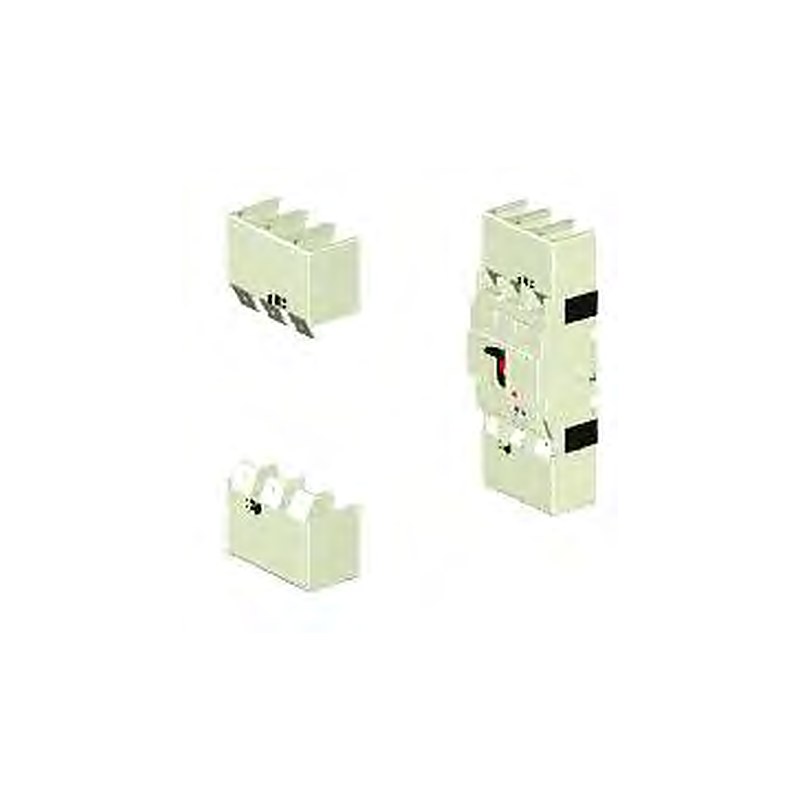

Terasaki's catalogue picture of this product family; see the datasheet for exact details.
Terasaki 045776 Terminal Cover PMB, 4-Pole, for TemBreak 2 800A Frame
- Brand:
- Terasaki
- Part number:
- 045776
PMB-pattern terminal cover for one end of a 4-pole TemBreak 2 S800 breaker on a plug-in base (800 A frame). Terasaki part number 045776.
- PMB terminal cover, 4-pole, 800 A frame
- For S800 breakers on a plug-in base
- Front-connected S800s take 081057
- 3-pole PMB cover: 045769
Available to order
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Poles / neutral | 4 pole |
|---|
Fit
| Fits device | Terasaki S800-NN, Terasaki S800-NF, Terasaki S800-NJ, Terasaki S800-NE |
|---|---|
| Fits MCCB frame | 800 A |
| Panelboard range | Resilience Standard, Resilience PlusWhat does this mean?Incomer and outgoing ways in one wall-mounted board. 250 A or 400 A busbars, 4 to 18 outgoing ways, outgoing MCCBs up to 125 A, Form 3b Type 2, doors included. Modular: a separate incomer housing beside the panel board, with add-on enclosures and cableways. 400 A or 800 A busbars, 6 to 18 outgoing ways, outgoing MCCBs up to 250 A (400 A on the twin board), Form 3a or 3b Type 2, doors optional. |
Identification
| Brand | Terasaki |
|---|---|
| Part number | 045776 |
| Range | Terasaki TemBreak2 |
| Type | Terminal cover |
More technical data
| Type | terminal cover, PMB pattern, single |
|---|---|
| Poles | 4; frame: 800 A TemBreak 2 |
| Front-connection alternative | 081057 |
| Not with | interpole barriers on the same breaker |
Product details
Terasaki 045776 is the 4-pole PMB-pattern terminal cover for TemBreak 2 breakers on the 800 A frame, intended for an S800 mounted on a plug-in base. One cover shrouds the terminations at one end of the breaker, across all four poles.
Key features
- PMB pattern for 4-pole S800 breakers on a plug-in base
- Single cover; two are needed where both ends are shrouded
- Front-connected 4-pole S800 breakers take the FC cover 081057 instead
- Not combined with interpole barriers on the same breaker
Typical applications
Four-pole S800 breakers on plug-in bases in switchboards and motor control centres, where the terminations must be shrouded. A front-connected S800, such as a 4-pole incomer in a Resilience panel board, needs the front-connection cover 081057 rather than this one. Ask us if you are unsure which mounting your breaker uses.
Listed for the TemBreak 2 S800-NJ, S800-NE, S800-NF and S800-NN, 4-pole, when mounted on a plug-in base. The 3-pole PMB cover is 045769.
Genuine Terasaki product. Add it to your cart once you have confirmed your breaker's mounting.
