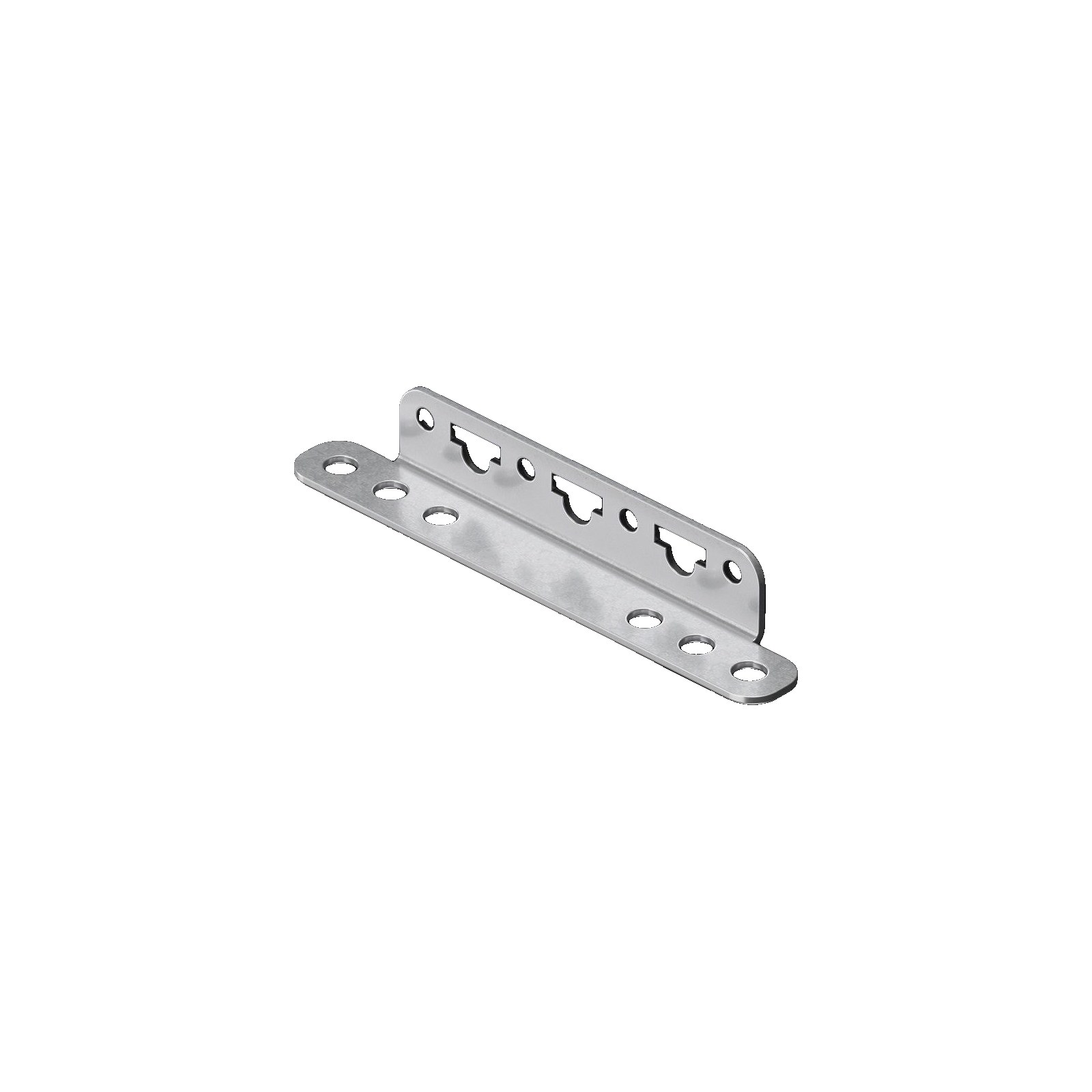

Illustration - our own render; see the datasheet for exact details.
Rittal 6205.100 Mounting Bracket for AX Operating Housings and AX Interior Rail, Pack of 4
- Brand:
- Rittal
- Part number:
- 6205.100
- EAN:
- 4028177536197
Pack of four zinc-plated sheet steel mounting brackets for interior installation in Rittal AX operating housings and on the AX interior installation rail. Rittal part number 6205.100.
- Mounting bracket for AX operating housings
- Fits the AX interior installation rail
- Zinc-plated sheet steel
- Pack of 4
20 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 0.36 kg |
|---|
Construction
| Material | Steel |
|---|
Fit
| Fits enclosure family | Rittal AX operating housing |
|---|
What's supplied
| Pack quantity | Pack of 4 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 6205.100 |
| EAN | 4028177536197 |
| Range | Rittal AX |
| Type | Mounting bracket |
More technical data
| Product type | mounting bracket |
|---|---|
| Installation options | Comfort Panel from 74 mm installation depth; Optipanel from 100 mm installation depth; AX interior installation rail |
| Assembly | in AX sheet steel only with the AX interior installation rail |
| Material | sheet steel, zinc-plated |
| Supply includes | assembly parts |
| Pack weight | 0.36 kg |
Product details
The Rittal 6205.100 is a pack of four mounting brackets for interior installation, made from zinc-plated sheet steel, supplied with assembly parts and listed for AX operating housings.
Key features
- Zinc-plated sheet steel, assembly parts included
- Installation options for Comfort Panel (from 74 mm installation depth) and Optipanel (from 100 mm installation depth)
- Mounts on the AX interior installation rail
- In AX sheet steel enclosures, installed only together with that rail
- Pack of 4
Typical applications
Operating housings carry operator panels, displays and controls, and the interior installation has to be planned around them. These brackets are listed for that work in AX operating housings. Rittal gives three installation options: a Comfort Panel (for installation depths of 74 mm and more), an Optipanel (100 mm and more) and the AX interior installation rail. If you use them in an AX sheet steel enclosure, they must be fitted in conjunction with the interior installation rail that matches the enclosure depth.
Rittal's accessory lists name this bracket for ten AX operating housings, from 300 to 600 mm wide and 155 or 210 mm deep.
