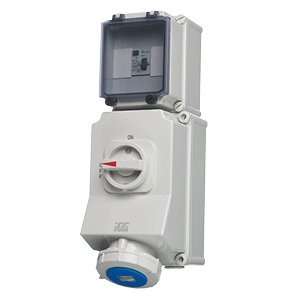

Europa 63A 230V 2P+E IP65 Interlocked Switched Socket with Type A RCCB, Blue
- Brand:
- Europa Components
- Part number:
- SISRAW633P
- EAN:
- 5056551222922
Europa 63 A 230 V 2P+E interlocked switch socket with an integral Type A RCCB, rated IP65. The mechanical interlock means the plug cannot be inserted or withdrawn while the supply is switched on.
- Mechanically interlocked: no plug movement while the supply is switched on
- Integral Type A RCCB for residual current protection
- IP65 dust-tight, jet-proof enclosure
- 63 A 230 V 2P+E IEC 60309 outlet, colour coded blue
- Genuine Europa Components, trade prices, fast UK dispatch
7 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 63 A |
|---|---|
| Supply | Single phase |
| Voltage / colour | 230 V blue |
| Pins | 2P+E (3 pin) |
| Earth contact position | 6h |
Protection
| RCD device | RCCB |
|---|---|
| RCD type | Type A |
| RCD rated current | 80 A |
| RCD sensitivity | 30 mA |
| Switched and interlocked | Yes |
| IP rating | IP65 |
Fit
| Mounting | Surface / wall |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | SISRAW633P |
| EAN | 5056551222922 |
More technical data
| Rated voltage | 230 V single phase |
|---|---|
| Configuration | 2P+E (3-pin) |
| Colour code | blue (200-250 V band) |
| Residual current protection | integral RCCB, Type A |
| Switching | integral switch, mechanically interlocked with the outlet |
Product details
At 63 A, breaking a circuit at the plug pins is not an option. The Europa 63 A 230 V 2P+E interlocked switch socket forces the supply off before the plug can move, and adds Type A residual current protection inside an IP65 enclosure.
Key features
- Mechanical interlock between switch and outlet: the plug cannot be inserted or withdrawn while the switch is on, and the switch cannot be closed until the plug is fully home
- Integral Type A RCCB gives residual current protection at the point of use, responding to pulsating DC residual currents as well as sinusoidal AC
- IP65 enclosure, dust-tight and protected against water jets from any direction
- 63 A 230 V 2P+E IEC 60309 outlet, colour coded blue and voltage keyed
- Three-pin single-phase arrangement of line, neutral and earth
- Local switched isolation, so the machine can be made safe without a walk back to the distribution board
Typical applications
A 63 A single-phase outlet, roughly 14.5 kVA, serves large heaters, drying plant, event and catering supplies and temporary distribution. At this rating the interlock earns its place, because breaking 63 A at the plug pins would be both dangerous and destructive.
Compliance
IP65 is defined in BS EN 60529 as dust-tight and protected against water jets from any direction, suiting wash-down bays, external walls and dusty production areas. The outlet follows the IEC 60309 industrial pattern for pin arrangement, colour and voltage keying. Note that an RCCB provides residual current protection only: overcurrent protection for the circuit must still be provided upstream by a correctly rated fuse or circuit breaker, and the installation designed and tested to BS 7671.
