Europa 500x700x245mm IP65 Insulated ABS Enclosure, Clear Polycarbonate Door
- Brand:
- Europa Components
- Part number:
- PBE705024C
- EAN:
- 5056551214095

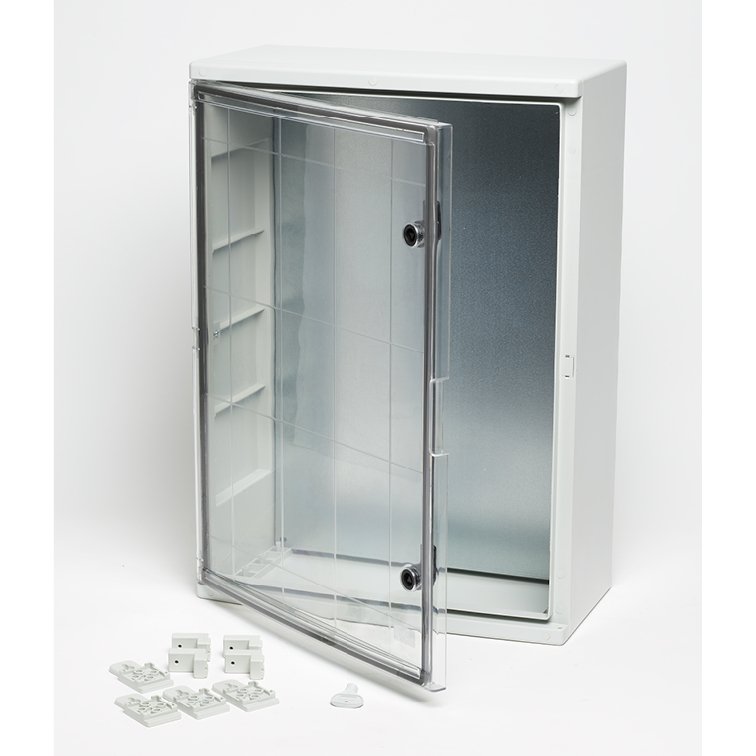

Europa IP65 insulated ABS enclosure, 500 x 700 x 245 mm, with a hinged clear polycarbonate door. The window lets you read meters and check breaker positions without opening the enclosure. Back plate and fixing brackets included.
- IP65 dust-tight, jet-proof insulated ABS
- 500 x 700 x 245 mm external (W x H x D)
- Clear polycarbonate door for at-a-glance checks
- Back plate and fixing brackets included
- Non-conductive: no enclosure earth bond
3 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Protection
| IP rating | IP65 |
|---|
Dimensions
| Size (W x H x D) | W 500 x H 700 x D 245 mm |
|---|
Construction
| Enclosure material | ABS |
|---|---|
| Door / lid | Clear door |
| Doors | Single door |
| Box type | Hinged-door enclosure |
| Colour | RAL 7035 |
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Mounting plate included | Yes |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | PBE705024C |
| EAN | 5056551214095 |
| Range | Europa PBE |
More technical data
| Material | ABS, colour light grey RAL 7035 |
|---|---|
| Door | hinged, clear polycarbonate |
- Back plate and fixing brackets included
Product details
The Europa 500 x 700 x 245 mm IP65 insulated ABS enclosure with a clear polycarbonate door suits assemblies that get looked at more often than they get opened. Meters, indicator lamps and MCB positions stay visible through the door, so routine checks do not break the seal or expose live parts. The moulded ABS body is non-conductive and free of the corrosion that comes with painted steel. Inside there is room for a large, deep assembly - drives, transformers and distribution gear together.
Key features
- Hinged clear polycarbonate door: read meters, lamps and breaker positions with the enclosure closed
- IP65: dust-tight and jet-proof, so it copes with washdown and sheltered outdoor positions
- Insulated ABS body - non-conductive, corrosion-free and no earth bond to maintain
- Back plate and fixing brackets supplied, so it is ready to populate and wall mount
Typical applications
At 500 x 700 x 245 mm the usual duties are motor control and drive panels, water treatment and pumping plant, and industrial distribution where an insulated body is preferred to steel. Insulated ABS is the sensible choice indoors and in sheltered positions where a steel enclosure would be heavier, need bonding and eventually corrode.
Compliance
IP65, as defined by the IP code in BS EN 60529, means dust-tight and protected against water jets from any direction: dusty production areas and routine hose-down cleaning. The rating applies to a correctly closed enclosure, so cable entries should be made with glands of an equal or better rating.
Genuine Europa product at trade-direct prices, with fast UK dispatch.
