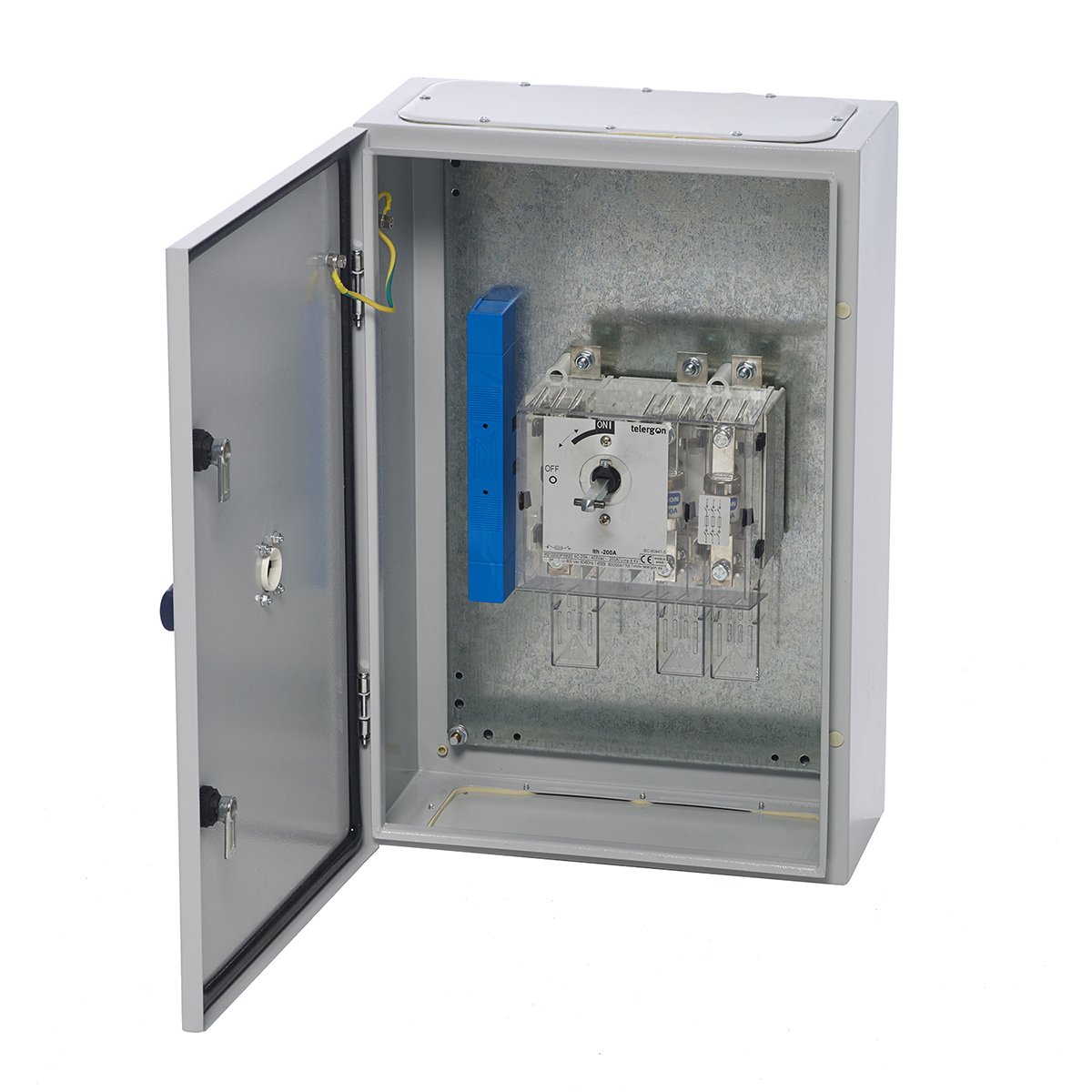

Europa LBF6303PNLME-NF 630A 3-Pole + Neutral Link IP65 Steel Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF6303PNLME-NF
- EAN:
- 5056551228092
Europa LBF6303PNLME-NF: a 630 A 3-pole + neutral link enclosed BS88 switch fuse in an IP65 steel enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a main LV distribution board or incoming feeder in one unit. Supplied without fuse links.
- 630 A rated, 3-pole + neutral link
- BS88 (HRC) fuse carriers built in
- Door-interlocked steel enclosure, IP65
- Padlockable handle for safe lock-off
- Supplied without fuse links (-NF)
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 630 A |
|---|---|
| Poles / neutral | 3 pole + neutral linkWhat does this mean?Only the three phases are switched; the neutral runs through a bolted link that stays connected when the switch is off and is unbolted with a tool for testing. |
| Supply | Three phase |
| Utilisation category | AC-23 |
| Current at AC-23 | 630 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP65 |
Construction
| Enclosure material | Sheet steel |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | No (order separately) |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF6303PNLME-NF |
| EAN | 5056551228092 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation category | AC-23 at 400 V (415 V) |
|---|---|
| Enclosure | steel, IP65 |
| Fuse type | BS88 (HRC) fuse links |
| BS88 fuse size | C1-C2 |
| Rated insulation voltage Ui | 1000 V |
| Rated impulse withstand voltage Uimp | 12 kV |
| Rated short-circuit withstand and making current | 80 kA rms with fuses fitted |
| Terminal capacity | 2 x 185 mm² rigid copper (M12 lug bolt) |
| Mechanical endurance | 5,000 operating cycles |
| Fuse links | not supplied (-NF) |
Product details
The Europa LBF6303PNLME-NF gives a main distribution board its own lockable isolator and its own BS88 fuse protection in one IP65 steel unit rated 630 A, with a neutral link for full four-wire working.
Key features
- 630 A three-pole switch-disconnector with a neutral link, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Steel enclosure rated IP65 - dust-tight and protected against water jets - for indoor industrial environments
- Supplied without fuse links (-NF), so you can fit the fuse rating the circuit actually calls for
Typical applications
This is main-switch territory: an incoming mains switch-fuse, the incomer to a main LV board, or a feeder between a transformer and a main panel, on industrial sites, water treatment works and large commercial buildings.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3. IP65 means dust-tight and protected against water jets; Europa specifies the steel units for indoor use and states they are not suitable for outdoor or external applications.
