Europa LBF2003PNLGP 200A 3-Pole + Neutral Link IP66 GRP Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF2003PNLGP
- EAN:
- 5056551210226

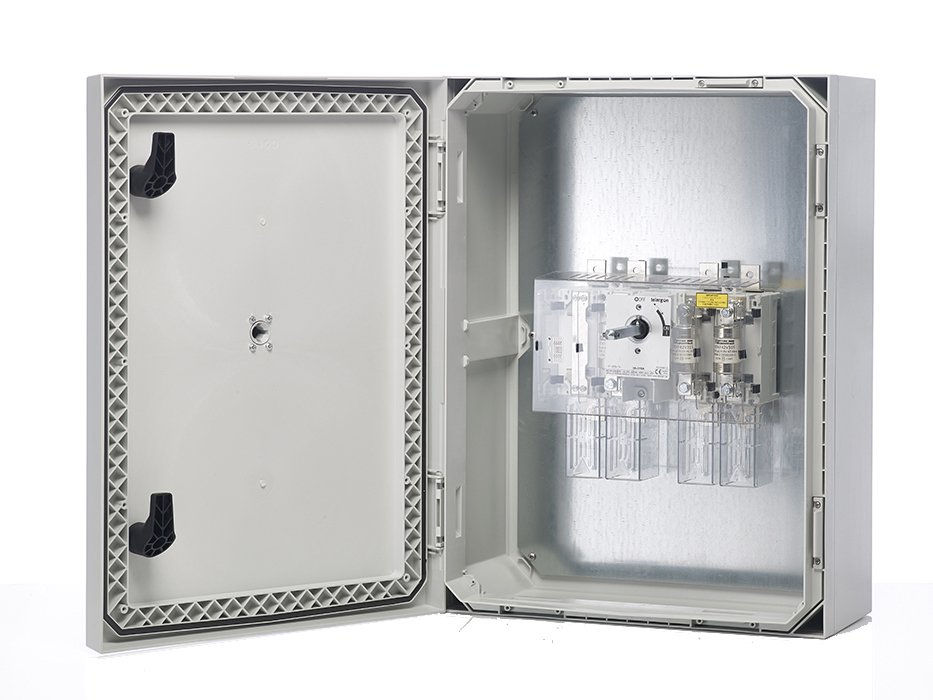

Europa LBF2003PNLGP: a 200 A 3-pole + neutral link enclosed BS88 switch fuse in an IP66 GRP composite enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a sub-main or distribution board in one unit.
- 200 A rated, 3-pole + neutral link
- BS88 (HRC) fuse carriers built in
- Door-interlocked GRP composite enclosure, IP66
- Padlockable handle for safe lock-off
- Genuine Europa Components product
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 200 A |
|---|---|
| Poles / neutral | 3 pole + neutral linkWhat does this mean?Only the three phases are switched; the neutral runs through a bolted link that stays connected when the switch is off and is unbolted with a tool for testing. |
| Supply | Three phase |
| Utilisation category | AC-23 |
| Current at AC-23 | 200 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP66 |
Construction
| Enclosure material | GRP |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | Yes |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF2003PNLGP |
| EAN | 5056551210226 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation category | AC-23 at 400 V (415 V) |
|---|---|
| Enclosure | glass-reinforced polyester (GRP) composite, IP66 |
| Fuse type | BS88 (HRC) fuse links |
| BS88 fuse size | B1-B2 |
| Rated insulation voltage Ui | 800 V |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated short-circuit withstand and making current | 80 kA rms with fuses fitted |
| Terminal capacity | 120 mm² rigid copper (M8 lug bolt) |
| Mechanical endurance | 10,000 operating cycles |
Product details
Isolate and protect a sub-main with a single device. The Europa LBF2003PNLGP is a 200 A three-pole enclosed switch fuse with a neutral link, pairing a door-interlocked load-break switch with BS88 fuse carriers inside one IP66 GRP composite enclosure.
Key features
- 200 A three-pole switch-disconnector with a neutral link, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Glass-reinforced polyester (GRP) composite enclosure rated IP66: dust-tight and protected against powerful water jets, corrosion-resistant and non-conductive
Typical applications
Look for it at the head of a sub-circuit that matters: a bay or workshop board, a big motor or compressor, a lift panel, a kitchen or laboratory supply, or a metered feed to a tenanted unit.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3. IP66 means the enclosure is dust-tight and protected against powerful water jets, which is why the GRP version suits washdown areas and corrosive atmospheres.
