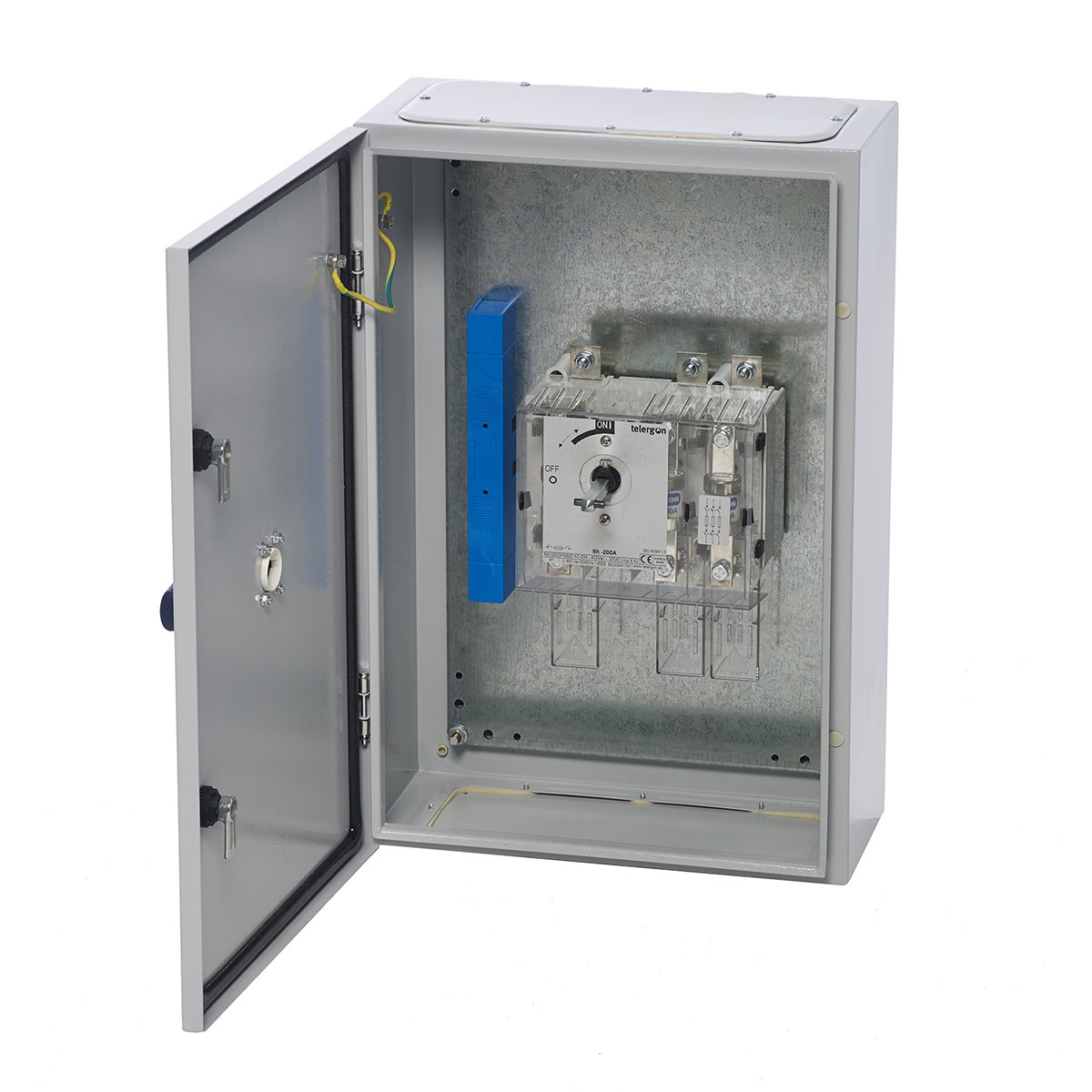

Europa LBF3153PNLME-NF 315A 3-Pole + Neutral Link IP65 Steel Enclosed BS88 Switch Fuse
- Brand:
- Europa Components
- Part number:
- LBF3153PNLME-NF
- EAN:
- 5056551226364
Europa LBF3153PNLME-NF: a 315 A 3-pole + neutral link enclosed BS88 switch fuse in an IP65 steel enclosure, with a door-interlocked, padlockable handle. Isolation and fuse protection for a sub-main or major plant item in one unit. Supplied without fuse links.
- 315 A rated, 3-pole + neutral link
- BS88 (HRC) fuse carriers built in
- Door-interlocked steel enclosure, IP65
- Padlockable handle for safe lock-off
- Supplied without fuse links (-NF)
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 315 A |
|---|---|
| Poles / neutral | 3 pole + neutral linkWhat does this mean?Only the three phases are switched; the neutral runs through a bolted link that stays connected when the switch is off and is unbolted with a tool for testing. |
| Supply | Three phase |
| Utilisation category | AC-23 |
| Current at AC-23 | 315 A |
| Fuse type | BS88 |
Protection
| Door interlock | Yes |
|---|---|
| IP rating | IP65 |
Construction
| Enclosure material | Sheet steel |
|---|
Fit
| Mounting | Surface / wall |
|---|
What's supplied
| Fuses supplied | No (order separately) |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | LBF3153PNLME-NF |
| EAN | 5056551226364 |
| Range | Europa LBF |
| Type | Switch fuse |
More technical data
| Utilisation category | AC-23 at 400 V (415 V) |
|---|---|
| Enclosure | steel, IP65 |
| Fuse type | BS88 (HRC) fuse links |
| Fuse links | not supplied (-NF) |
Product details
Isolate and protect a sub-main with a single device. The Europa LBF3153PNLME-NF is a 315 A three-pole enclosed switch fuse with a neutral link, pairing a door-interlocked load-break switch with BS88 fuse carriers inside one IP65 steel enclosure.
Key features
- 315 A three-pole switch-disconnector with a neutral link, so the circuit is isolated in one action
- BS88 fuse carriers built in: overcurrent and short-circuit protection without a separate fuse box
- Door-interlocked enclosure - the door will not open with the switch in the ON position, keeping hands away from live fuse contacts
- Padlockable handle for safe isolation and lock-off during maintenance
- Steel enclosure rated IP65 - dust-tight and protected against water jets - for indoor industrial environments
- Supplied without fuse links (-NF), so you can fit the fuse rating the circuit actually calls for
- Defeat mechanism lets authorised personnel open the door with the switch on where testing demands it
Typical applications
Applications include feeding a sub-distribution board, a motor control centre, a large chiller or pump house, a section of a production line, or a temporary site supply. It is the device that lets a whole downstream section be dropped and locked off for maintenance while the fuses carry the short-circuit duty.
Compliance
Europa's LBF enclosed switch fuses are declared to EN 60947-1 and EN 60947-3, the standards covering low-voltage switchgear and switch-disconnectors. IP65 means dust-tight and protected against water jets. Europa specifies the steel-enclosed units for indoor use and states that they are not suitable for outdoor or external applications - choose the GRP version where the environment is harsher.
