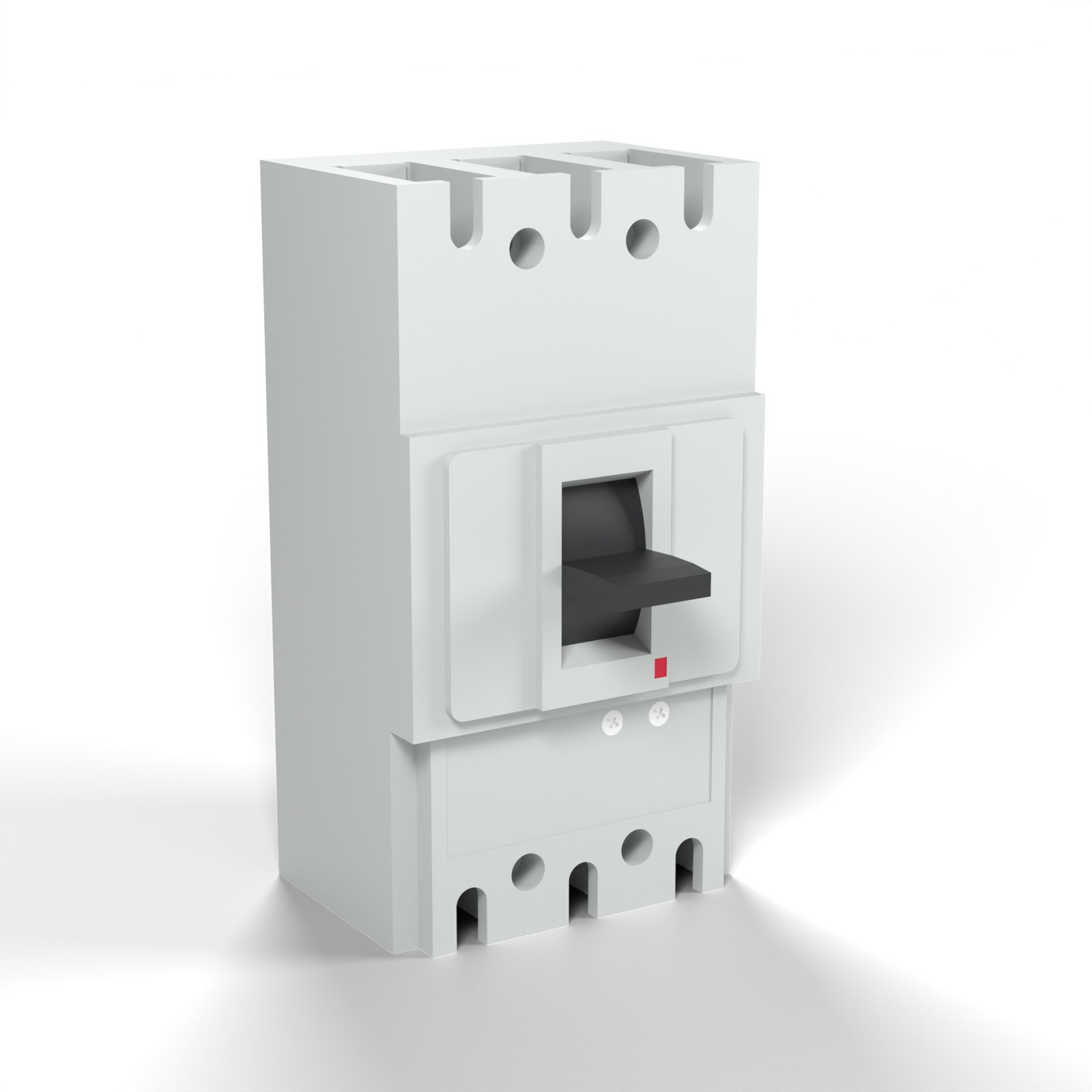

Illustration - our own representative render, not a photograph; see the datasheet for exact details.
Terasaki S250-SJ 250A 3-Pole MCCB, TemBreak 2 Lite 250A Frame, 40kA (930706)
- Brand:
- Terasaki
- Part number:
- 930706
TemBreak 2 Lite S250-SJ thermal-magnetic MCCB, 250 A, 3-pole, with a 40 kA breaking capacity at 400/415 V AC and adjustable thermal and magnetic trips. Terasaki part number 930706.
- 250 A, 3-pole, TemBreak 2 Lite 250 A frame
- Icu 40 kA / Ics 20 kA at 400/415 V AC
- Adjustable thermal and magnetic trips
- Front connection, M8 terminal screws
- Incomer for 400 A Resilience Plus boards
Available to order
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 250 A |
|---|---|
| Poles / neutral | 3 pole |
| Frame size | 250 A |
Protection
| Trip unit | Thermal-magnetic |
|---|---|
| Breaking capacity (Icu) | 40 kA |
Fit
| Panelboard range | Resilience PlusWhat does this mean?Modular: a separate incomer housing beside the panel board, with add-on enclosures and cableways. 400 A or 800 A busbars, 6 to 18 outgoing ways, outgoing MCCBs up to 250 A (400 A on the twin board), Form 3a or 3b Type 2, doors optional. |
|---|
Identification
| Brand | Terasaki |
|---|---|
| Part number | 930706 |
| Range | Terasaki TemBreak2 Lite |
More technical data
| Series | TemBreak 2 Lite S250-SJ, 250 A frame, 3-pole |
|---|---|
| In | 250 A at 50 °C; thermal-magnetic, adjustable; utilisation category A |
| Icu/Ics at 400/415 V AC | 40/20 kA; at 440 V AC: 30/15 kA |
| Ue | 690 V AC 50/60 Hz, 250 V DC; Ui 800 V; Uimp 8 kV |
| Dimensions (W x H x D) | 105 x 165 x 68 mm; weight 1.5 kg |
| Endurance | 6,000 electrical, 18,000 mechanical operations |
Product details
The Terasaki S250-SJ 930706 is a 250 A, 3-pole MCCB on the TemBreak 2 Lite 250 A frame with an ultimate breaking capacity of 40 kA at 400/415 V AC. Its thermal-magnetic trip unit is adjustable for both overload and short-circuit pick-up.
Key features
- Rated current In 250 A at 50 °C, with the thermal (overload) pick-up adjustable
- Adjustable magnetic trip: band of 400-600 % of In at minimum, 880-1320 % at maximum
- Front connection with M8 terminal screws; extension bars, cable clamps and rear connection optional
Typical applications
Incoming device for a 400 A Resilience Plus panel board, where it sits in a separate incomer housing (sold separately). The Panel Builder offers the 3-pole version as an incomer or as an outgoing device. As a 3-pole incomer it needs the board's matching neutral link, ordered separately. It also suits feeder protection in switchboards where the fault level is within 40 kA at 415 V.
Compliance
Rated to IEC 60947-2 and EN 60947-2 according to the series datasheet (JIS C 8201-2-1 and NEMA AB-1 values also given).
Accessories that fit: auxiliary switch 002489; alarm switch 002557; shunt trips 003417, 003424, 003431, 003448, 003455, 003462 and 003479, or under-voltage releases 003547, 003554, 003561, 003578, 003585 and 003592 (one trip-coil pocket: one or the other, not both); handle lock 064906; terminal covers 065309, 065316 and 080456 with cover lock 065644; cable clamps 062247 and 062254; interpole barrier 065729. Interpole barriers and standard terminal covers cannot be fitted together.
Genuine Terasaki product. Add it to your cart, or ask us about project quantities.
