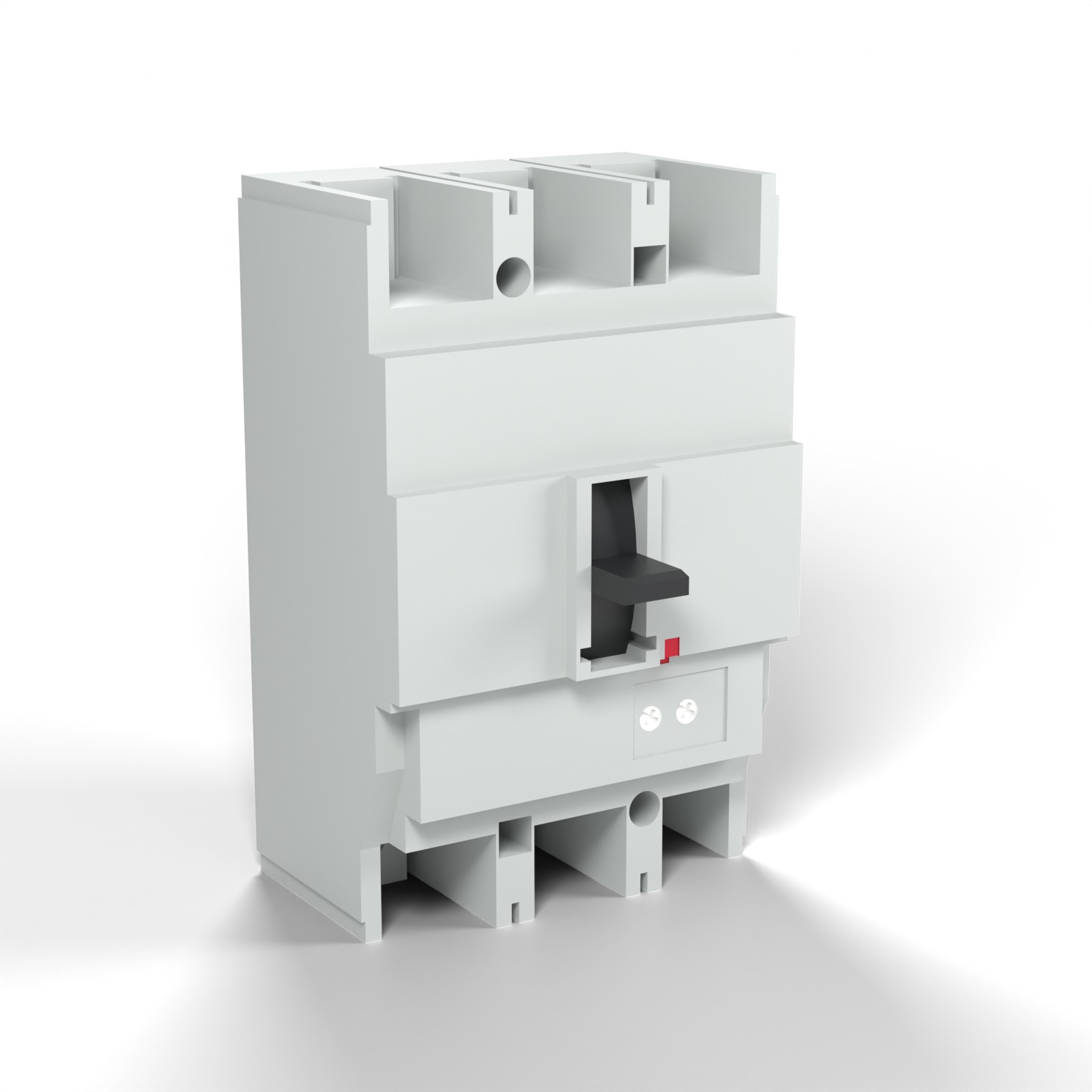

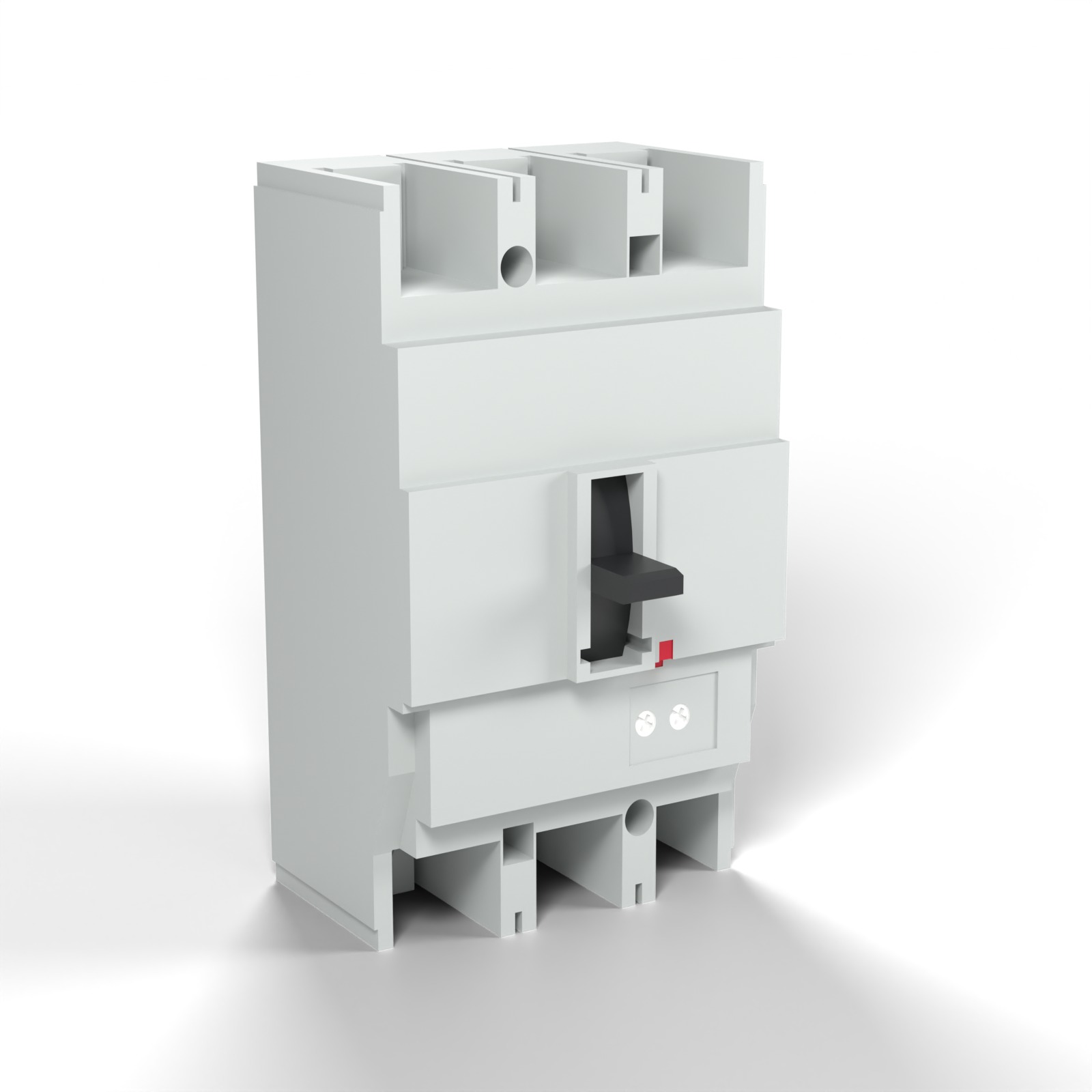

Illustration - our own representative render, not a photograph; see the datasheet for exact details.
Terasaki S160-SCJ 40A 3-Pole MCCB, TemBreak 2 Lite 160A Frame, 25kA (591990)
- Brand:
- Terasaki
- Part number:
- 591990
40 A three-pole TemBreak 2 Lite MCCB (adjustable thermal, fixed magnetic, 25 kA at 400/415 V AC) for small three-phase sub-boards on a Resilience Standard panelboard. Terasaki part number 591990.
- 40 A, 3 poles, TemBreak 2 Lite 160 A frame
- Icu 25 kA, Ics 13 kA at 400/415 V AC
- Adjustable thermal, fixed magnetic trip at 600 A
- Factory-fitted cable clamps (FW), 75 mm wide
- Outgoing device for Resilience Standard boards
Available to order
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 40 A |
|---|---|
| Poles / neutral | 3 pole |
| Frame size | 160 A |
Protection
| Trip unit | Thermal-magnetic |
|---|---|
| Breaking capacity (Icu) | 25 kA |
Fit
| Panelboard range | Resilience StandardWhat does this mean?Incomer and outgoing ways in one wall-mounted board. 250 A or 400 A busbars, 4 to 18 outgoing ways, outgoing MCCBs up to 125 A, Form 3b Type 2, doors included. |
|---|
Identification
| Brand | Terasaki |
|---|---|
| Part number | 591990 |
| Range | Terasaki TemBreak2 Lite |
More technical data
| Series | TemBreak 2 Lite S160-SCJ, 3 poles, 160 A frame |
|---|---|
| Rated current In | 40 A at 50 °C |
| Icu/Ics | 25/13 kA at 400/415 V AC, 15/7.5 kA at 440 V AC, 35/18 kA at 220/240 V AC |
| Trip unit | adjustable thermal, fixed magnetic; magnetic trip 600 A ±120 A (AC) |
| Utilisation category | A |
| Connection | front, with factory-fitted cable clamps (FW) |
| Dimensions (W x H x D) | 75 x 130 x 68 mm; weight 0.8 kg |
- Ue 525 V AC (50/60 Hz); Ui 690 V; Uimp 8 kV
Product details
A 40 A three-pole MCCB in the TemBreak 2 Lite S160-SCJ series: 160 A frame, adjustable thermal and fixed magnetic protection, 25 kA (Icu) and 13 kA (Ics) at 400/415 V AC. Terasaki lists it for the outgoing ways of Resilience Standard panelboards.
Key features
- 40 A, three poles, on the 160 A TemBreak 2 Lite frame, 75 mm wide
- Adjustable thermal (overload) trip with a fixed magnetic trip
- 25 kA (Icu) at 400/415 V AC, 35 kA at 220/240 V AC
- Cable clamp terminals (FW) fitted at the factory
Typical applications
40 A covers three-phase supplies to small distribution boards, air handling units, commercial kitchen equipment and medium-size heaters, with the thermal trip adjustable to match the connected load. The fixed magnetic trip is 600 A ±120 A, the same as the 25 A. Our online Panel Builder can place it on an outgoing way of a Resilience Standard board and produce the drawing and parts list.
Compliance
Terasaki declares the electrical characteristics to IEC 60947-2 and EN 60947-2, alongside JIS C 8201-2-1 Annex 1 and NEMA AB-1.
Listed accessories: auxiliary switch 002489, alarm switch 002557, handle lock 064906, terminal covers 065453 and 065248, plus a shunt trip or an under-voltage release (one per breaker, several coil voltages). Standard terminal covers cannot be combined with interpole barriers.
Genuine Terasaki product. Add it to your cart, or ask us about project quantities.
