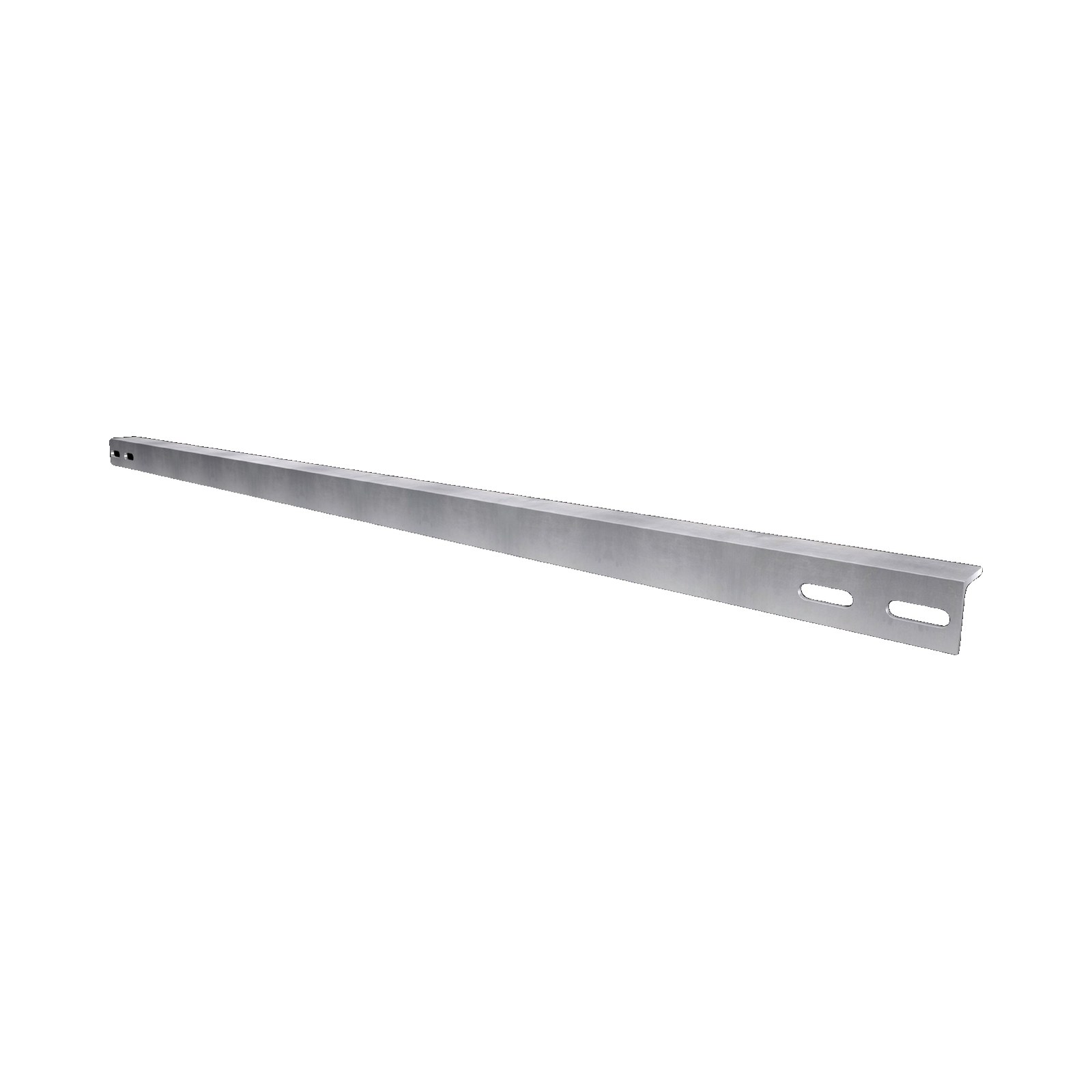

Illustration - our own render; see the datasheet for exact details.
Rittal 8619.440 Cable Clamp Rail, 1154 mm, for 1200 mm Wide VX and AX Enclosures, Pack of 2
- Brand:
- Rittal
- Part number:
- 8619.440
- EAN:
- 4028177921962
Zinc-plated steel cable clamp rail, 1154 mm long, for 1200 mm wide VX and AX enclosures, pack of 2 with assembly parts. Rittal part number 8619.440.
- Cable clamp rail, 1154 mm long
- For 1200 mm wide enclosures
- Pack of 2 with assembly parts
- Zinc-plated steel mounting angle
- Listed for the 1200 x 1200 x 400 mm AX enclosure
5 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 5.64 kg |
|---|---|
| Length | 1154 mm |
Construction
| Material | Steel |
|---|
Fit
| Fits enclosure family | Rittal AX sheet steel |
|---|---|
| Fits enclosure width | 1200 mm |
What's supplied
| Pack quantity | Pack of 2 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 8619.440 |
| EAN | 4028177921962 |
| Range | Rittal AX |
| Type | Cable clamp rail |
More technical data
| Type | cable clamp rail, mounting angle |
|---|---|
| Suitable for enclosure width | 1200 mm |
| Material | steel, zinc-plated |
| Supply includes | assembly parts |
Product details
The Rittal 8619.440 is a 1154 mm cable clamp rail in the form of a zinc-plated steel mounting angle, made for enclosures 1200 mm wide. It is supplied as a pack of two with assembly parts and gives a rigid rail on which incoming cables can be clamped and supported.
Key features
- Length 1154 mm, for 1200 mm enclosure width
- Zinc-plated steel mounting angle
- Pack of 2, assembly parts included
- In AX sheet steel enclosures, fitted with the AX rail for interior installation and the AX base configuration rail (not included)
- Also fits in the base of 1200 mm wide VX and VX SE enclosures
Typical applications
Clamp rails give heavier power and control cables a fixed support, so cable weight is not carried by terminals or glands and the run stays neat and easy to service. They suit AX compact enclosures and VX enclosures built as control or distribution panels. The range covers 400, 600, 800, 1000 and 1200 mm enclosure widths (8619.400 to 8619.440).
Compatibility: Rittal lists it for the 1200 x 1200 x 400 mm AX sheet steel enclosure, where it is fitted together with the AX rail for interior installation and the AX base configuration rail. It also fits in the base of 1200 mm wide VX and VX SE enclosures, in 1200 mm AX bases/plinths and in VX bases/plinths (with a holder/spacer, or one M8 nut for stainless steel plinths), and is listed for CX pedestal and one-piece console systems of the same width.
Genuine Rittal product. Add the pack to your cart, or ask us about project quantities.
