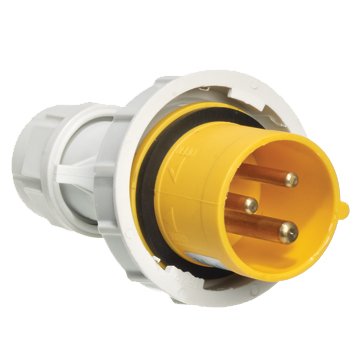

Europa IPW323F 32A 110V 2P + E 3-Pin IP67 Industrial Plug
- Brand:
- Europa Components
- Part number:
- IPW323F
- EAN:
- 5056551206830
Europa IPW323F 32A 110V 2P + E industrial plug to the IEC 60309 pattern, 3-pin and yellow coded. IP67 rated, giving a dust-tight body that also withstands the effects of temporary immersion in water, which suits exposed outdoor, wet and dusty work.
- 32A 110V 2P + E (3-pin) IEC 60309
- IP67 - dust-tight and watertight
- Yellow coded for the 100-130V band
- Fits the cable end that plugs into a matching socket
- Genuine Europa part, trade-direct pricing
75 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 32 A |
|---|---|
| Supply | Single phase |
| Voltage / colour | 110 V yellow |
| Pins | 2P+E (3 pin) |
| Earth contact position | 4h |
Protection
| Switched and interlocked | No |
|---|---|
| IP rating | IP67 |
Fit
| Mounting | Cable-mounted |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | IPW323F |
| EAN | 5056551206830 |
More technical data
| Voltage | 110V, 100-130V band |
|---|---|
| Configuration | 2P + E (3-pin) |
| Type | plug (pin half of the connector pair) |
| Colour code | yellow |
| Pattern | IEC 60309 (CEE / commando) |
| Manufacturer | Europa Components, part IPW323F |
Product details
The Europa IPW323F is a 32A 110V 3-pin industrial plug rated dust-tight, watertight IP67, made to the IEC 60309 (CEE) pattern that UK sites, workshops and event crews already work to. It terminates the flexible cable that goes into a matching socket-outlet, so plant can be connected and taken away without disturbing fixed wiring.
Key features
- Rated 32A at 110V, 2P + E (3-pin), to the IEC 60309 industrial connector pattern
- IP67 dust-tight and watertight rating for exposed outdoor use
- Yellow colour coding for the 100-130V band, so it cannot be mated with a connector from another voltage range
- Screw terminals and a cable gland sized for flexible supply cable, for a secure, strain-relieved termination
- Genuine Europa Components stock item, priced for trade buyers
Typical applications
This size is the everyday choice for heavier reduced low voltage plant - breakers, cut-off saws, larger site transformers and lighting strings. IP67 takes it outdoors: wet ground, washdown areas, yards, farms and anything left connected through a night of rain. Match the plug to the socket it will serve - same rating, pin count and voltage band - and size the cable and upstream protection for the load and the run length.
Compliance
Europa build this range to the IEC 60309 pattern (BS EN 60309-2 as adopted here), which sets the 3-pin arrangement and the yellow coding for the 100-130V band - the reason kit from different suppliers connects without adaptors. IP67 means a dust-tight body that also withstands the effects of temporary immersion in water. The connector gives no overload or short-circuit protection itself; that stays with the protective device on the circuit feeding it, alongside the RCD protection BS 7671 requires.
Buy the IPW323F from Switchgear Direct for genuine Europa stock and fast UK dispatch.
