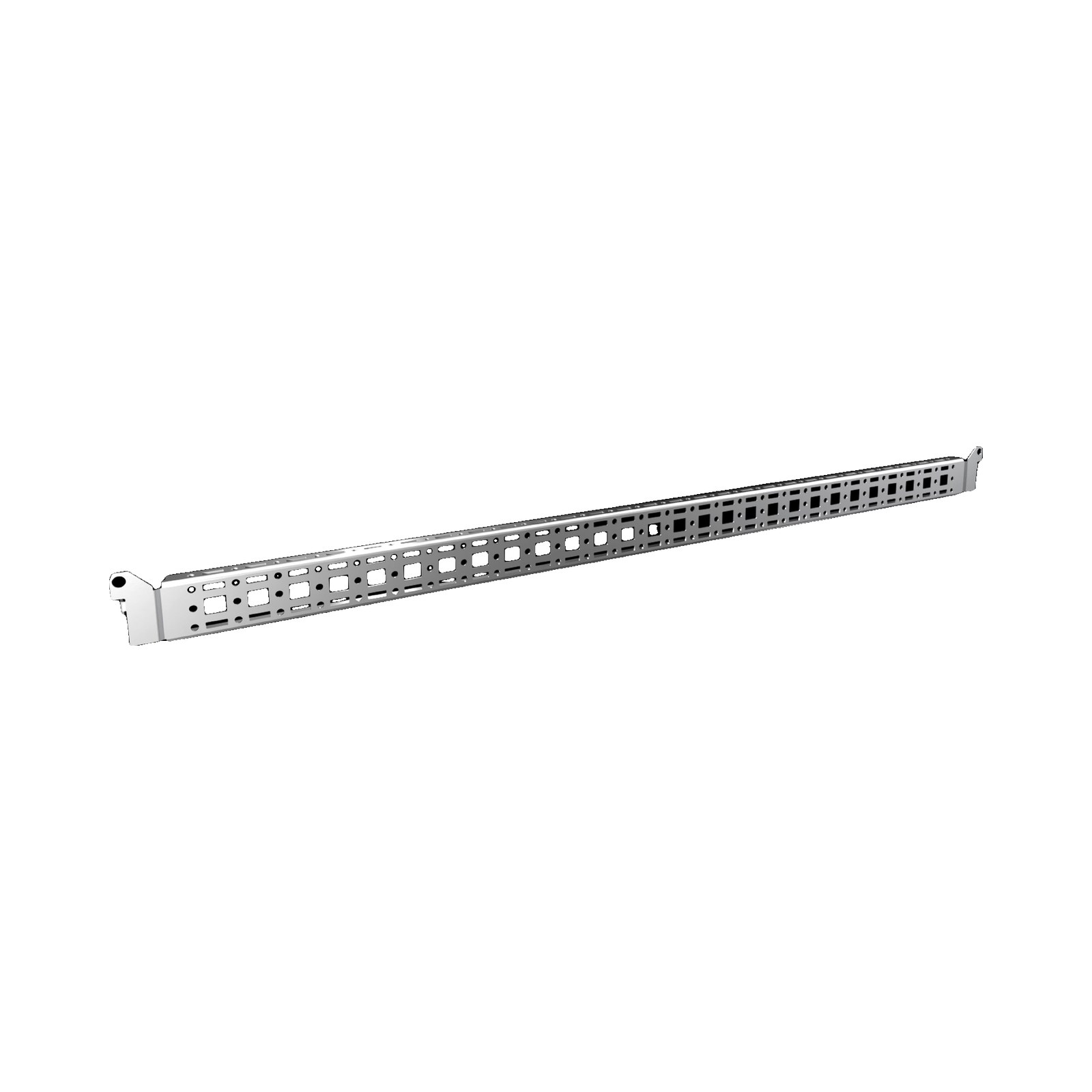

Illustration - our own render; see the datasheet for exact details.
Rittal 8619.740 Punched Section 14 x 39 mm, for 900 mm Door Width, Pack of 4
- Brand:
- Rittal
- Part number:
- 8619.740
- EAN:
- 4028177924673
Pack of four zinc-plated 14 x 39 mm punched sections with mounting flange, 775 mm between fixing points, for 900 mm door widths or 800 mm wide AX stainless steel enclosures. Rittal part number 8619.740.
- Pack of 4
- 775 mm between fixing points
- For AX stainless steel, 800 mm width
- 14 x 39 mm section with mounting flange
- Zinc-plated sheet steel
5 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 1.564 kg |
|---|
Construction
| Material | Steel |
|---|
Fit
| Fits enclosure family | Rittal AX stainless steel |
|---|---|
| Fits enclosure width | 900 mm |
What's supplied
| Pack quantity | Pack of 4 |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 8619.740 |
| EAN | 4028177924673 |
| Range | Rittal AX |
| Type | Punched door rail |
More technical data
| Section | 14 x 39 mm, with mounting flange |
|---|---|
| Distance between fixing points | 775 mm |
| To fit door width | 900 mm |
| Material | sheet steel |
| Surface finish | zinc-plated |
| Supply includes | assembly parts |
| Fixing your own components | metal screws or self-tapping M5 screws (Rittal note) |
| AX stainless steel installation | in an 800 mm enclosure width |
Product details
A pack of four zinc-plated sheet steel punched sections, 14 x 39 mm, with a mounting flange for your own components and 775 mm between fixing points. Rittal specifies them for 900 mm door widths in VX SE enclosures, and for an 800 mm enclosure width in AX stainless steel enclosures.
Key features
- 14 x 39 mm punched section with mounting flange
- 775 mm between fixing points
- Zinc-plated sheet steel
- Pack of 4, supplied with assembly parts
- Your own components fix to the flange with metal screws or self-tapping M5 screws
Typical applications
Adding mounting positions for your own components inside doors, across the enclosure or in its depth, for example where the mounting plate is already full.
Rittal's accessory lists match this part to AX stainless steel enclosures 1016.000 (800 x 1000 x 300 mm) and 1017.000 (800 x 1200 x 300 mm).
Genuine Rittal product. Add a pack to your cart, or ask us about project quantities.
