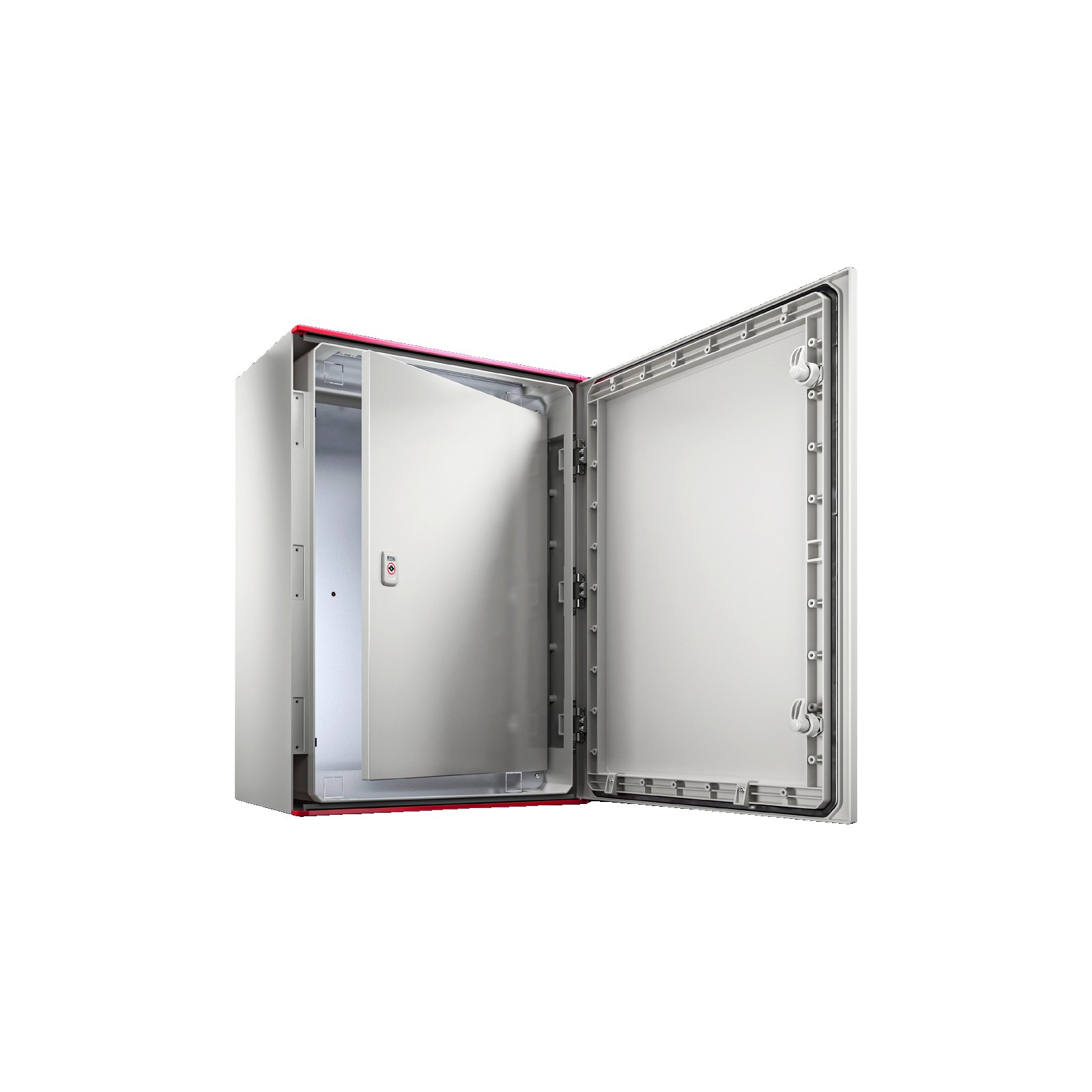

Illustration - our own render; see the datasheet for exact details.
Rittal 1485.768 Inner Door for 600 x 800 mm AX Plastic Enclosures
- Brand:
- Rittal
- Part number:
- 1485.768
- EAN:
- 4028177965850
Sheet steel inner door with its own cam lock for AX plastic enclosures 600 x 800 mm (W x H), mounted on the bosses in the side panels. Rittal part number 1485.768.
- For AX plastic enclosures 600 x 800 mm (W x H)
- Sheet steel door and frame, door in RAL 7035
- Own cam lock with 3 mm double-bit insert
- Opens to 105°
- Mounts on the side-panel bosses
2 in stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 3-5 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Dimensions
| Weight | 5.32 kg |
|---|
Construction
| Colour | RAL 7035 |
|---|---|
| Material | Steel |
Fit
| Fits enclosure family | Rittal AX GRP |
|---|---|
| Fits enclosure width | 600 mm |
| Fits enclosure height | 800 mm |
What's supplied
| Pack quantity | Single item |
|---|
Identification
| Brand | Rittal |
|---|---|
| Part number | 1485.768 |
| EAN | 4028177965850 |
| Range | Rittal AX |
| Type | Internal door |
More technical data
| Suitable for enclosure size (W x H) | 600 x 800 mm |
|---|---|
| To fit enclosure type | AX plastic |
| Material | sheet steel door and door frame; door 1 mm thick |
| Surface finish | door powder-coated, textured paint; frame zinc-plated |
| Colour (door) | RAL 7035 |
| Door opening angle | 105° |
| Installation | on the mounting bosses in the side panels |
| Supply includes | door, cam lock with 3 mm double-bit insert, assembly screws |
Product details
This inner door is made for AX plastic enclosures 600 mm wide and 800 mm high. It mounts on the bosses in the enclosure side panels, behind the main door, and adds a second lockable barrier in front of the installed equipment. Door and frame are sheet steel: the 1 mm door is powder-coated in textured RAL 7035 and the frame is zinc-plated.
Key features
- Sheet steel door (1 mm) on a sheet steel door frame
- Door powder-coated with textured paint in RAL 7035; frame zinc-plated
- Cam lock with 3 mm double-bit insert and assembly screws included
- Lock insert can be exchanged for 27 mm lock inserts, type A
- Door opening angle of 105°
Typical applications
AX plastic enclosures housing control or distribution equipment, where opening the outer door should not, on its own, give access to the equipment. The inner door has its own cam lock, so access to it can be managed separately from the main door.
Rittal's accessory lists match this inner door to AX plastic enclosures 1468.000 and 1469.000 (both 600 x 800 x 300 mm). AX plastic enclosures appear in our range as AX GRP. Other sizes: 1485.744 for 400 x 400 mm and 1485.766 for 600 x 600 mm.
Genuine Rittal product. Add it to your cart, or ask us about project quantities.
