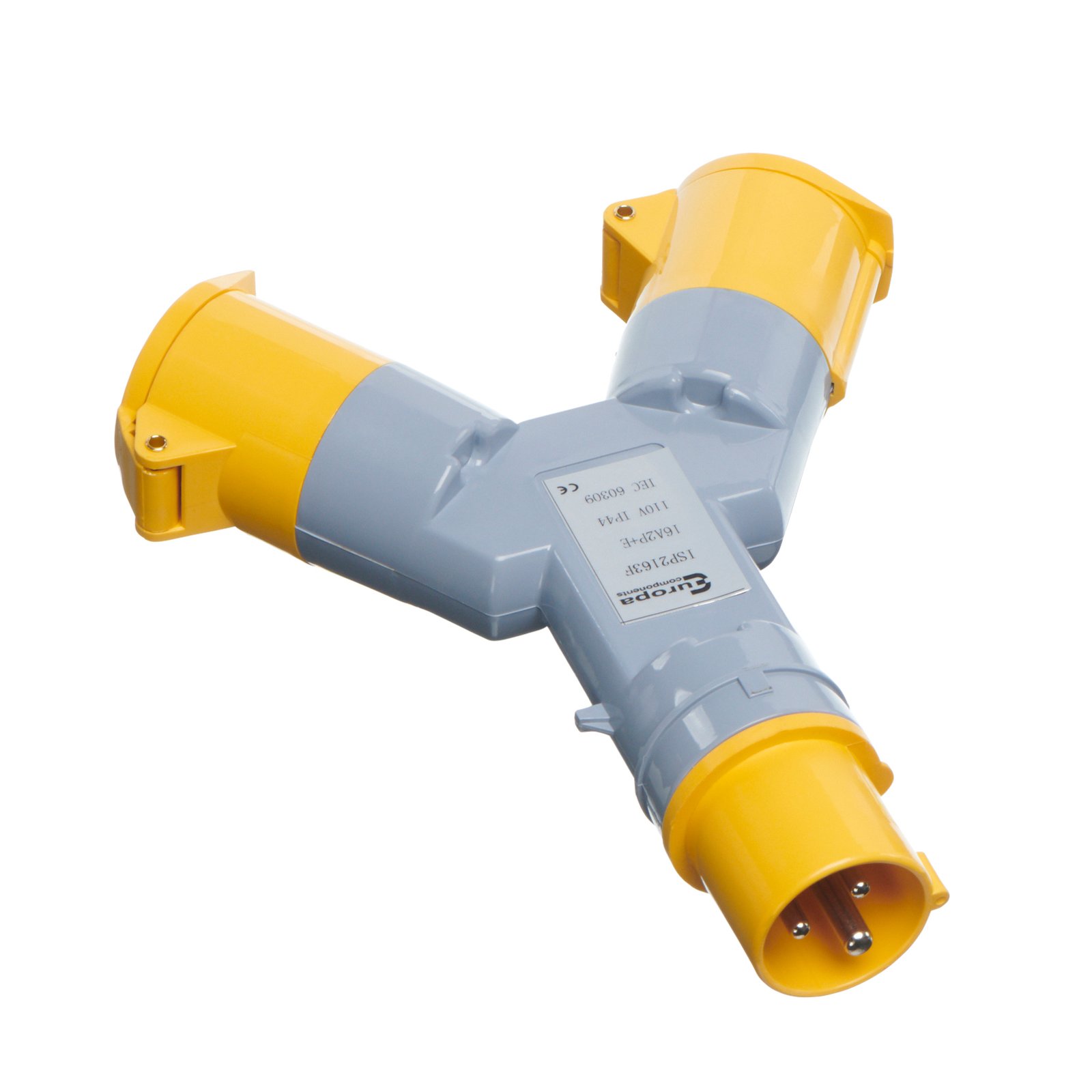

Europa ISP2163F 16A 110V 2P + E 2-Way IP44 Outlet Splitter
- Brand:
- Europa Components
- Part number:
- ISP2163F
- EAN:
- 5056551207066
Europa ISP2163F 2-way outlet splitter, 16A 110V 2P + E, giving 2 IEC 60309 outlets from a single supply. Rated IP44 - protection against solid objects larger than 1mm and against water splashed from any direction - for sheltered, indoor and covered positions.
- 16A 110V 2P + E (3-pin) IEC 60309
- IP44 - splash-proof
- Yellow coded for the 100-130V band
- 2 outlets of the same rating from one supply
- Genuine Europa Components product
Out of stock
UK delivery £9.95 ex VAT, free on orders of £100 ex VAT or more; usually 2-3 working days.
Minimum order £50 ex VAT. All prices exclude VAT, which is added at checkout.
Project quantities or a lead time to check? Request a quote
Specifications
Electrical
| Rated current | 16 A |
|---|---|
| Supply | Single phase |
| Voltage / colour | 110 V yellow |
| Pins | 2P+E (3 pin) |
| Ways | 2-way |
| Earth contact position | 4h |
Protection
| Switched and interlocked | No |
|---|---|
| IP rating | IP44 |
Fit
| Mounting | Cable-mounted |
|---|
Identification
| Brand | Europa Components |
|---|---|
| Part number | ISP2163F |
| EAN | 5056551207066 |
More technical data
| Voltage | 110V, 100-130V band |
|---|---|
| Configuration | 2P + E (3-pin) |
| Outlets | 2, each 16A 110V 2P + E |
| Colour code | yellow |
| Pattern | IEC 60309 (CEE / commando) |
| Manufacturer | Europa Components, part ISP2163F |
Product details
A 2-way 16A 110V outlet splitter from Europa Components, 3-pin and rated splash-proof IP44. It is the tidy alternative to a nest of adaptors: one supply in, 2 correctly keyed IEC 60309 outlets out, all at the same rating and voltage band.
Key features
- Rated 16A at 110V, 2P + E (3-pin), to the IEC 60309 industrial connector pattern
- IP44 splash-proof rating for sheltered, indoor and covered positions
- Yellow colour coding for the 100-130V band, so it cannot be mated with a connector from another voltage range
- 2 outlets from one supply, every one to the same 16A 110V pin pattern
- Genuine Europa Components stock item, priced for trade buyers
Typical applications
Work at this rating typically means 110V hand tools, site lighting, small breakers and other reduced low voltage equipment fed from a site transformer. IP44 suits sheltered positions - workshops, plant rooms, covered site areas - where splashing rather than standing water is the risk. Remember that a splitter multiplies outlets, not capacity: everything drawn across the 2 outlets comes through one 16A supply and the device protecting it, so add up the connected loads first.
Compliance
The IEC 60309 pattern (BS EN 60309-2 in the UK) fixes the pin positions and the yellow coding for the 100-130V band, and that keying is what stops a 16A 110V connector being mated with another rating or voltage range. IP44 means protection against solid objects larger than 1mm and against water splashed from any direction. Overcurrent protection is not part of the connector: the circuit feeding it must be protected at the board, with any RCD protection BS 7671 calls for provided upstream.
Switchgear Direct supplies the ISP2163F at trade prices with fast UK dispatch.
